Validation Output is a part of the ‘SCENARIO STUDIO’ module. This category has the details of all Validation scenarios especially the summaries in the form of a tabular grid that includes different column names such as Type (Includes scenario type-Validation and BDV), Scenario Name (details of individual Validation scenario name), Executed By (User executed name details), Executed On (Date and time of Validation execution), Duration (Validation Execution time duration), Dataset Count (Includes validation dataset count), Status (Includes Passed, Failed or Errored statuses).
To learn about Validation Output, let us walk through the below procedure:

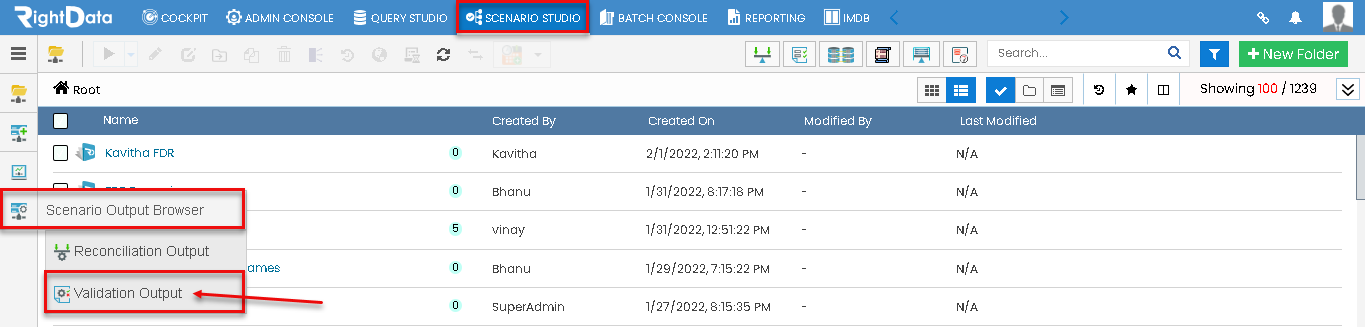

- Click the ‘SCENARIO STUDIO’ module.
- Hover on the ‘Scenario Output Browser’ snippet.
- Select and click the ‘Validation Output’ option.
Path: SCENARIO STUDIO > Scenario Output Browser > Validation Output
- The ‘Validation Summary’ session page is displayed.

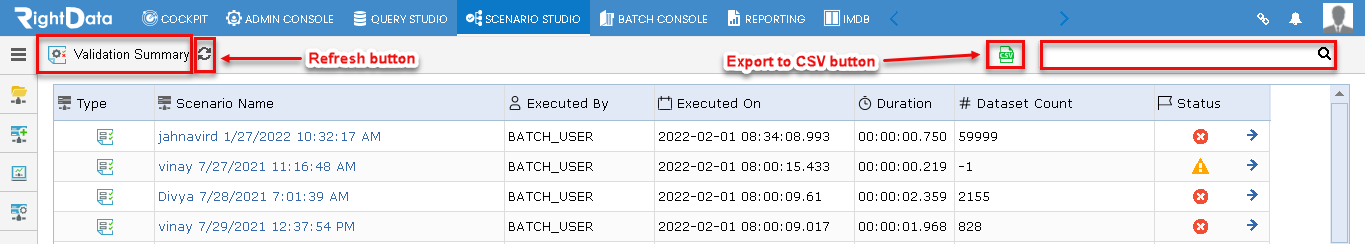

- A ‘Refresh’ button is used to refresh the ‘Validation Summary’ session page.
- An ‘Export to CSV’ button is used to download the ‘Validation Summary’ tabular grid contents into a CSV file.
- A ‘Search’ box field is used to search for any Validation Scenarios.

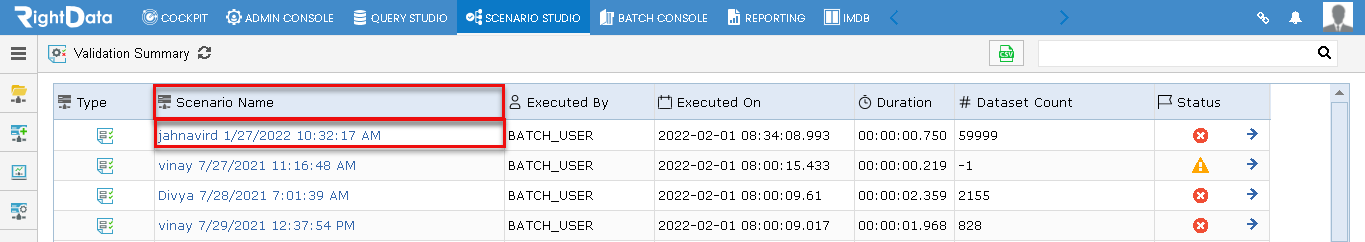

- Let’s suppose click the first validation scenario (jahnavird 1/27/2022 10:32:17 AM) from the ‘Scenario Name’ column.

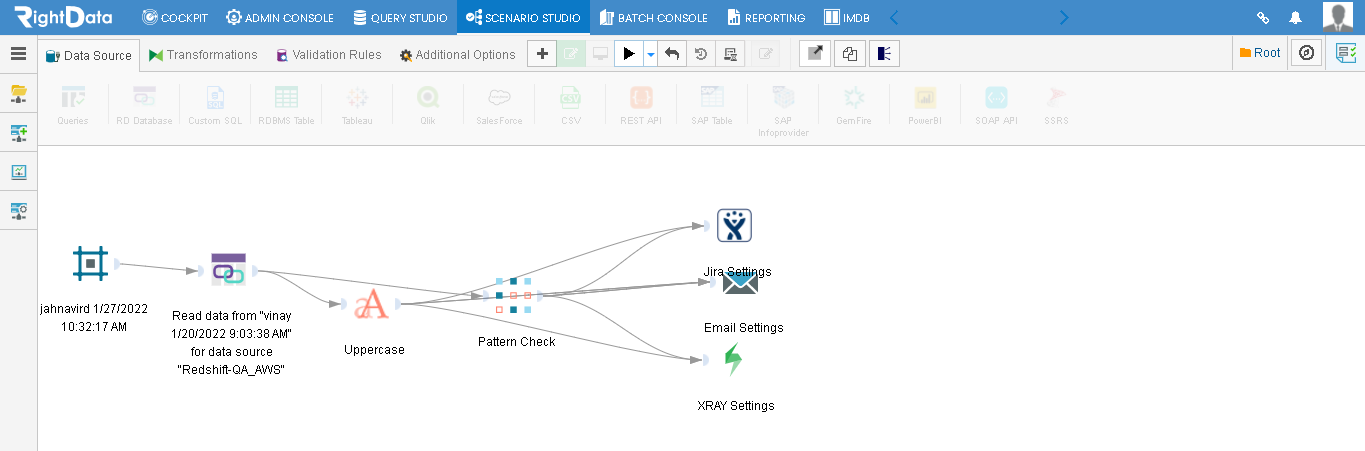

- The user is navigated to that particular scenario (jahnavird 1/27/2022 10:32:17 AM) in create and edit mode.
Note: Close this window and navigate back to the ‘Validation Summary’ session page.

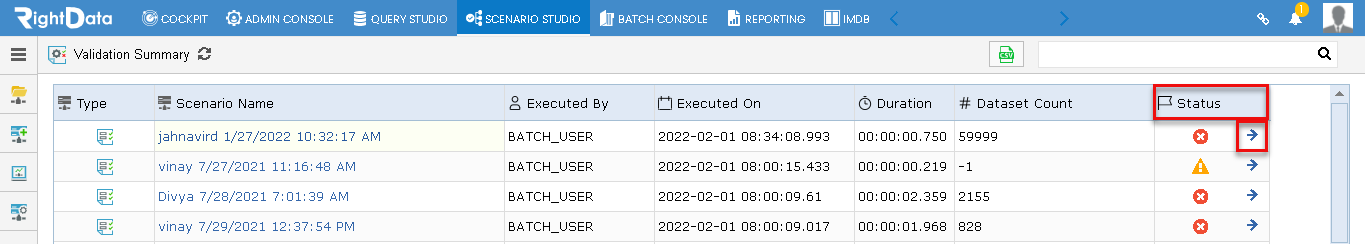

- Click the blue-colored arrow mark from the ‘Status’ column.

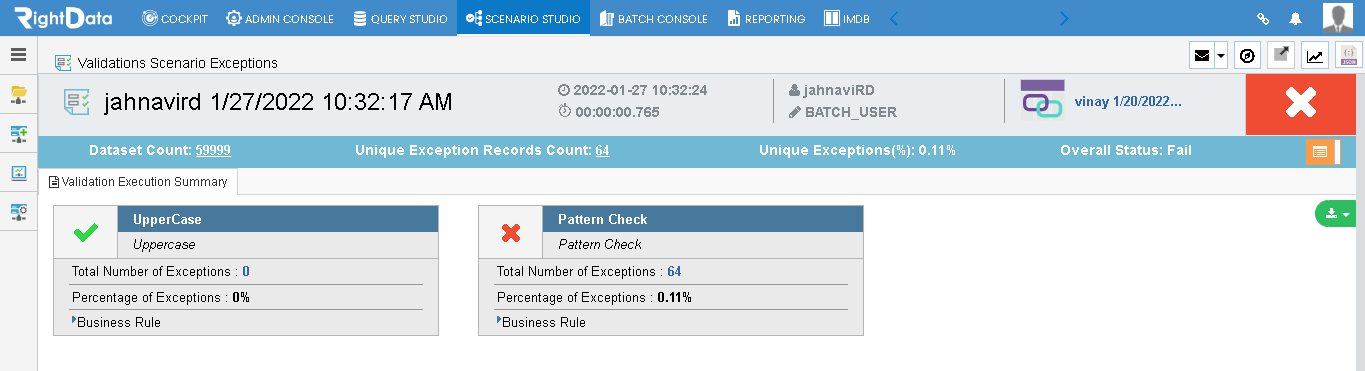

- The user is navigated to the ‘Validations Scenario Exceptions’ session page.
