TDR (Technical Data Reconciliation) Session Monitor is a part of the SCENARIO STUDIO module. This session gives the details of all the TDR Scenarios In-Progress, Completed, Errored, and ALL Sessions status.
To learn about TDR Session Monitor, let us walk through the below procedure:

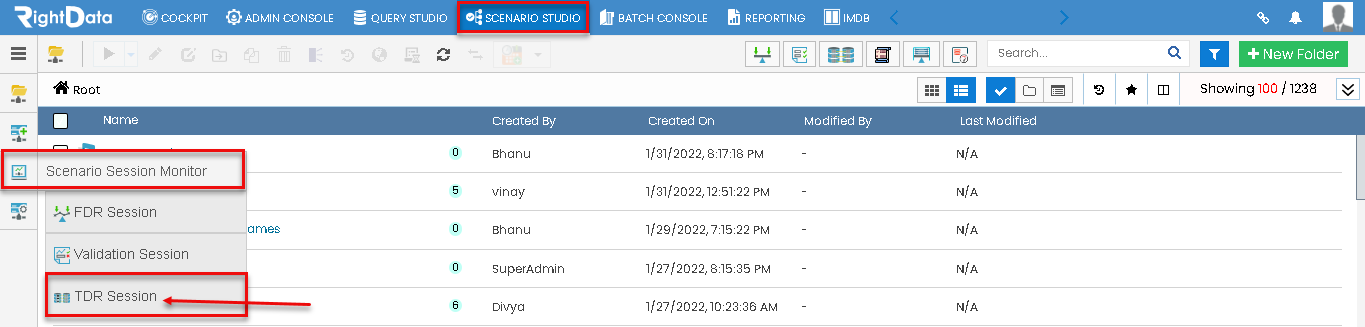

- Click the ‘SCENARIO STUDIO’ module.
- Hover on the ‘Scenario Session Monitor’ snippet.
- Select and click the ‘TDR Session’ option.
Path: SCENARIO STUDIO > Scenario Session Monitor > TDR Session

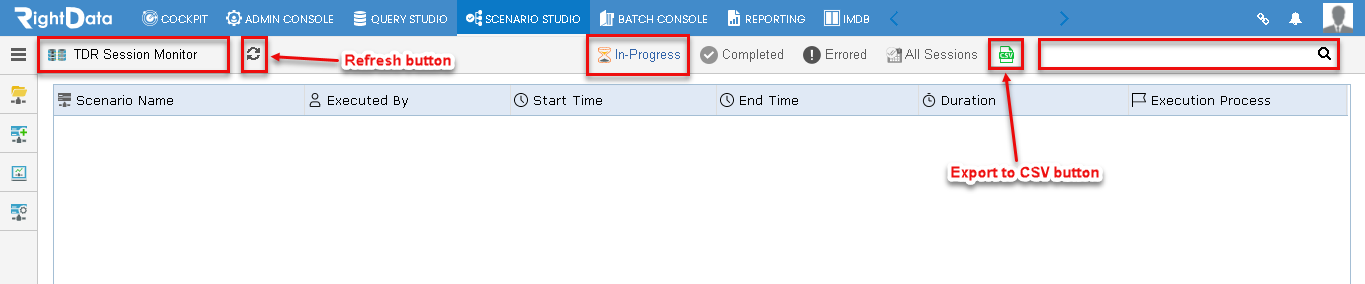

- The ‘TDR Session Monitor’ session page is displayed.
- A ‘Refresh’ button is used to refresh the ‘TDR Session Monitor’ session page.
- An ‘Export to CSV’ button is used to download the ‘TDR Session Monitor’ tabular grid contents into a CSV file.
- A ‘Search’ box field is used to search for any TDR Scenario.
Note: By default, the ‘In-Progress’ session is selected and displayed.

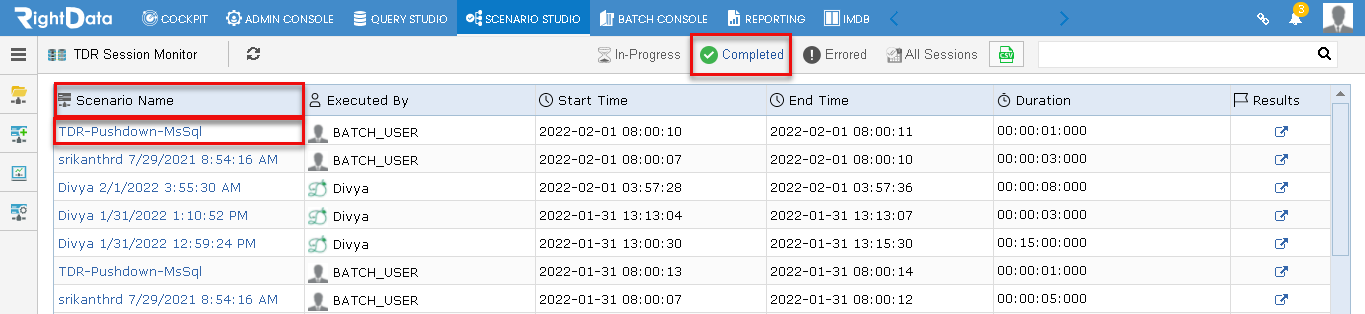

- Clicking the ‘Completed’ session displays the completed TDR scenarios.
- Let’s suppose click the first TDR scenario (TDR-Pushdown-MsSql).

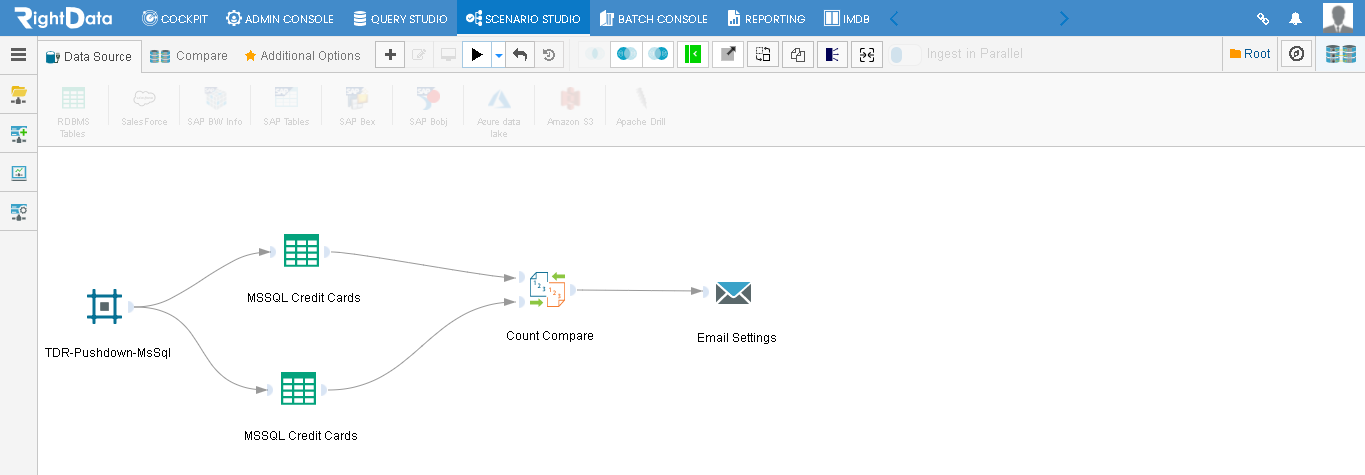

- The user is navigated to that particular TDR scenario in create and edit mode.
Note: Close this window and navigate back to the ‘TDR Session Monitor’ page.

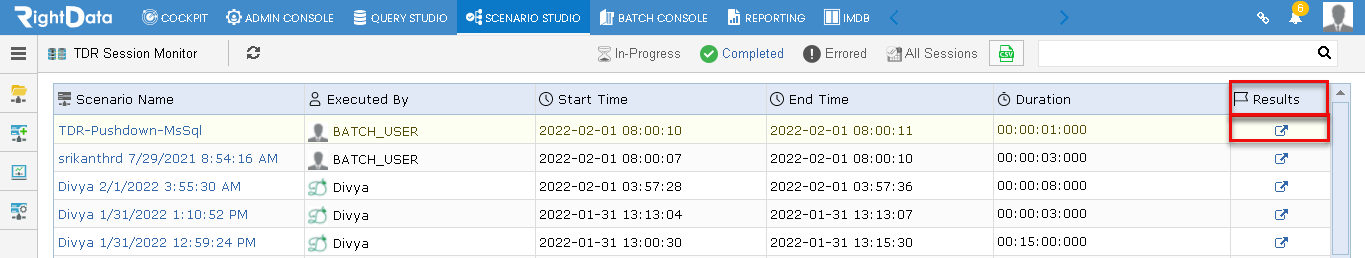

- Now, click the pointing arrow from the ‘Results’ column.

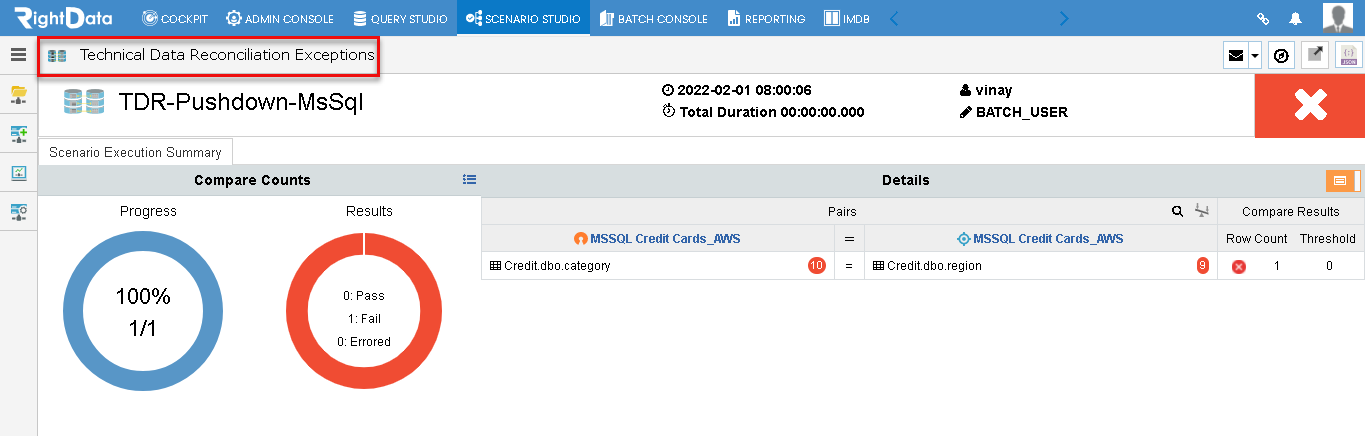

- The user is navigated to the ‘Technical Data Reconciliation Exceptions’ page of that particular TDR scenario.
Note: Close this window and navigate back to the ‘TDR Session Monitor’ page.

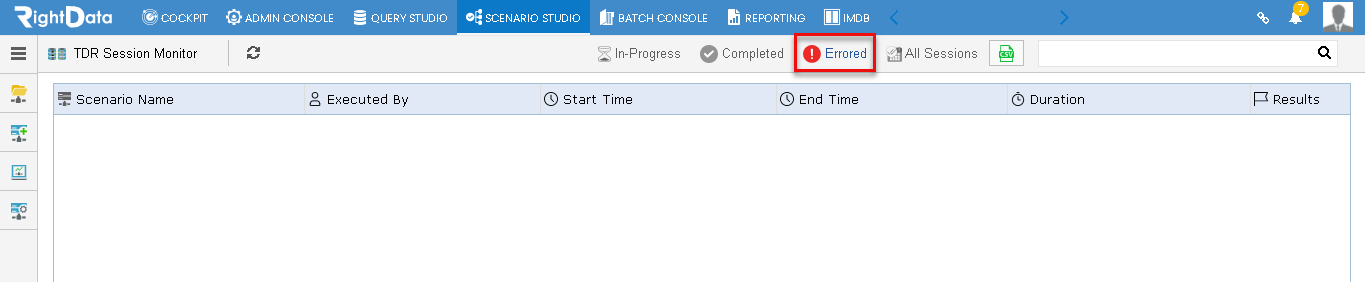

- Clicking the ‘Errored’ session displays the Errored TDR scenarios.

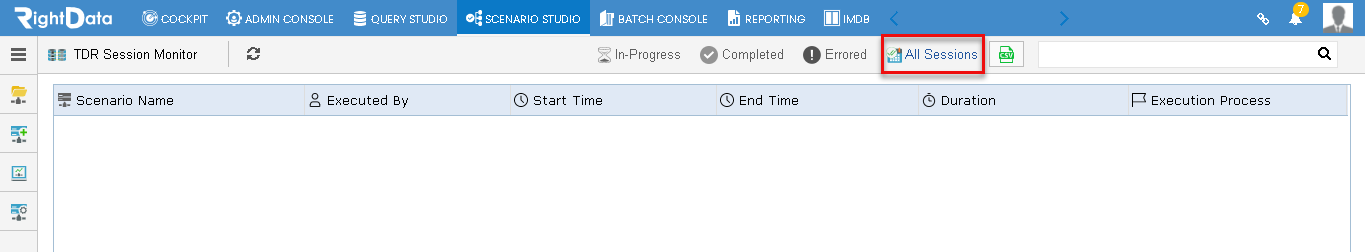

- Clicking the ‘All Sessions’ session displays the All Sessions TDR scenarios.
