Cockpit — Database Metrics Tile
Monitor Data Trust metadata database storage utilization and drill into Data Management from the Cockpit dashboard.
Overview
The Datastore DB Utilization tile (also referred to as the Database Metrics tile) displays the current storage utilization of the Data Trust metadata database. It shows the total allocated space, used space, and a detailed per-category breakdown of what is consuming storage.
This tile is visible to Admin Pro-Users only. It supports Bar Chart, Pie Chart, and Tabular views, and provides drill-down access to the Data Management page in the Admin Console for retention and cleanup actions.
Prerequisites
- You are logged in to Data Trust with an Admin Pro-User role.

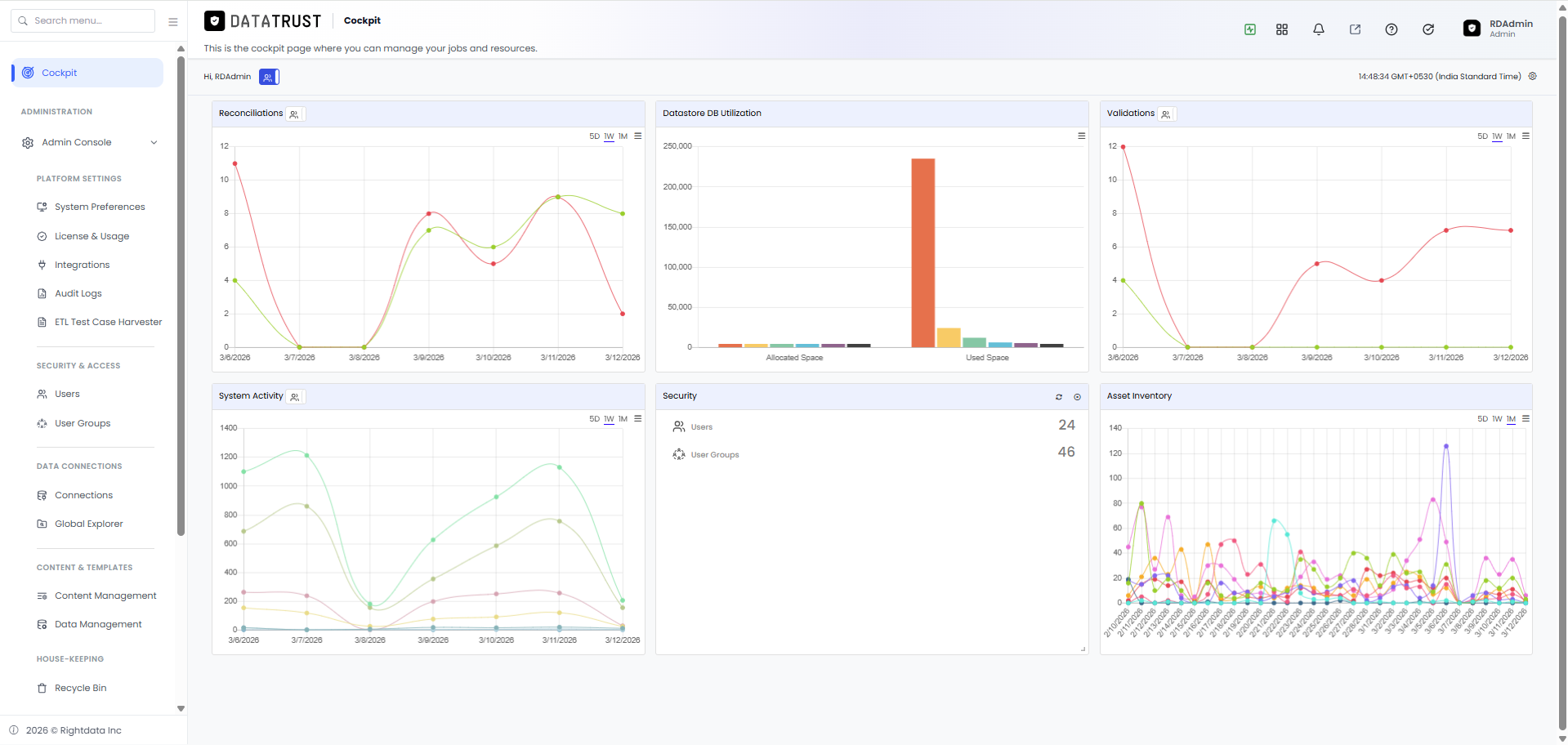

Figure 1: Data Trust Cockpit — Datastore DB Utilization tile (Database Metrics) visible in the dashboard
The Datastore DB Utilization tile shows how much of the Data Trust metadata database is in use, broken down by category. Only Admin Pro-Users see this tile — it helps you catch storage issues before the database runs out of space.
Accessing the Database Metrics Tile
Path: Data Trust › Cockpit- Log in to Data Trust with an Admin Pro-User account.
The Cockpit dashboard loads. The Datastore DB Utilization tile appears in the dashboard, displaying a bar chart of database storage usage by category.
Refreshing the Tile
Figure 2: Datastore DB Utilization tile — Refresh icon in the action bar
The Refresh icon reloads the current storage utilization numbers from the database server. Use it after running a data purge to confirm that the freed space is reflected in the tile's counts.
- Click the Refresh icon (↻) to reload the latest database storage data.
Chart Legend

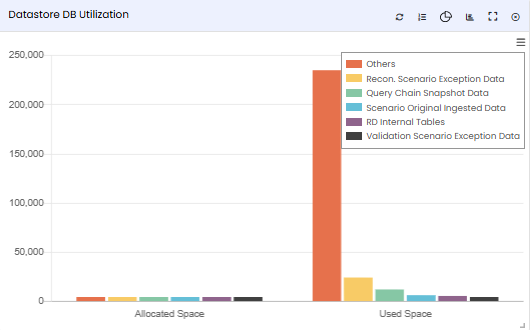

Figure 3: Datastore DB Utilization tile — chart legend showing storage categories
The legend maps each colored bar or slice to a storage category such as Reconciliation Exception Data, Validation Exception Data, and Query Chain Snapshot Data. Use it to identify which category in the chart corresponds to the storage area you want to investigate.

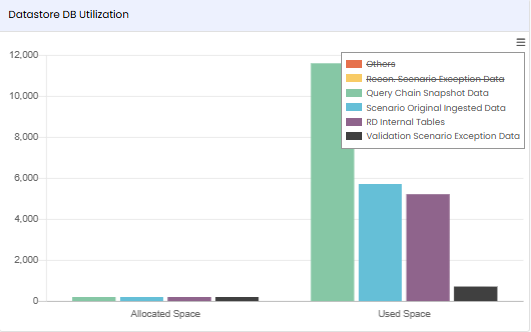

Figure 4: Datastore DB Utilization tile — some legend items removed (struck through) to focus on selected categories
Striking through legend items (shown here with some categories hidden) narrows the chart to only the storage categories you want to compare. This is useful when a single large category dominates the scale and obscures the size of smaller categories.
- Click the Legend icon to display the storage-category legend.
- Click any legend entry to show or hide that category in the chart.
Tabular View
Figure 5: Datastore DB Utilization tile — Tabular view listing each storage category and its size
Tabular view lists every storage category with its current size. Use this view to quickly identify which category is consuming the most database space — the largest value in the list is your primary target for retention policy adjustments.
- Click the Tabular icon to switch to a table listing each storage
category with its size value.
The table lists categories such as: Reconciliation Exception Data, Validation Scenario Exception Data, Query Chain Snapshot Data, and others, each with their current storage footprint.
Pie Chart View
Figure 6: Datastore DB Utilization tile — Pie Chart view showing storage distribution by category
Pie Chart view shows each storage category as a proportional slice of the total used space. Categories consuming the most storage appear as the largest slices, making it easy to prioritize which retention policies to adjust first.
- Click the Pie Chart icon to switch to pie chart mode.
The bar chart is replaced by a pie chart showing each storage category as a proportional segment.
Showing Database Free Space
Figure 7: Datastore DB Utilization tile — DB Free option toggled to show remaining free space
Toggling the DB Free option adds the remaining available database space as an additional segment in the chart. This gives you a complete picture of allocated versus used versus free space, so you can judge how much headroom remains before action is needed.
- In the tile options (hamburger / settings icon), toggle the DB Free option
to include the remaining free space as a segment in the chart.
The chart adds a "Free" segment, giving you a complete picture of allocated vs. used vs. free storage.
Bar Chart View
Figure 8: Datastore DB Utilization tile — Bar Chart view comparing Allocated Space and Used Space side by side
The default Bar Chart places an Allocated Space bar and a Used Space bar side by side for each storage category. When a Used Space bar nearly equals the Allocated Space bar in a category, that category is close to its storage limit and may need a retention policy change.
- The default view is a Bar Chart comparing Allocated Space and Used Space side by side for each storage category.
Hovering for Storage Details

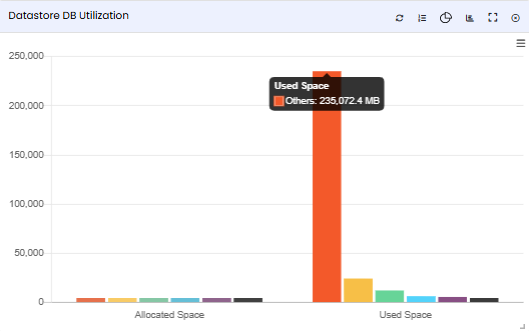

Figure 9: Datastore DB Utilization tile — hovering over the Allocated Space bar shows a tooltip with the exact value
Hovering over any bar in the chart reveals a tooltip with the precise storage amount for that category and bar type (Allocated or Used). Use this to confirm exact figures when planning retention policy changes or reporting storage usage.
- Hover over any bar in the chart.
A tooltip appears showing the exact allocated or used storage amount for that category.
Drilling Down to Data Management
Clicking on a storage category in the tabular or pie chart view navigates to the Data Management page in the Admin Console, where you can configure retention policies and purge historical data to reclaim space.

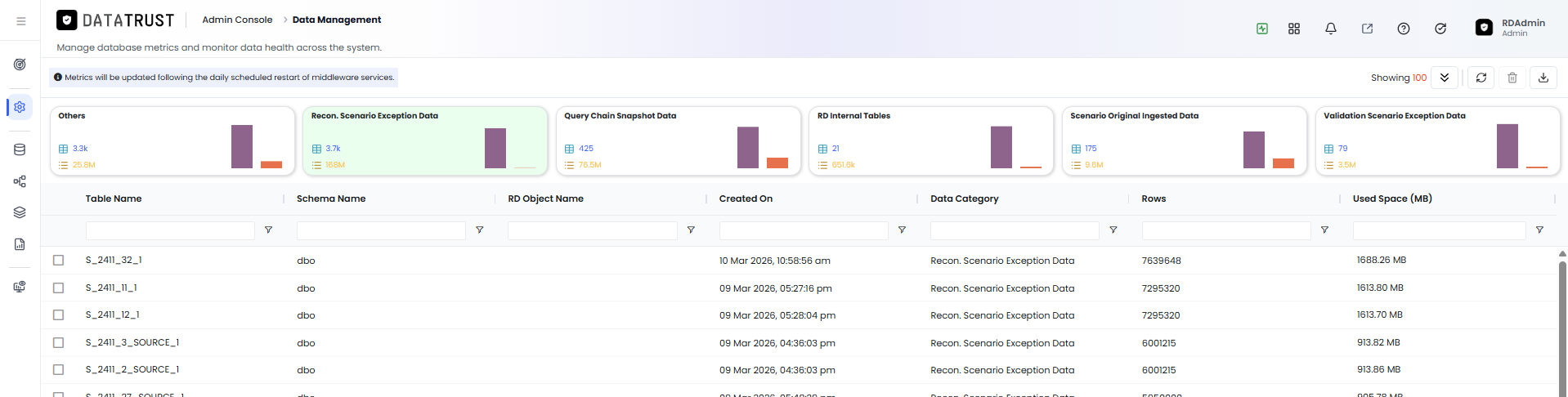

Figure 10: Data Management page — Reconciliation Exception Data storage management options
Clicking through to the Data Management page for Reconciliation Exception Data lets you set retention periods or manually purge historical exception records. Reducing the retention window is the most direct way to reclaim space consumed by this category.
Figure 11: Data Management page — Query Chain Snapshot Data storage management options
The Data Management page for Query Chain Snapshot Data shows how long snapshot data is retained and provides options to adjust that period or purge records immediately. Snapshot data can accumulate quickly on busy platforms.
Figure 12: Data Management page — Validation Scenario Exception Data storage management options
The Data Management page for Validation Scenario Exception Data controls how long validation exceptions are stored. If this category is consuming significant space, reducing its retention period is usually safe once exception data has been reviewed and resolved.
- Click any category row in the Tabular view (or any segment in the Pie Chart) to open
the Data Management page for that category.
The Admin Console Data Management page opens, filtered to the selected data category. You can review retention settings and manually purge historical records.
Expanding the Tile

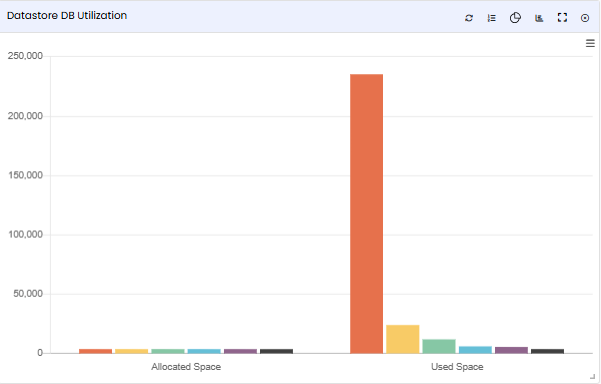

Figure 13: Datastore DB Utilization tile — Expand icon to open the full-width view
The Expand icon opens the Database Metrics tile in full-width mode. Use this when comparing many storage categories side by side — the extra width prevents bar labels from overlapping and makes proportions easier to judge.

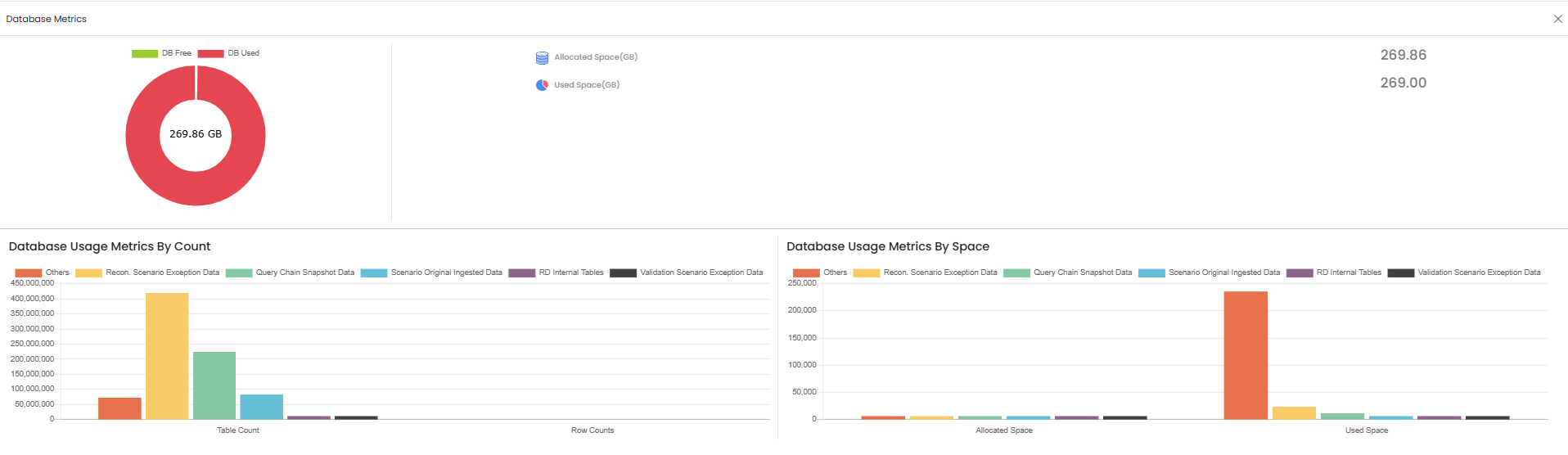

Figure 14: Datastore DB Utilization tile — Expanded View with full-width bar chart
Expanded Bar Chart view gives you a wide canvas to compare Allocated versus Used space bars for every storage category at once. This is the most efficient way to identify which categories are approaching their storage limits.
- Click the Expand icon (❐) to view the tile in full-width mode.
The tile expands, making it easier to compare storage categories across a wide bar chart.
Pie Chart in Expanded View

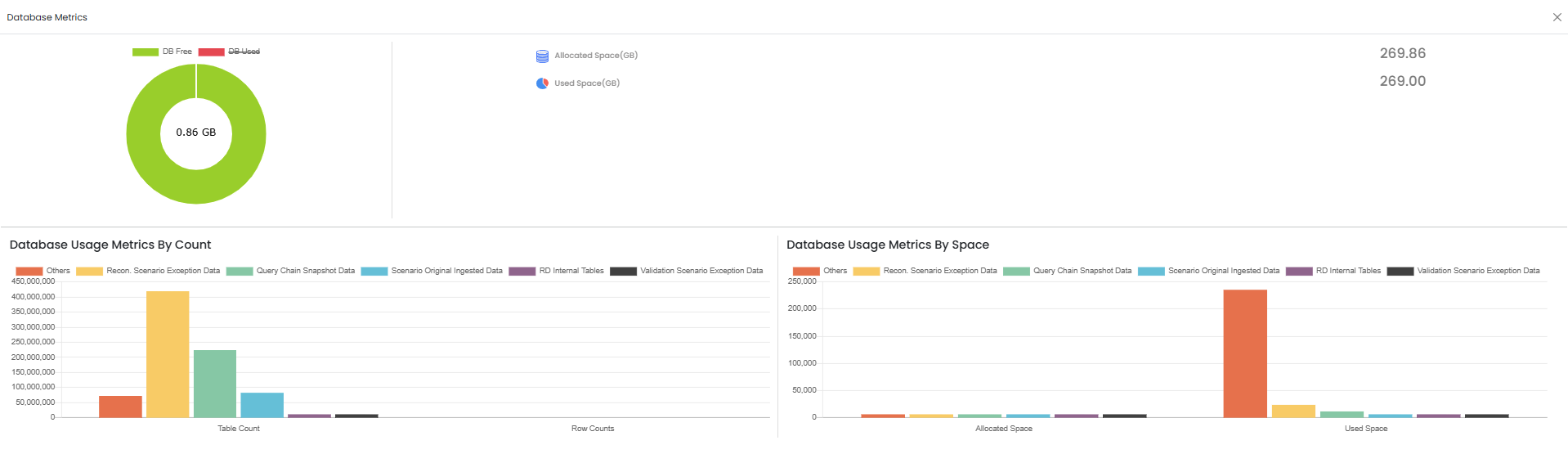

Figure 15: Datastore DB Utilization — Pie Chart view in the Expanded mode
You can switch to Pie Chart in expanded mode for a proportional view with more room for category labels. The wider display prevents label overlapping, making it easier to read the names of smaller storage categories.
You can switch between Bar Chart and Pie Chart in the expanded view just as you would in the standard tile view.
Collapsing the Tile
Figure 16: Datastore DB Utilization tile — Close button to collapse back to the standard Cockpit view
The Close (X) button collapses the Database Metrics tile from full-width back to its standard tile size, restoring the full multi-tile Cockpit dashboard so all other tiles become visible again.
- Click the Close (X) icon to exit the expanded view and return to the standard Cockpit dashboard.
