Configure data quality attributes on FDR

Data Quality Dimensions reports the data quality metrics data by risk category, data domain hierarchy and by data quality dimensions with drilldown capability. Let’s configure data quality attributes on FDR.

To learn about FDR, let us walk through the below procedure:

Click the SCENARIO STUDIO module.
Let’s select and checkbox any scenario that has exceptions.

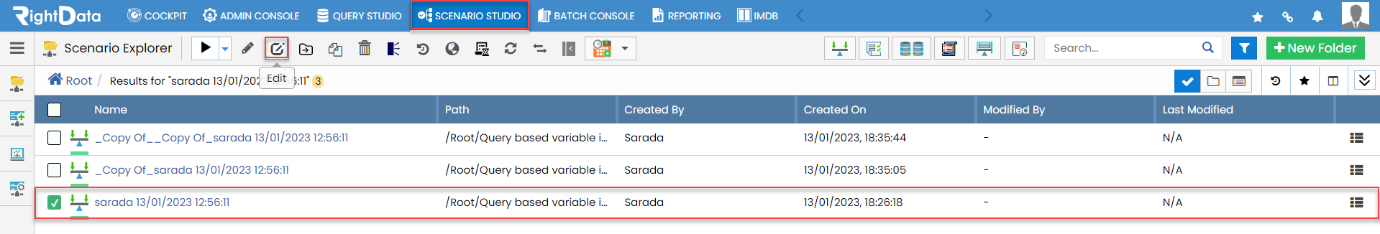

Click on the Edit icon.

This action navigates to the specific FDR scenario in edit mode.

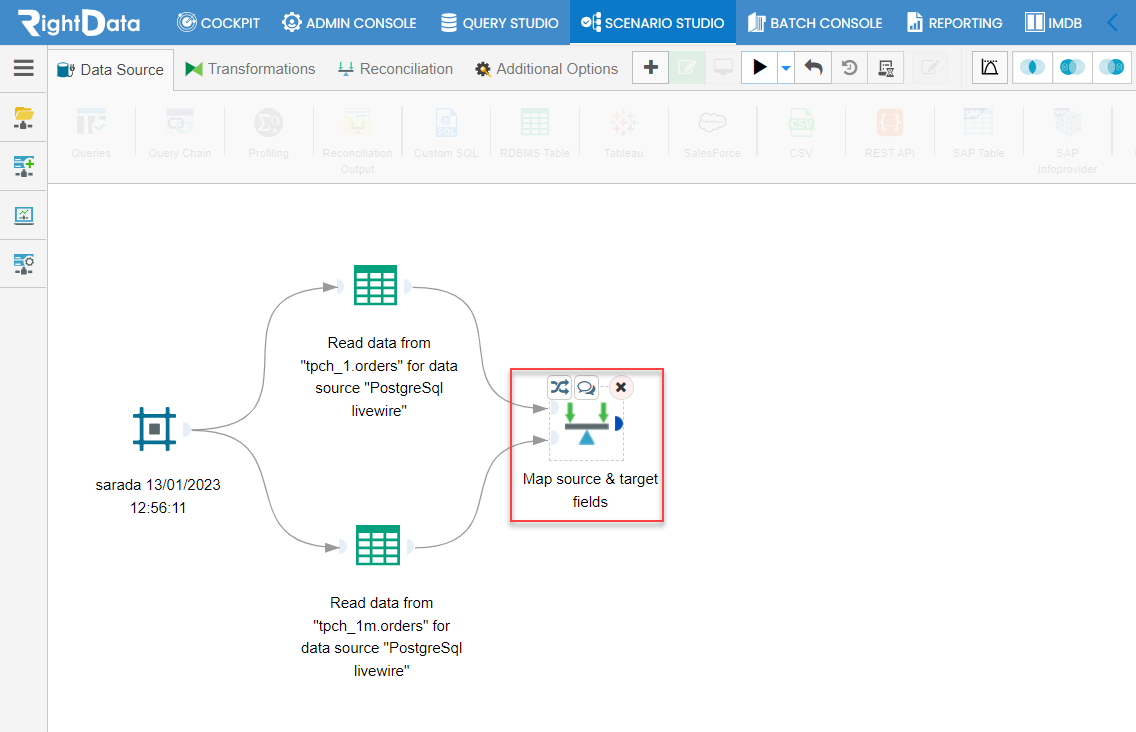

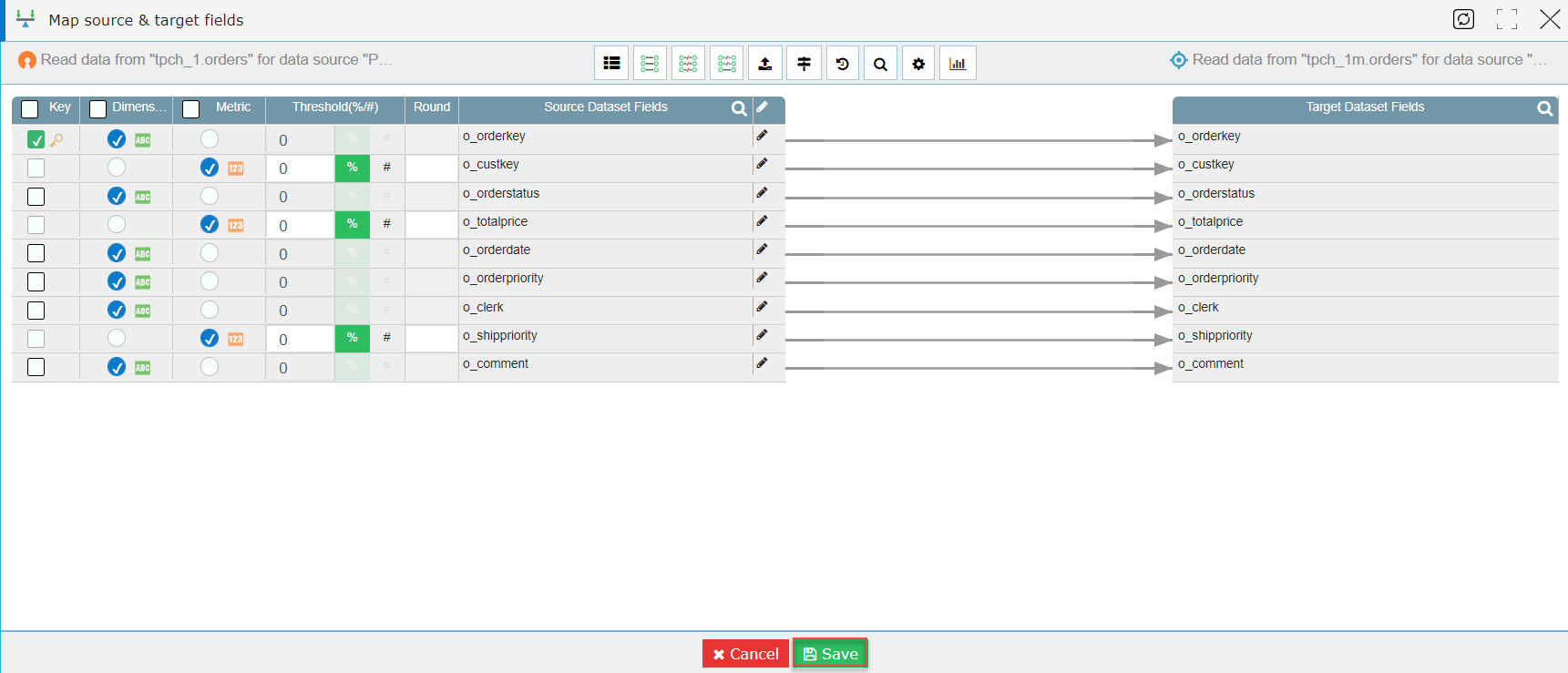

Let’s double tap the Map Source & target fields widget.

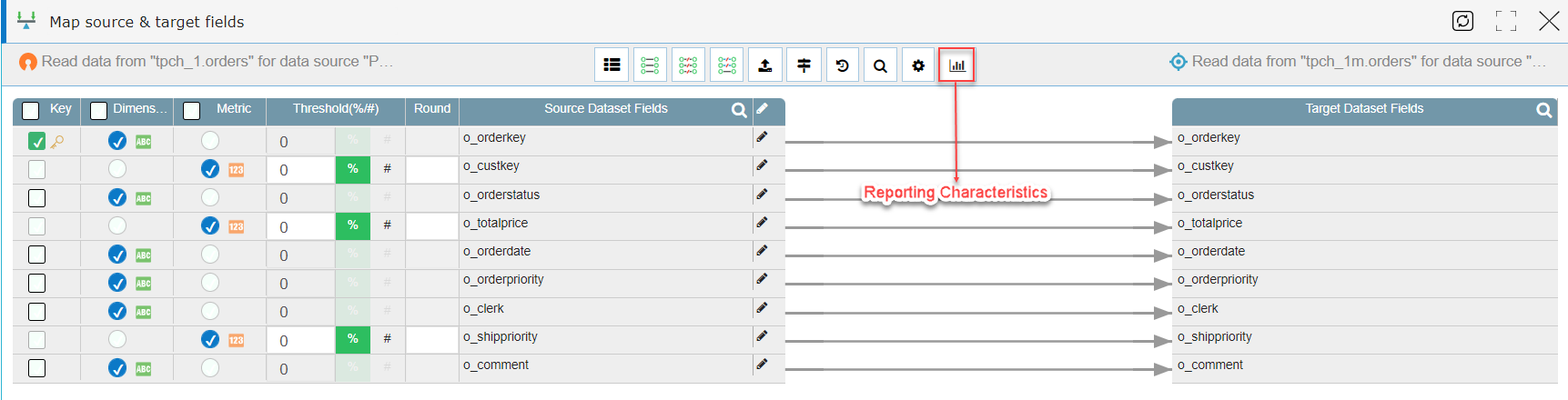

Here, let’s click on the Reporting Characteristics icon.

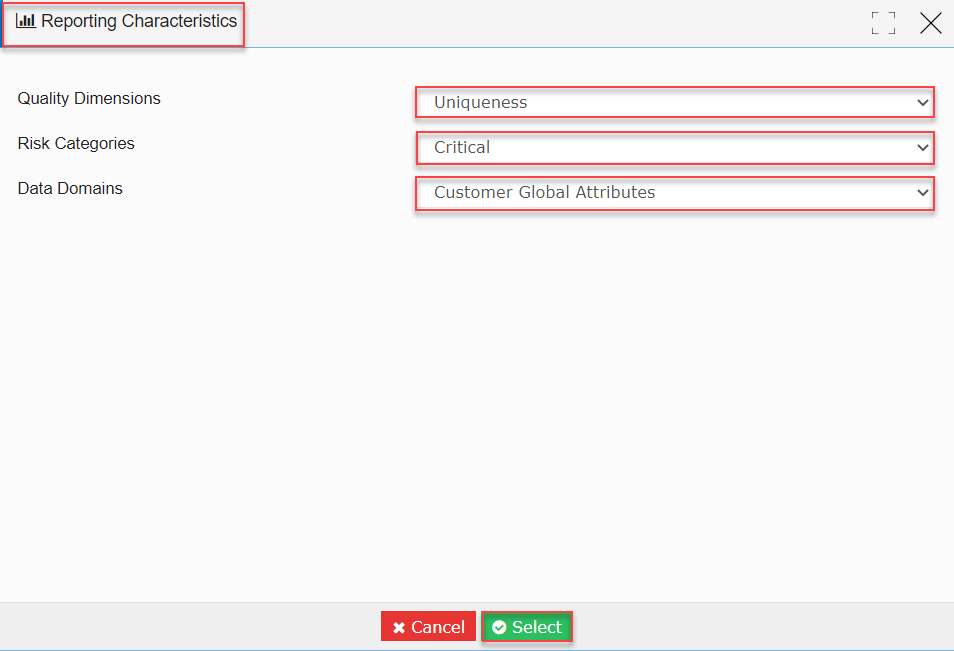

A Reporting Characteristics pop-up window is displayed.
Let’s select the required Quality Dimensions, Risk Categories, and Data Domains from the drop-down lists.
Click on Select to save the Reporting Characteristics.

Click on Save button to save the Map Source & target fields widget.

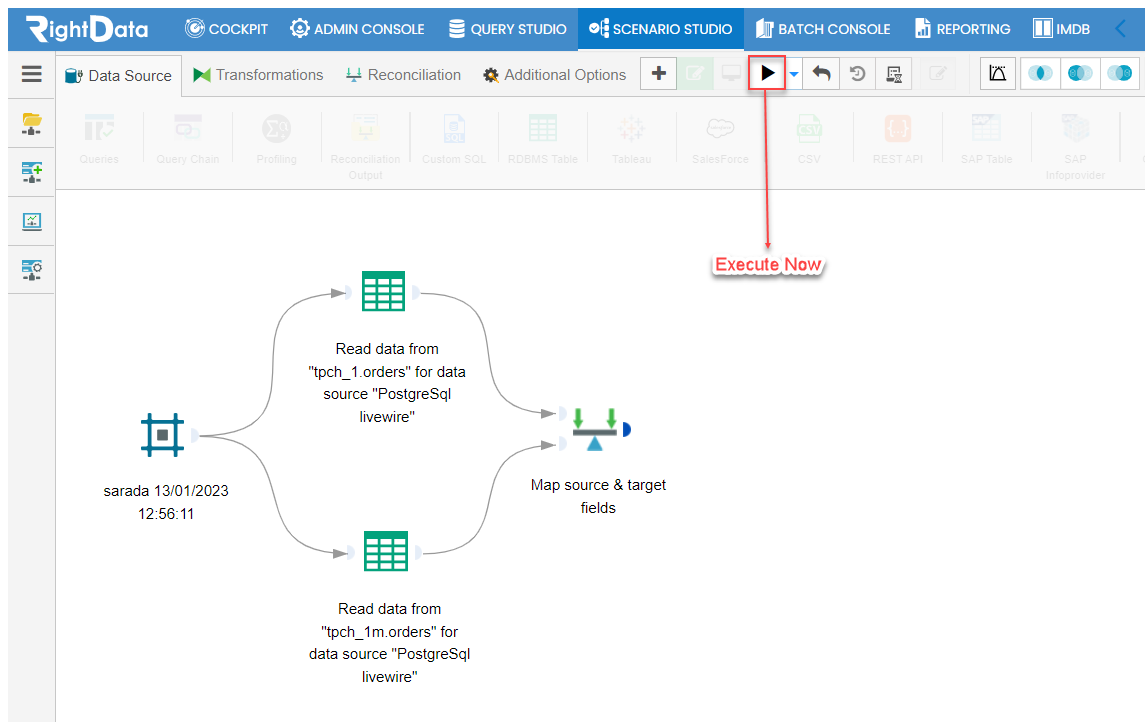

Click on the Execute Now button.

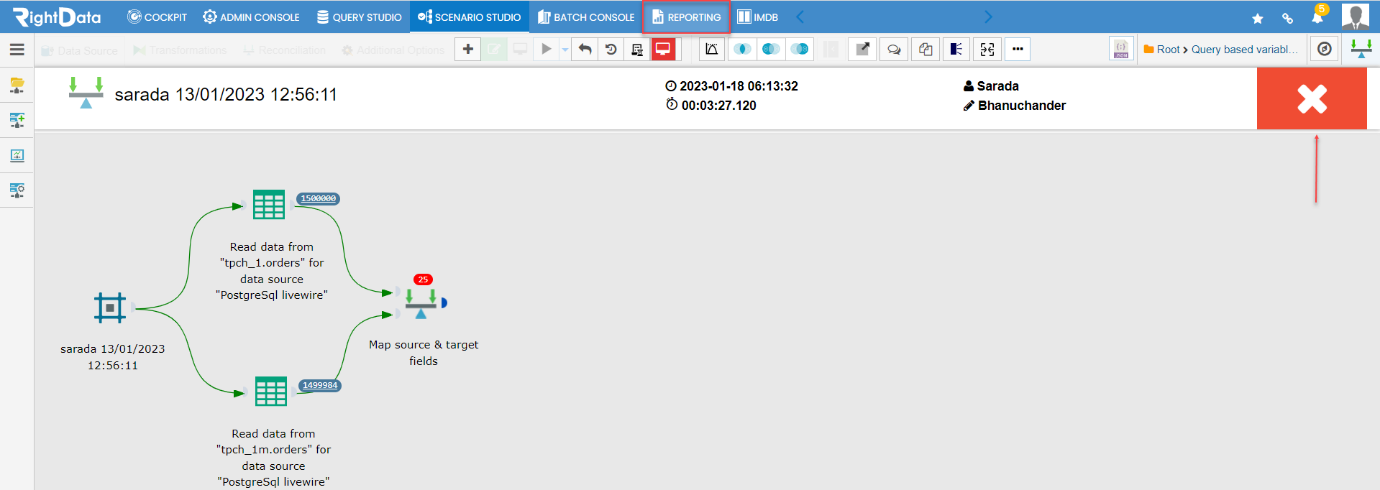

This action executes the FDR scenario.
Click on the REPORTING MODULE module.

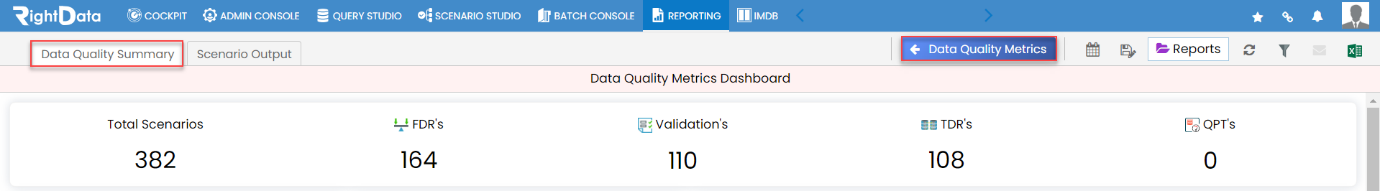

A Data Quality Metrics dashboard is displayed.
Click on the Data Quality Metrics button.

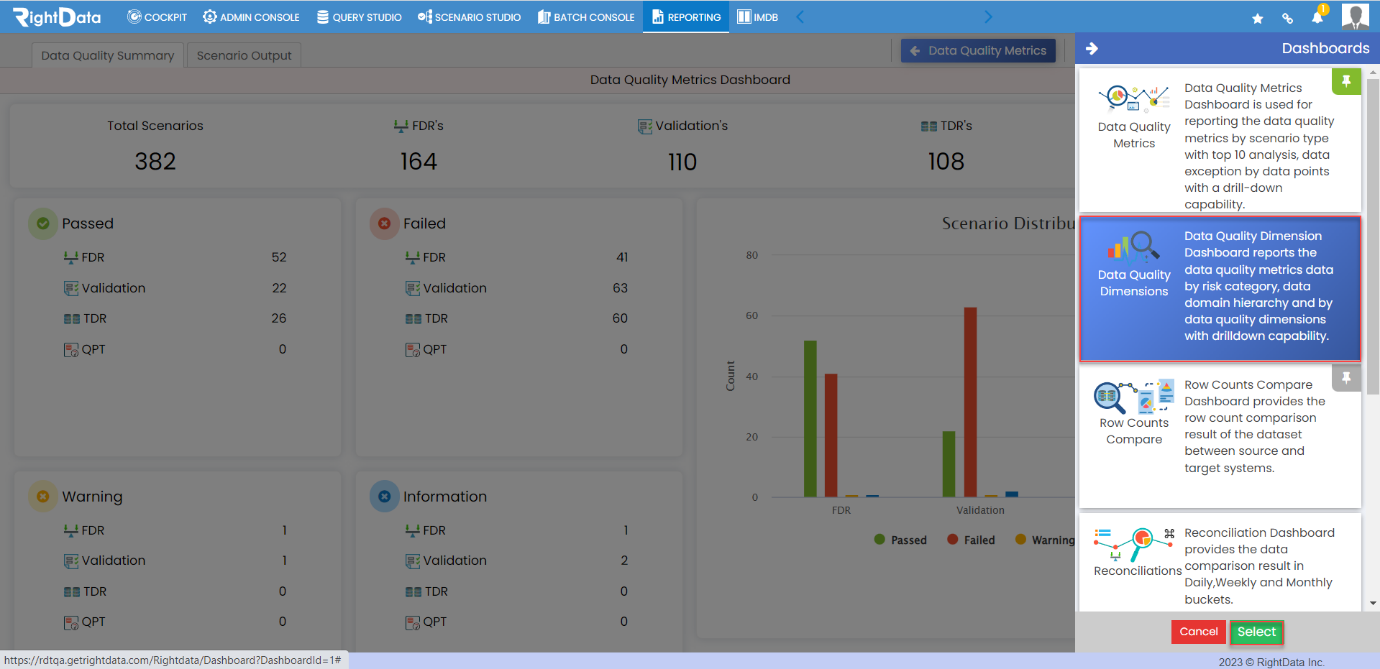

A Dashboards slide screen is displayed.
Choose Data Quality Dimensions option.
Click on Select to load the selected dashboard.

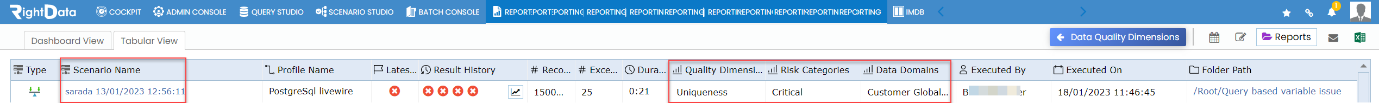

Click on the Tabular View option.

Here, we will notify the data quality attributes configured to the FDR scenario.
