Create new FDR(s) based on TDR configuration

The user can now create individual FDR(s) from a TDR result for detailed comparison.

To learn more, let us walk through the below procedure:

• Click the ‘SCENARIO STUDIO’ module.
• The user is navigated to the ‘Scenario Explorer’ session page.

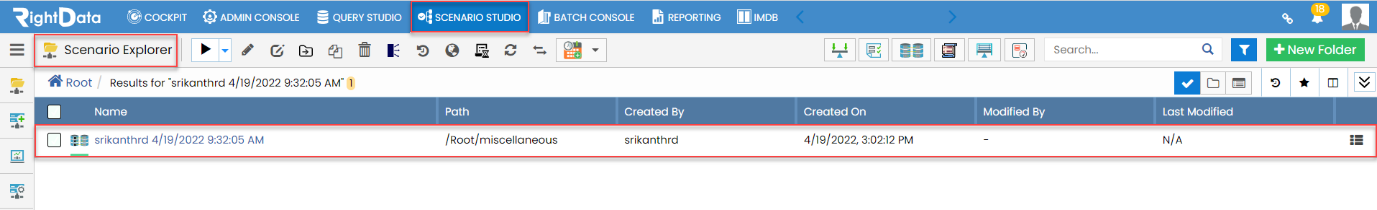

• Let’s select a TDR scenario (srikanthrd 4/19/2022 9:32:05 AM).

Note: Click here to go through the user guide on TDR.

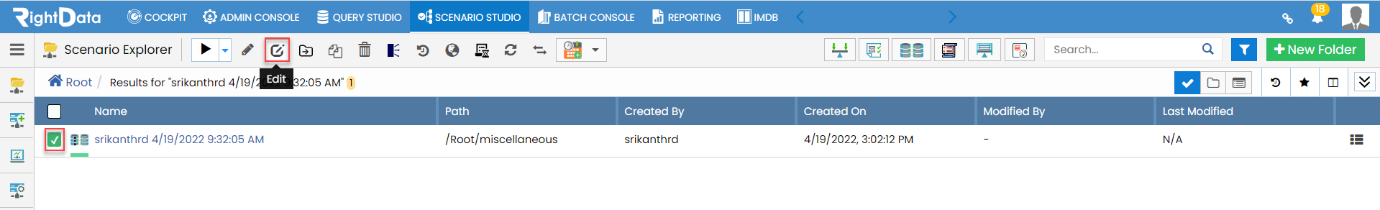

• Now, checkbox the TDR scenario (srikanthrd 4/19/2022 9:32:05 AM) and click the ‘Edit’ button.

• This action navigates the user to the TDR session (srikanthrd 4/19/2022 9:32:05 AM) in create and edit mode.

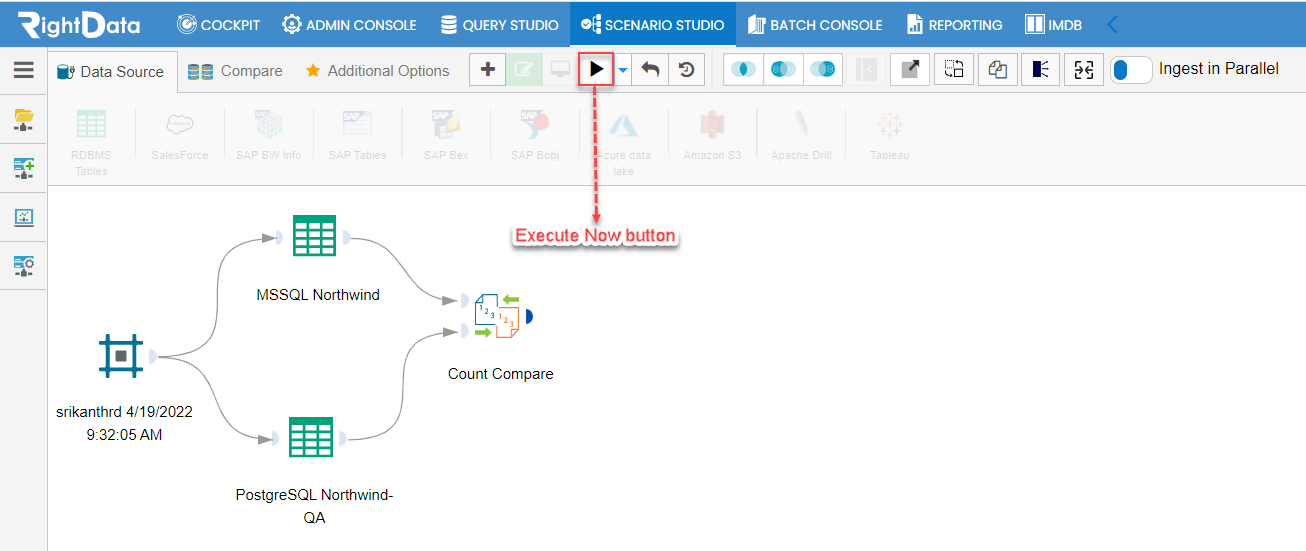

• Click the ‘Execute Now’ button.

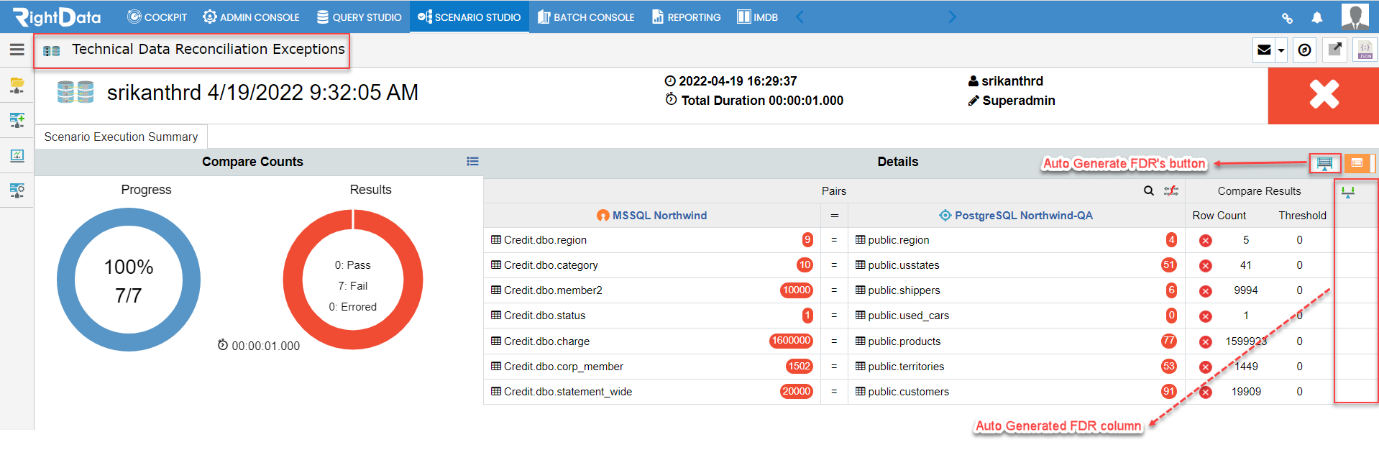

• This action navigates the user to the ‘Technical Data Reconciliation Exceptions’ session page.

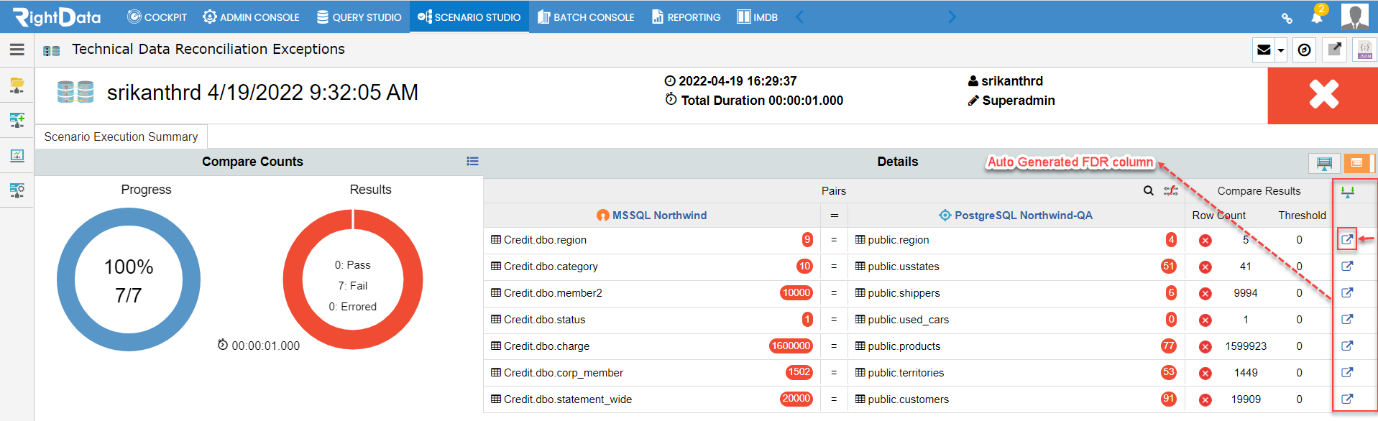

• At the extreme right corner of the page, the user notices an ‘Auto Generated FDR’ column added newly.
• Now, let’s click the ‘Auto Generate FDR’s’ button.

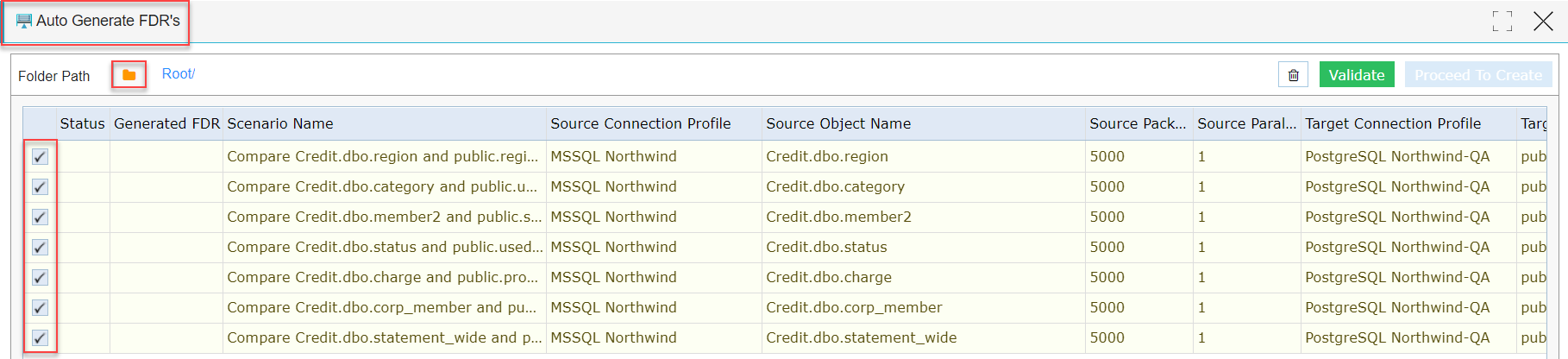

• An ‘Auto Generate FDR’s’ pop-up window is displayed.

Note: All the ‘Generated FDR Scenario Names’ are selected and checked by default.

• Let’s click the ‘Folder Path’ button.

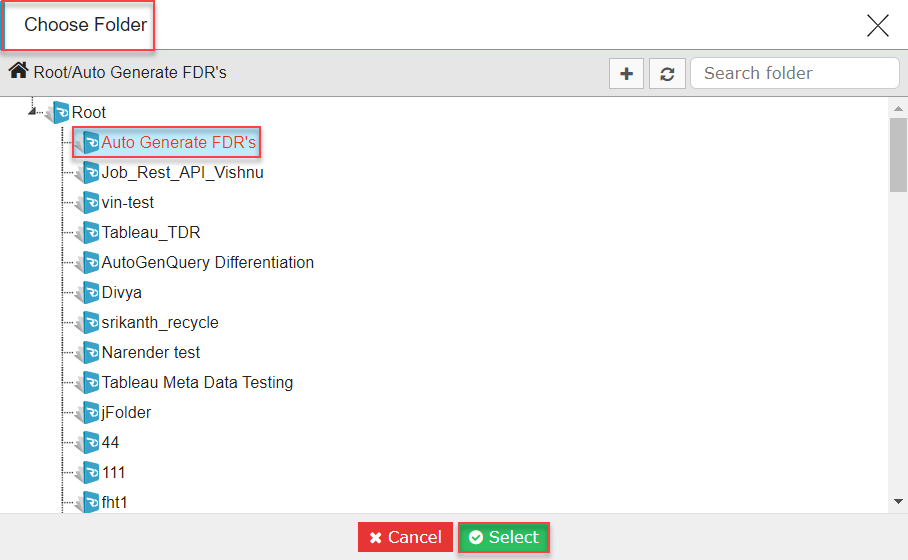

• A ‘Choose Folder’ pop-up window is displayed.
• Let’s choose the folder ‘Auto Generate FDR’s’.
• Click the ‘Select’ button.

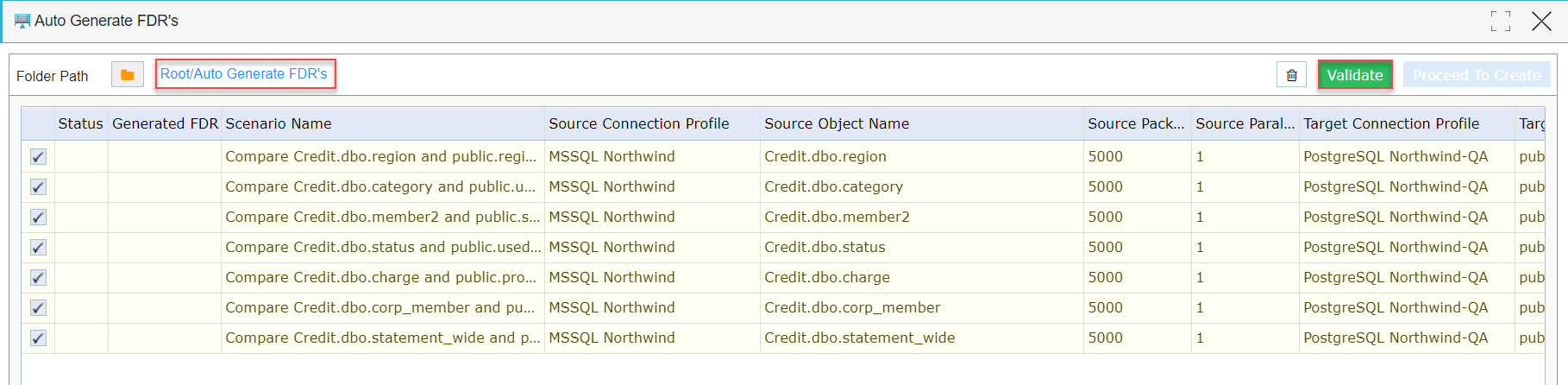

• This action selects the Folder Path as ‘Root/Auto Generate FDR’s’ as shown below.
• Let’s click the ‘Validate’ button.

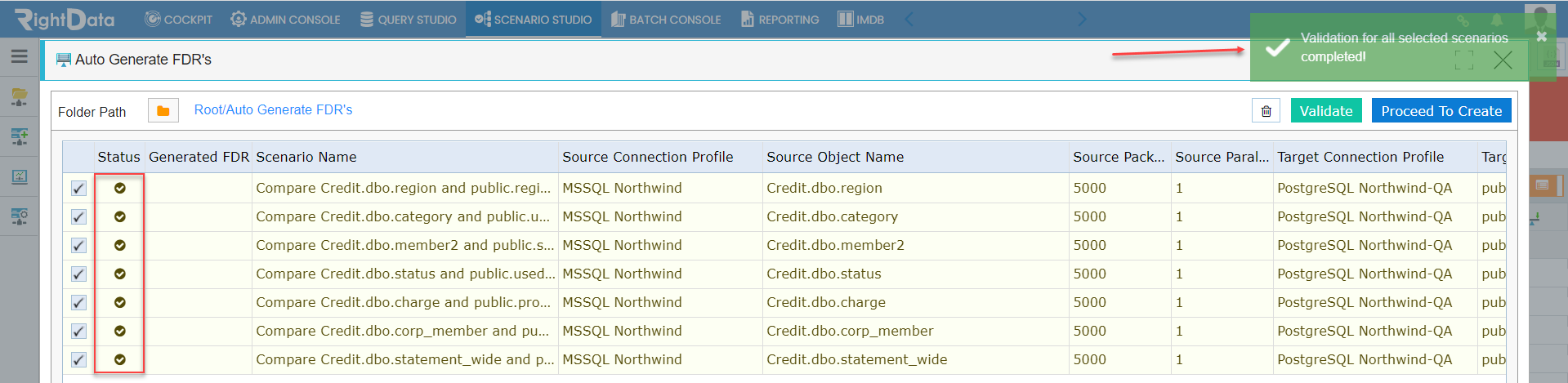

• A toaster message ‘Validation for all selected scenarios completed!’ is displayed.

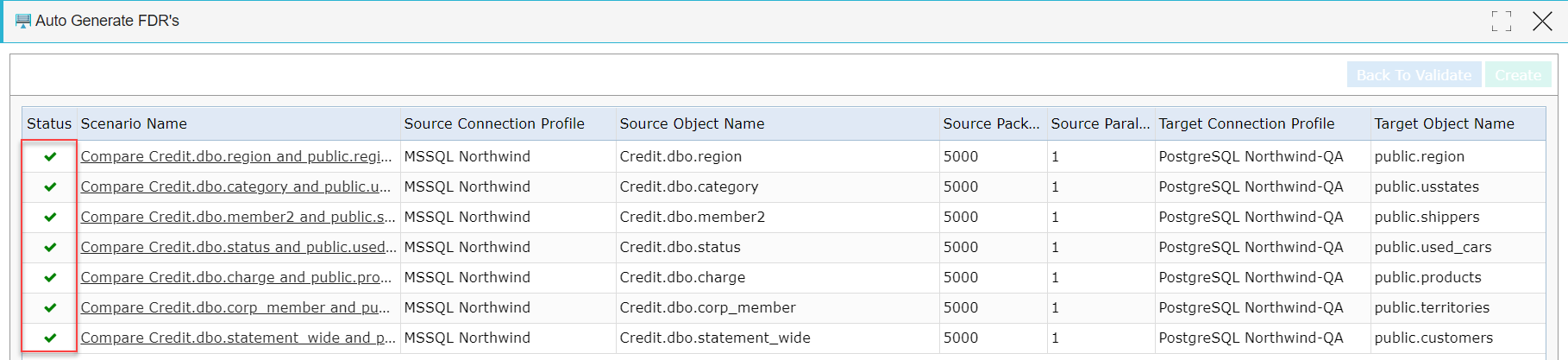

Note: The user notices the tick marks under the ‘Status’ column indicating the validation of selected scenarios is successful.

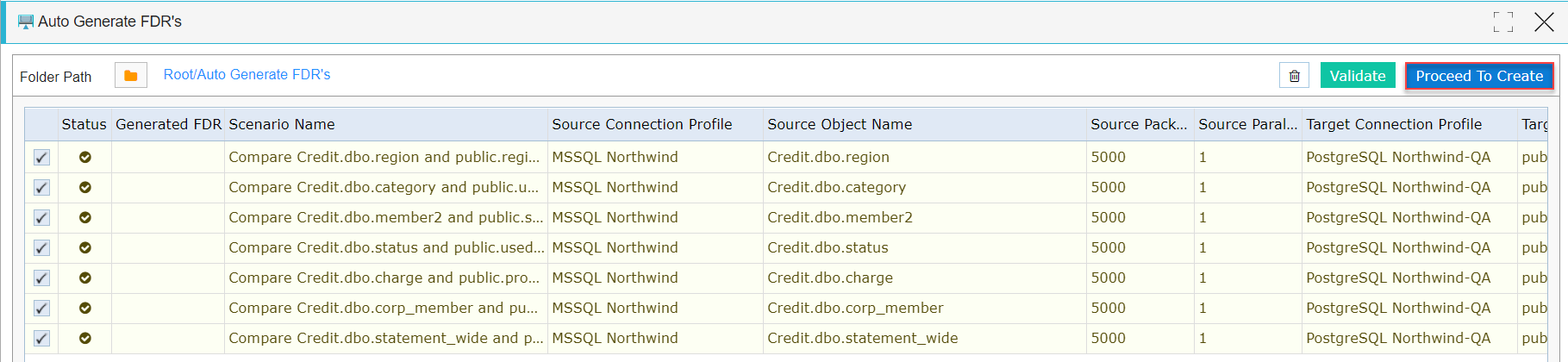

• Now, click the ‘Proceed To Create’ button.

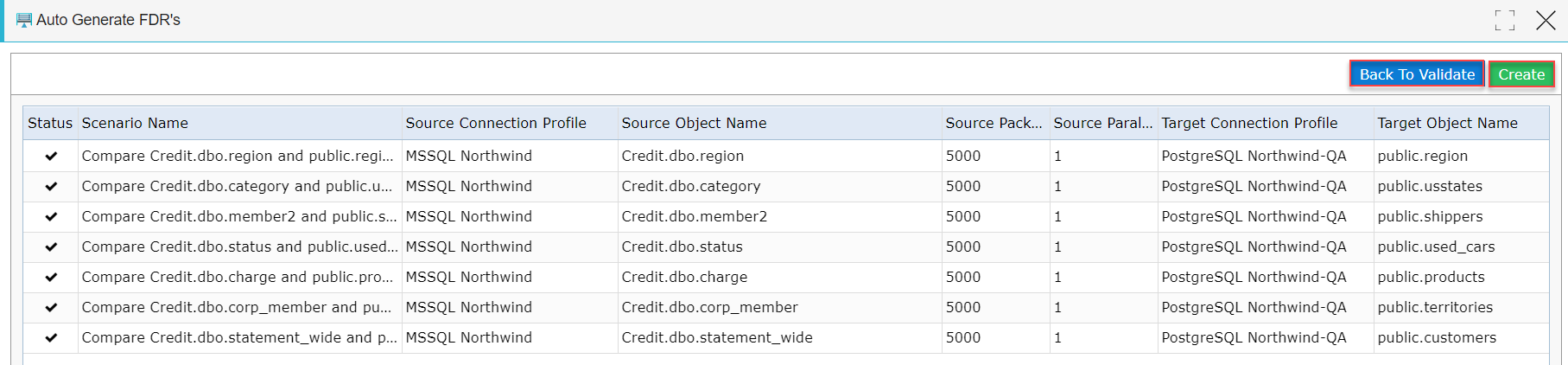

• This action displays two buttons namely ‘Back To Validate’ and ‘Create’.

Note: ‘Back To Validate’ button navigates the user to the previous (Validation) page.

• Let’s click the ‘Create’ button.

• This action creates the FDR scenarios and the green tick marks under the ‘Status’ column indicate the same.

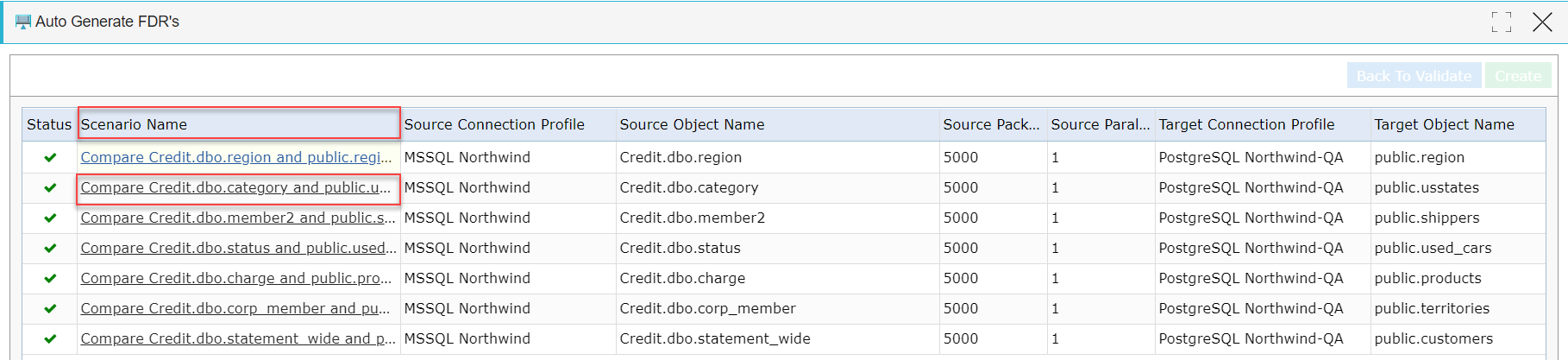

• Let’s suppose click the second scenario from the ‘Scenario Name’ column.

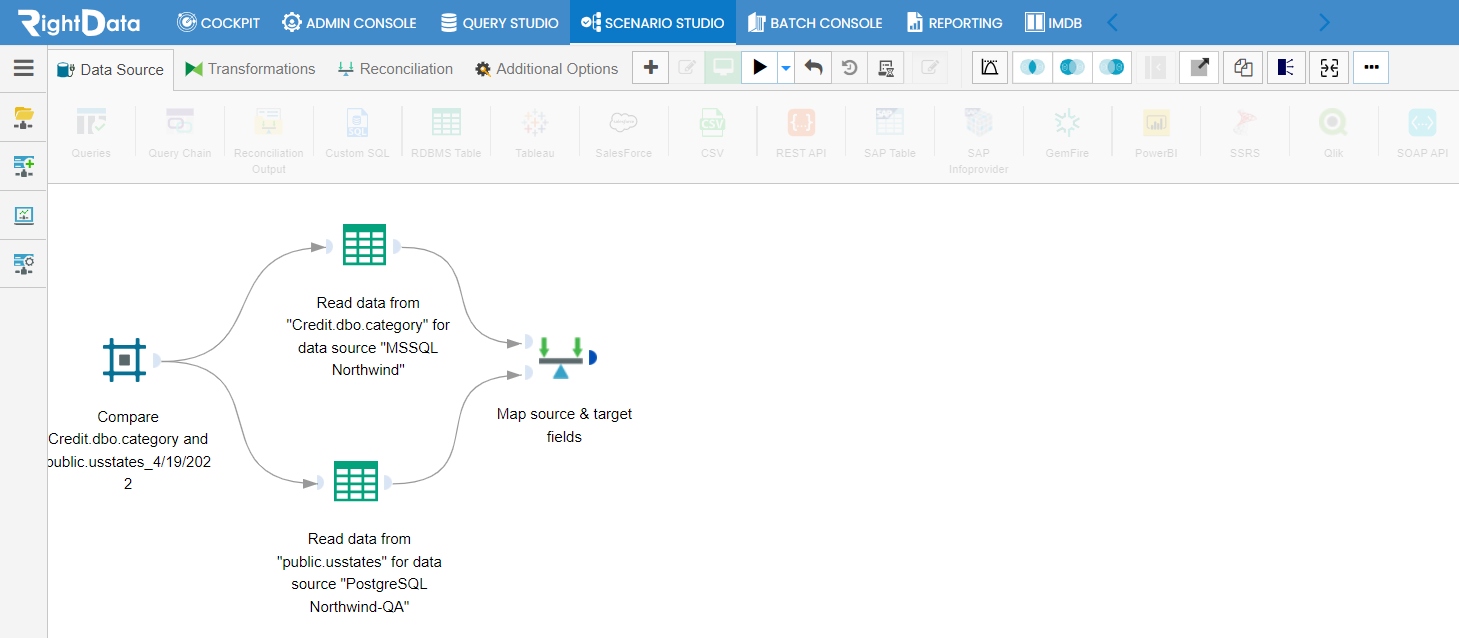

• This action navigates the user to that particular FDR scenario session page in create and edit mode.
• Close this window and navigate back to the ‘Auto Generate FDR’s’ session page.

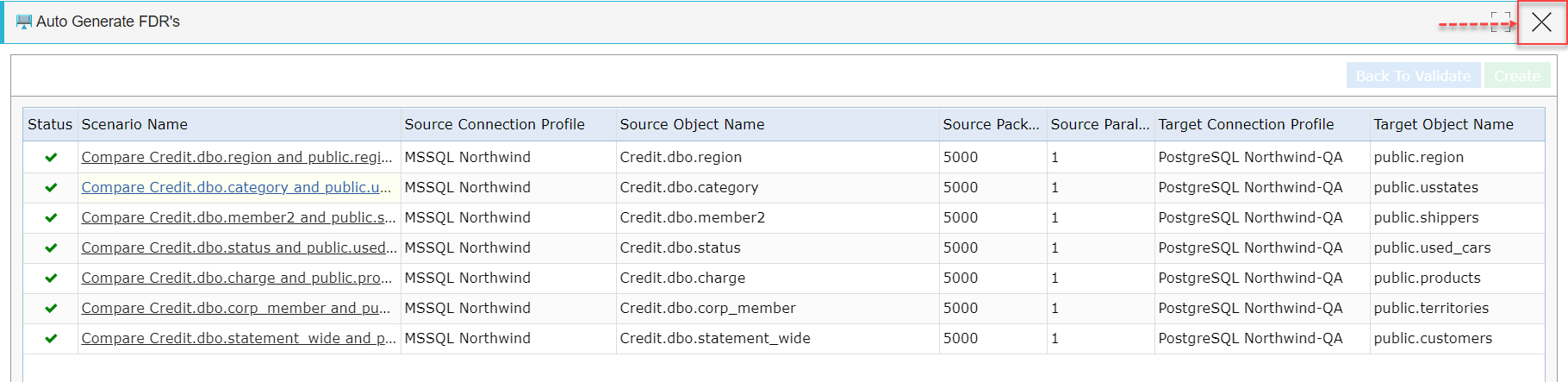

• Click the ‘X’ button.

• This action navigates the user to the ‘Technical Data Reconciliations Exceptions’ session page.
• The user notices the hyperlinks (FDR scenarios) were added within the ‘Auto Generated FDR’ column.
• Let’s click the first hyperlink from the ‘Auto Generated FDR’ column.

Note: If the user deletes any created FDR scenario from the Scenario Explorer session page, then the hyperlink of that particular scenario gets removed from this ‘Auto Generated FDR’ column.

Note: The user can also create FDR/FDR’s again from the same TDR configuration by clicking the ‘Auto Generated FDR’s’ button.

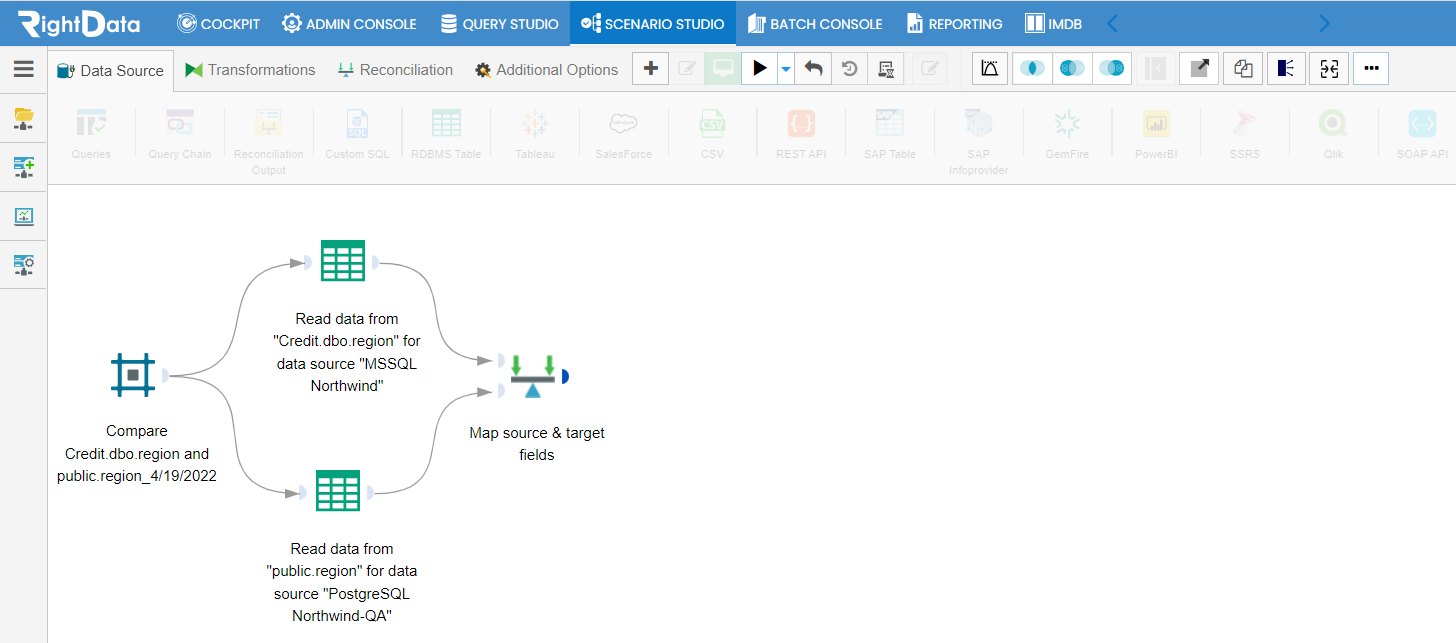

• This action navigates the user to that particular FDR scenario session page in create and edit mode.
