1. Overview

This document describes the automated deployment process for the DataTrust application using the Datatrust.sh script on a Linux system with internet access.

The script performs the following tasks:

Validates the license for installation
Updates configuration files:
- appsettings.json
- rightdata.properties
- nginx.conf
- python.env
- user.env
Deploys database schemas (Middleware and Frontend databases)
Installs and configures AWS CLI
Installs Docker and Docker Compose
Authenticates with AWS ECR and deploys containers

2. Prerequisites

2.1 System Requirements

Operating System: Ubuntu 20.04 or later
CPU: Minimum 16 cores (recommended)
RAM: Minimum 64 GB (recommended)
Disk Space: At least 500 GB free
Network: Active internet connection
Ensure unzip is installed on the server: sudo apt install unzip -y

2.2 SSL Certificate Requirements

To enable secure HTTPS access for the DataTrust application, SSL certificate files must be placed in /home/ubuntu/certs

Create cert Directory in /home/ubuntu/ (Ex: mkdir /home/ubuntu/certs)
Place Certificate Files

Copy the SSL files into the /home/ubuntu/certs:

.crt file (SSL Certificate)
.key file (Private Key)

Important Notes:

Ensure the certificate and key files are valid and correspond to the configured domain name.
File names should not contain spaces.

Do not place any additional or unrelated files in the /home/ubuntu/certs. Only the required .crt and .key files should be present.

2.3 Database & Port Requirements

Database Requirements

Two Microsoft SQL Server databases must be created
Metadata DB used for storing test scenario config details → Example: rd_metadata (recommended)
Datastore DB used for storing results → Example: rd_datastore (recommended)
Create a SQL user (not a service account)
- Username: rightdata (recommended)
- Permissions: System admin privileges on both databases

Ports to be open and allow access

On the server - 80 (standard http port), 443 (standard https port)
On the SQL Server - 1433 (standard SQL port) or any other port used.

Other ports on the server which need to be open for various components of the software but not needed to allow access from outside the server -

Services	Ports
DataTrust Web App	5000
Middleware App	9090
Middleware Utils Service	9095
Python Service	5010
RightSight App	9091
Grafana Service	3000
Apache Drill Web Console	8047
Apache Drill Server	31010

2.4 Other Information

License provided by RightData must be entered during installation
SSL certificate files (.crt and .key) to be placed in /home/ubuntu/certs/
Passwords are required to be entered during the installation
Ensure database servers are reachable before starting the installation
Verify firewall rules allow required ports
Do not interrupt the script during execution

2.5 Access Requirements

Root or sudo privileges on the target machine

3. Deployment Steps

Step 1: Download the deployment package using the download link provided by the RightData team.
Execute the following command from the /opt directory to download the package:

cd /opt
wget -O DataTrust.zip "https://example.com/file.zip"

Step 2: Unzip the Package and Navigate to Deployment Directory

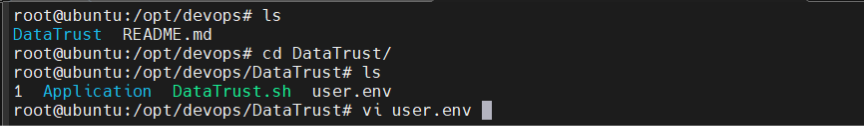

unzip DataTrust.zip

cd /opt/DataTrust/

Step 3: Update Configuration File

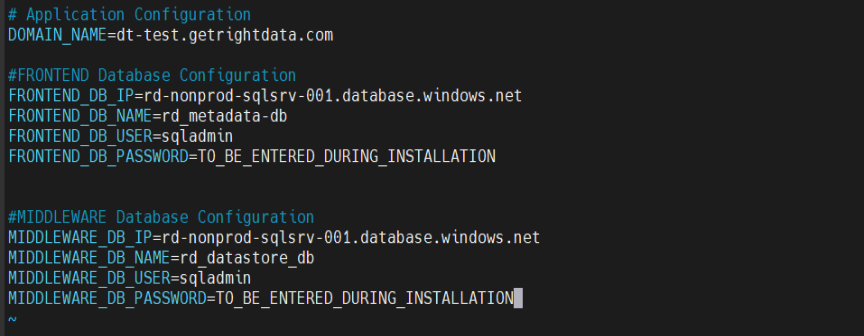

vi user.env

# Application Configuration
DOMAIN_NAME=datatrust.example.com(Desired domain to access application)

FRONTEND_DB_IP=
FRONTEND_DB_NAME=
FRONTEND_DB_USER=
FRONTEND_DB_PASSWORD=DO NOT ENTER HERE

MIDDLEWARE_DB_IP=
MIDDLEWARE_DB_NAME=
MIDDLEWARE_DB_USER=
MIDDLEWARE_DB_PASSWORD=DO NOT ENTER HERE

Note: Passwords should NOT be entered here. It will be prompted during installation.

Step 4: Switch to root user

sudo su

Step 5: Run installation script

./DataTrust.sh

During execution:

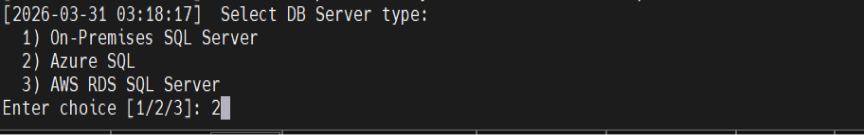

You will first be prompted to select your database location/type (as shown in the image), such as:
- On-Premises SQL Server
- Azure SQL
- AWS RDS SQL Server
You will then be prompted to enter the database passwords.
After successful password validation, you will be prompted to enter the License provided by the RightData team.
