DQ Command Center

RightSight User Guide  ·  Module 13 of 14

DQ Command Center v7.6 beta

Three-lens data quality dashboard providing executive, domain, and operational views of quality across your data estate.

Overview

The DQ Command Center provides three distinct "lenses" for viewing data quality across your enterprise — each tailored to a different audience. It aggregates DQ scores from all connections and presents them through executive summaries, domain-level assurance views, and operational remediation tools.

Target Persona: - Executive Lens — CTO, CDO, VP of Data - Domain Assurance Lens — Data Stewards, Domain Owners - Operational Lens — DQ Engineers, Data Engineers

Prerequisites: DQ rules configured and at least one job execution completed.

How This Module Helps

The DQ Command Center is the single pane of glass for data quality. It: - Gives executives a quick health check without technical details - Lets domain owners see quality scores for their business areas - Provides engineers with rule-level drill-down for remediation - Supports multi-connection views for enterprise-wide quality

Connects To Relationship
DQ Results Drill from scores to failed records
Review & Confirm (DQ) Edit rules from drill-down
Domains Domain Assurance lens uses domain hierarchy
Business Terms Term-level quality scores
Enterprise Trust Map Trust scores flow to ETM
Method Path
Sidebar Observability → RightSight → DQ Command Center (under Dashboards)
URL /dq-command-center
Deep link /dq-command-center?connectionId=<id>&lens=<executive|domain-assurance|operational>
Multi-connection /dq-command-center?connectionIds=<id1>,<id2>,<id3>

Features & Workflows

1. Selecting Connections

  1. On the landing page, select one or more connections.

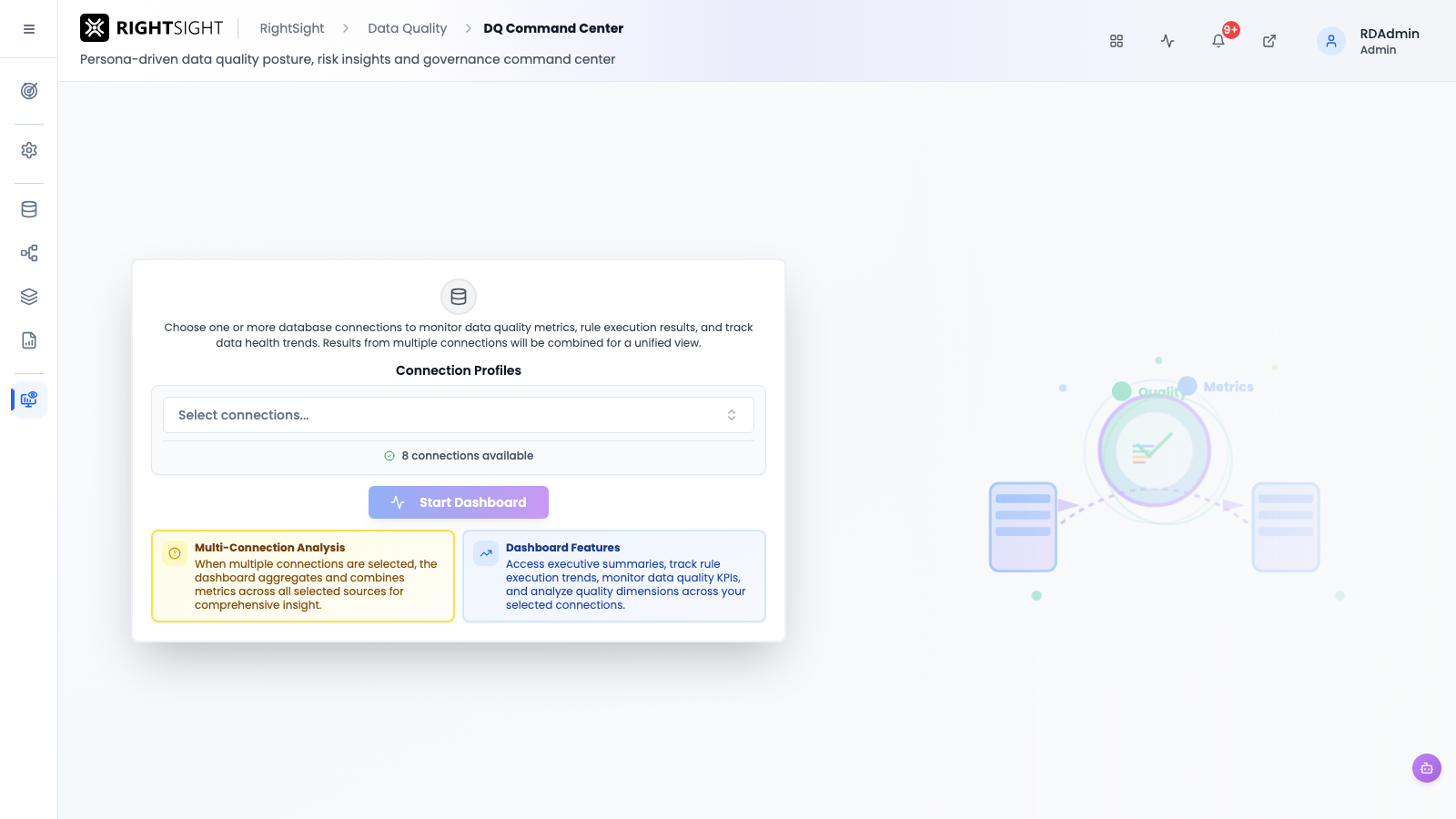

Connection selection
Figure 1: Connection selection

  1. Add additional connections using + Add.

  2. Remove connections by clicking the ✕ on their pill.

2. Switching Lenses

  1. Click the lens tabs: Executive, Domain Assurance, or Operational.
Lens selector
Figure 2: Lens selector

3. Executive Trust View

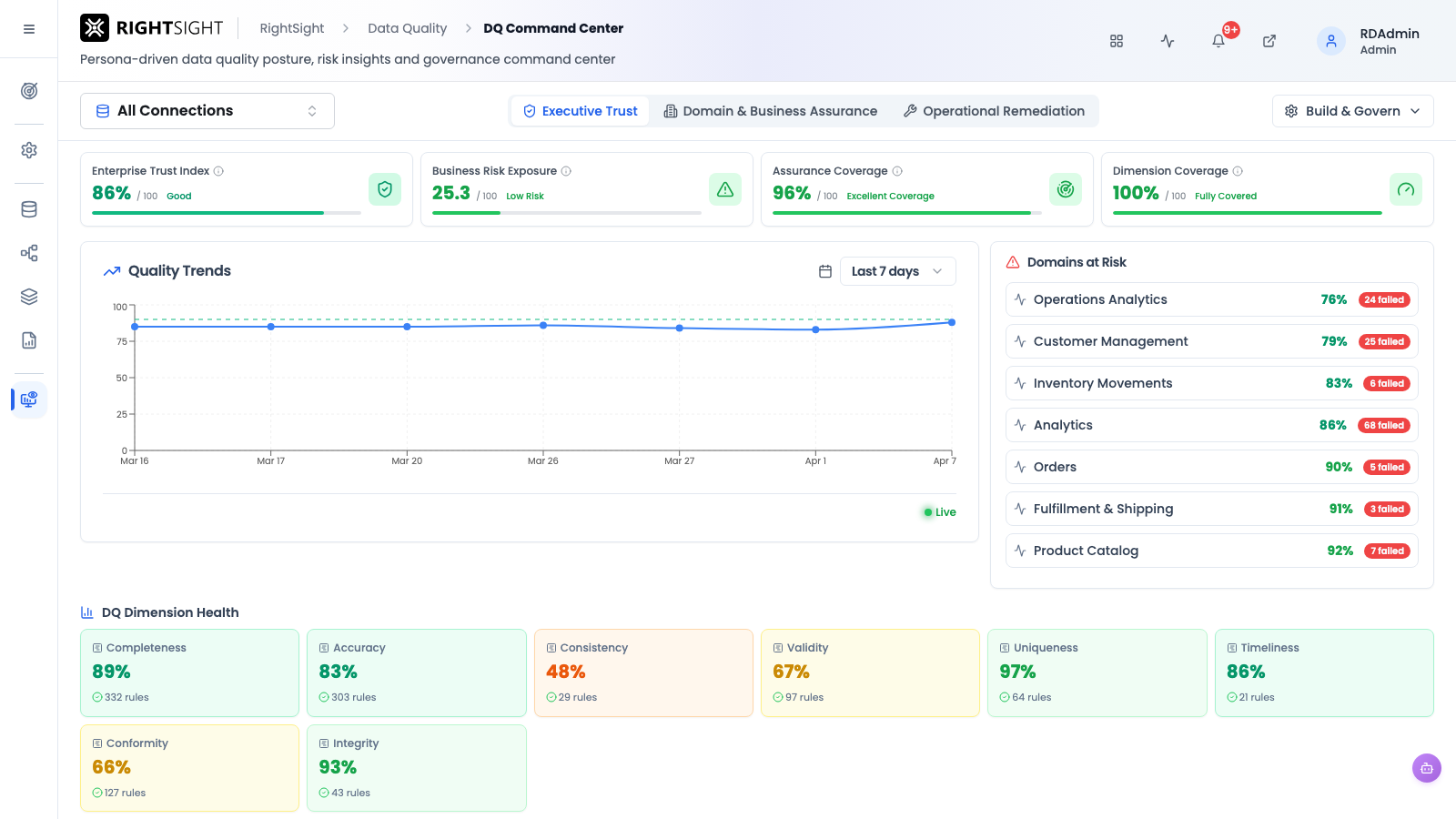

Executive Trust View
Figure 3: Executive Trust View
Section Description
System Health Strip Overall DQ score and dimension aggregates
Dimension Health Bar chart per DQ dimension
Rules Execution Trend Time series of pass rates
Top Risk Alerts Most critical quality issues

Drilling into Risk Alerts

  1. Click any alert in the Top Risk Alerts card.
Risk alert click
Figure 4: Risk alert click
  1. Navigate to DQ Results for the specific rule.

4. Domain Assurance View

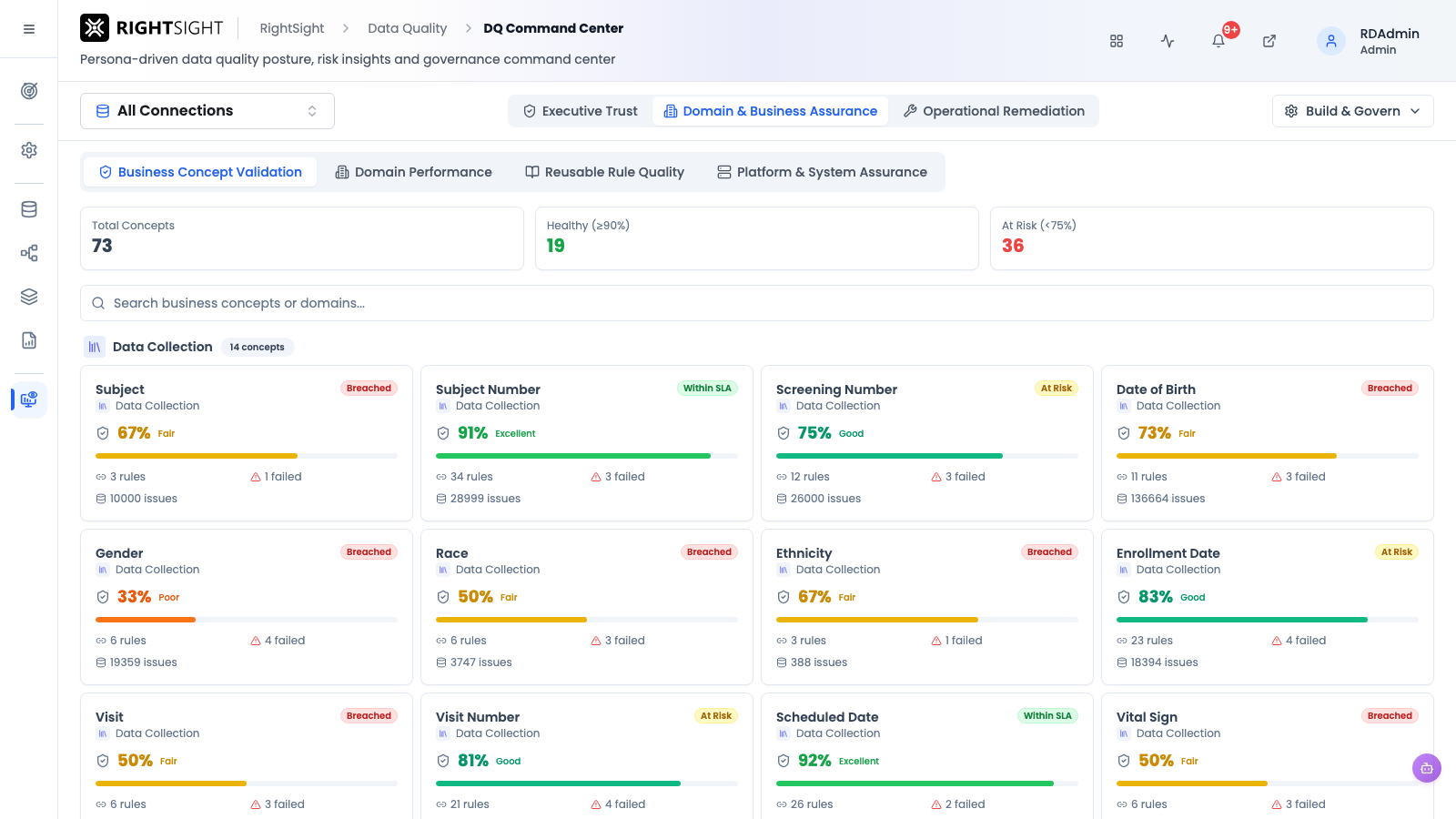

Domain Assurance View
Figure 5: Domain Assurance View

  1. View Business Concept Cards — one per domain with aggregate DQ score.

  2. Click a domain card to drill into term-level scores.

5. Operational Remediation View

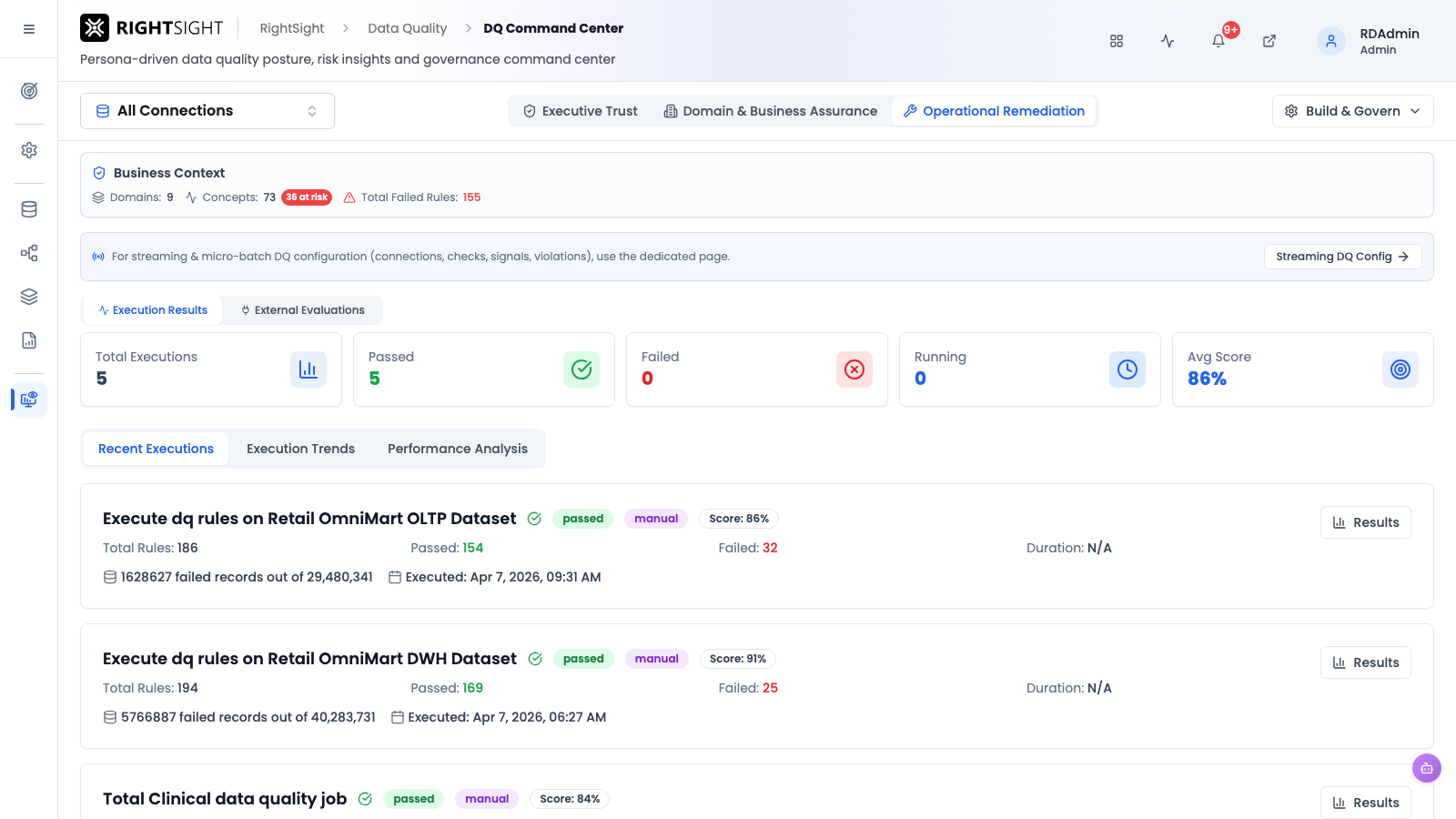

Operational View
Figure 6: Operational View

  1. Use the Rule Browser Panel to search and filter rules.

  2. Click Drill on any rule to open the Record Level Drawer.

Record Level Drawer
Figure 7: Record Level Drawer

  1. View actual failed records with column highlighting.

  2. Export failed records.

Copy the URL to share a specific view:

/dq-command-center?connectionIds=1,2,3&lens=executive
From DQ Command Center Navigate To
Rule drill-down → DQ Results DQ Results
Rule edit → Review & Confirm Review & Confirm (DQ)
Domain → domain management Domains
Overall scores → Enterprise Trust Map ETM

Tips & Best Practices

  • Start with the Executive lens for a quick health check, then drill into Domain Assurance or Operational views.
  • Use multi-connection selection to get an enterprise-wide quality picture.
  • The Operational lens's Rule Browser is ideal for daily DQ triage.
  • Share deep links with stakeholders for specific views.
