Job execution using Repeat Scheduler

You are viewing archived documentation for Data Trust v2024.06 (previous version).
Go to the latest v7.6 documentation →

Repeat Schedule schedules the Job at a specific future point of time (Minutes, Hours, Day, or Month) and here the Job execution is repetitive in nature.

To learn about Job Designer, let us walk through the below procedure:

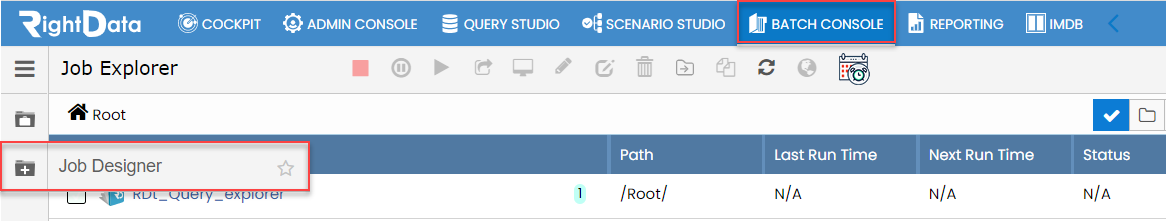

  • Click on the BATCH CONSOLE
  • Hover and click on Job Designer snippet option.
  • A Job Designer session page is displayed.

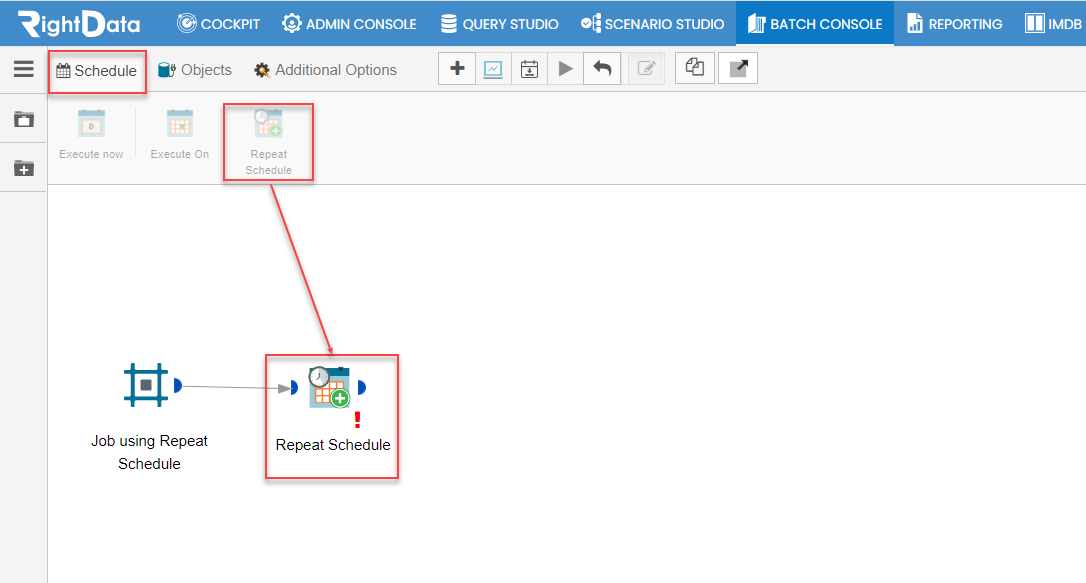

  • From the Schedule tab, let’s drag and drop Repeat Schedule icon and double tap on it.

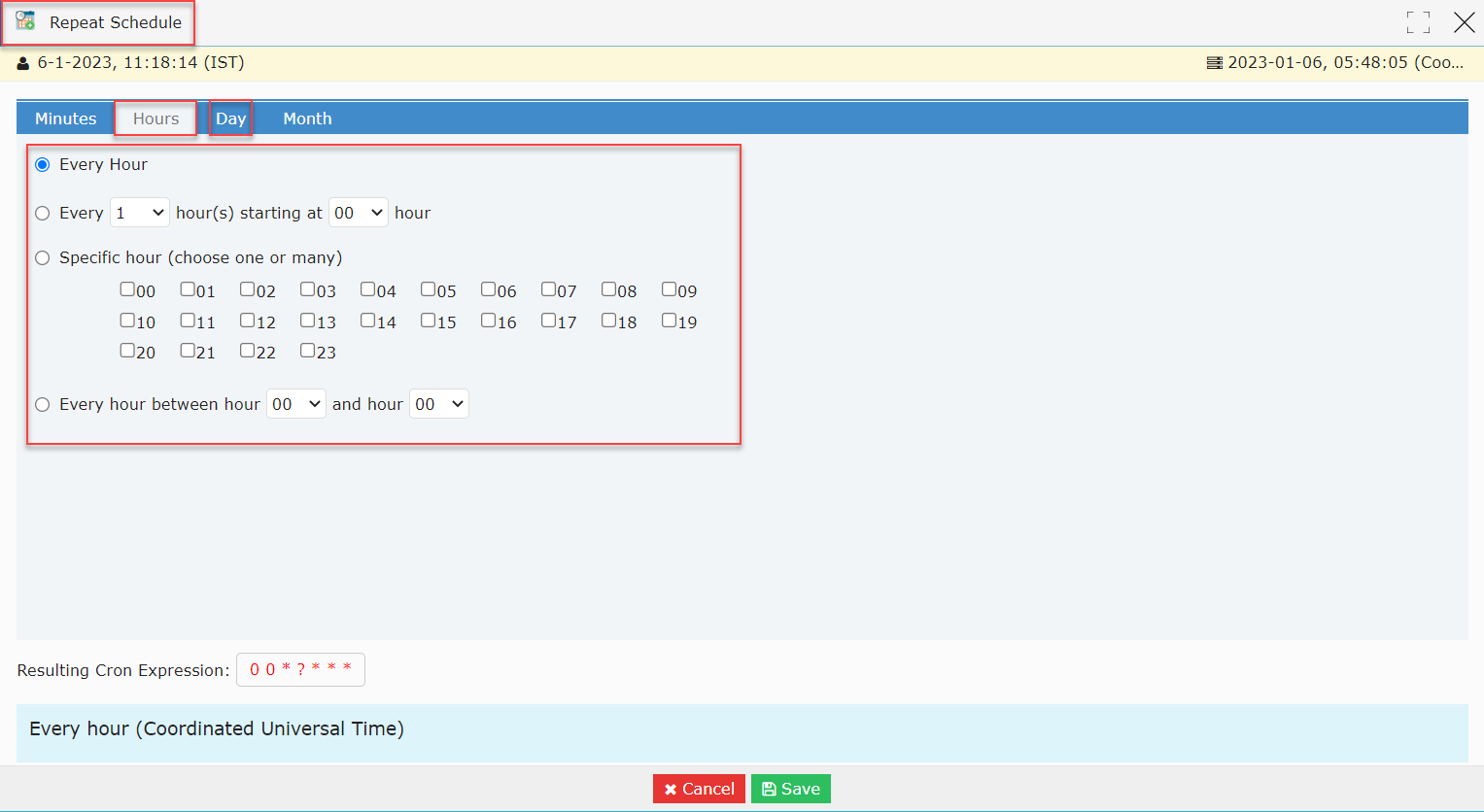

  • A Repeat Schedule pop-up window is displayed.
  • By default, Hours option is selected.

Note: In this Hours option, we can schedule the Job every hour, pointing time in Hours from now or current time, choosing a specific hour(s), or in between specific hours.

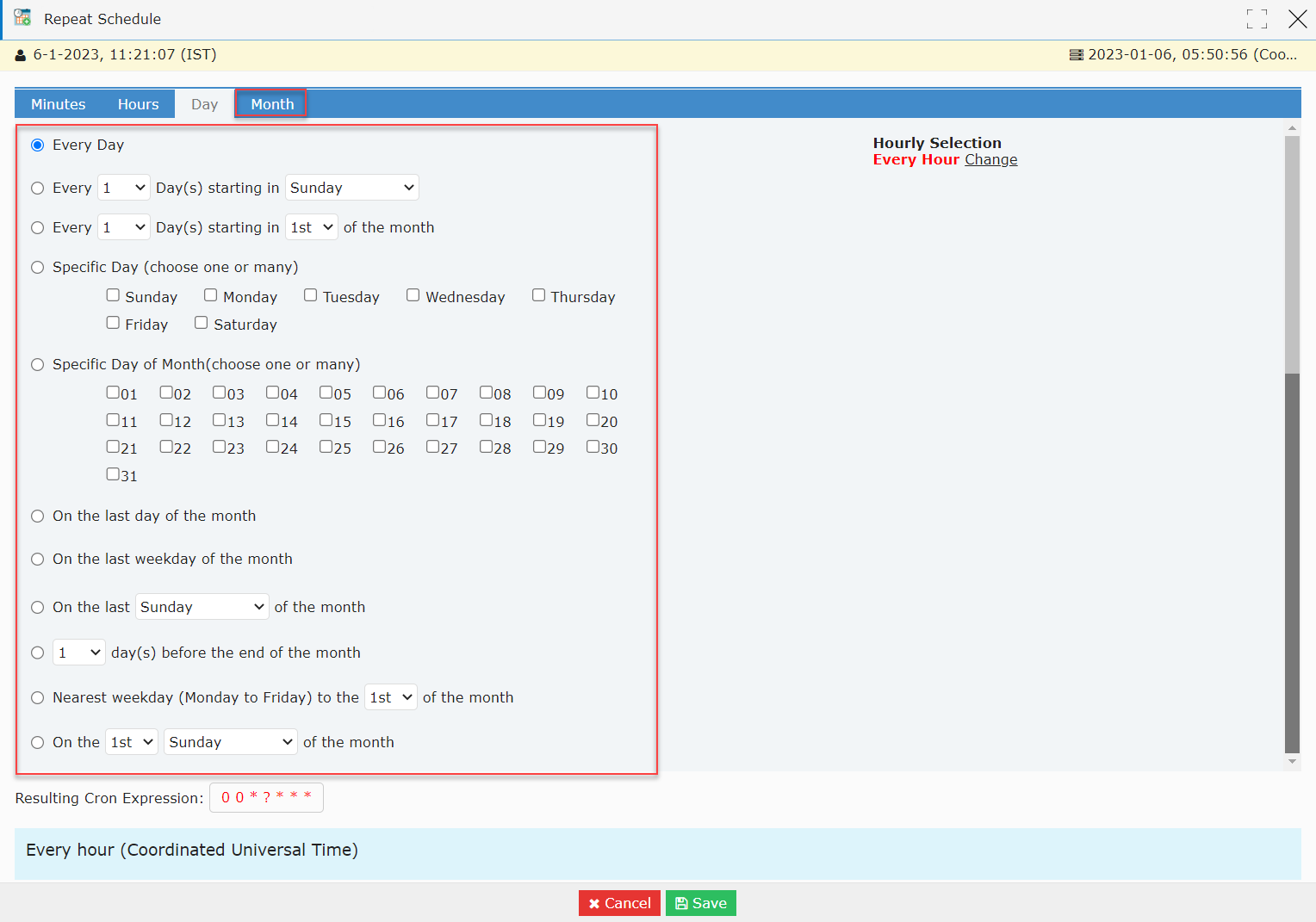

  • Click the Day option.
  • By default, Every Day is selected. We can also specify every starting day with a combination of week or month, and select a specific weekday or month.
  • We can also choose Specific Day (choose one or many), Specific Day of Month (choose one or many), On the last day of the month, On the last weekday of the month, On the last weekday selection of the month, Day(s) selection day(s) before the end of the month, Nearest weekday (Monday to Friday) to the month number selection of the month, or on the day and week selection of the month.

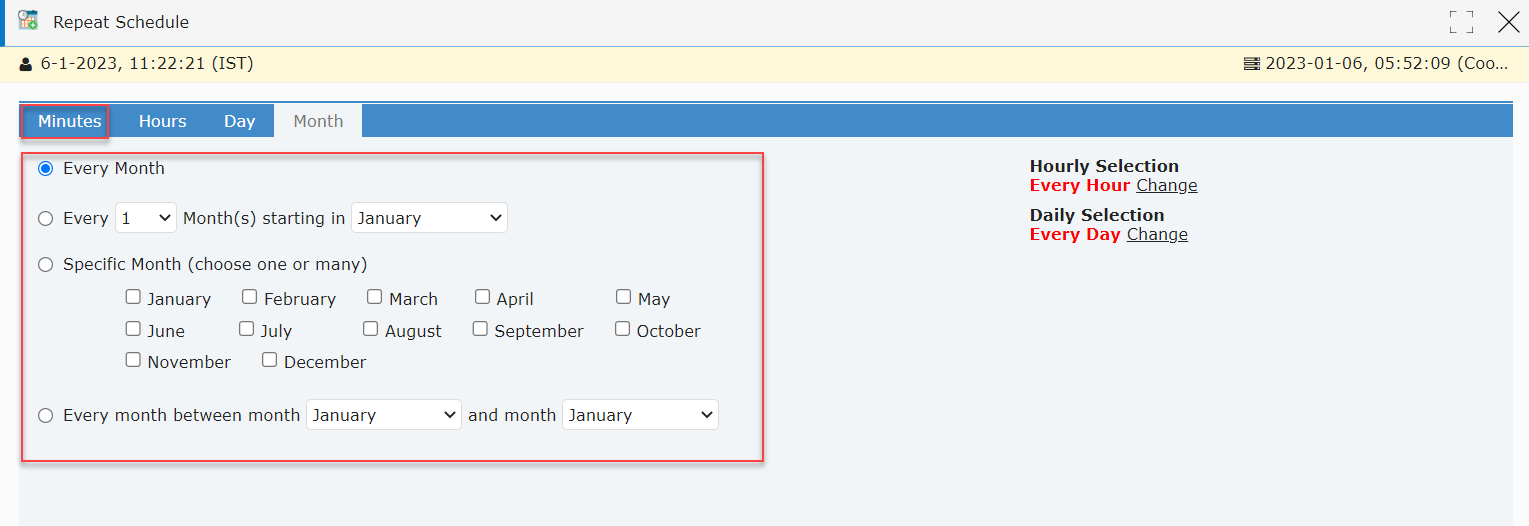

  • Click on Month option.
  • Here, we can view job scheduling based on Every Month, Every number selection of Month(s) starting in month selection, Specific Month (choose one or many), or Every month between in-between months

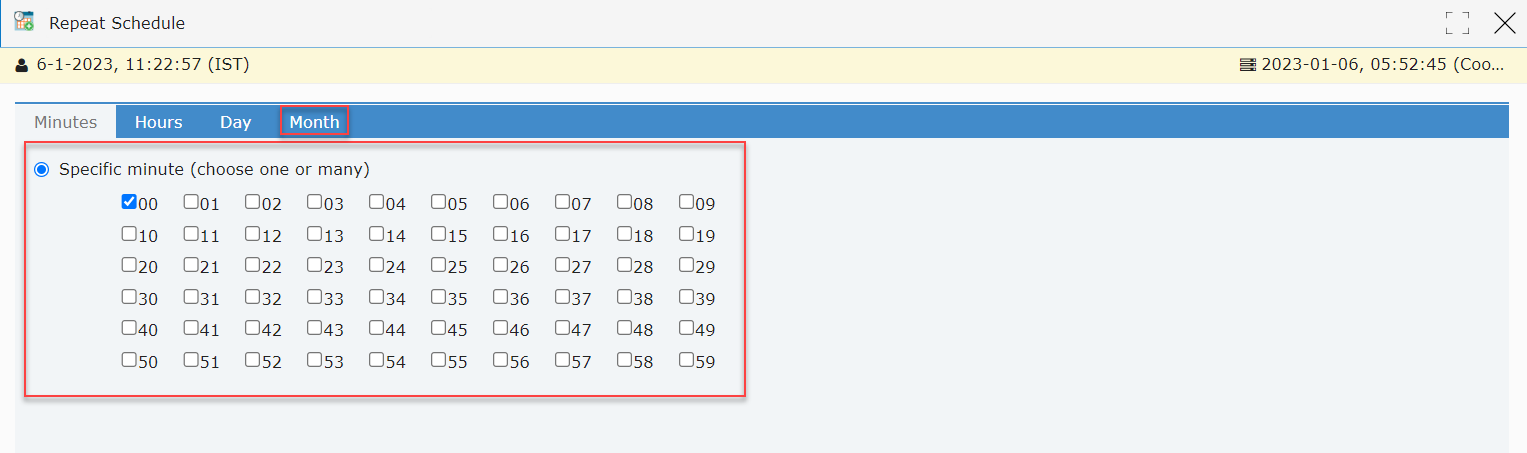

  • Click on Minutes option.
  • Here, we can select time-based on Specific minute (choose one or many).
  • Click on Month option again.

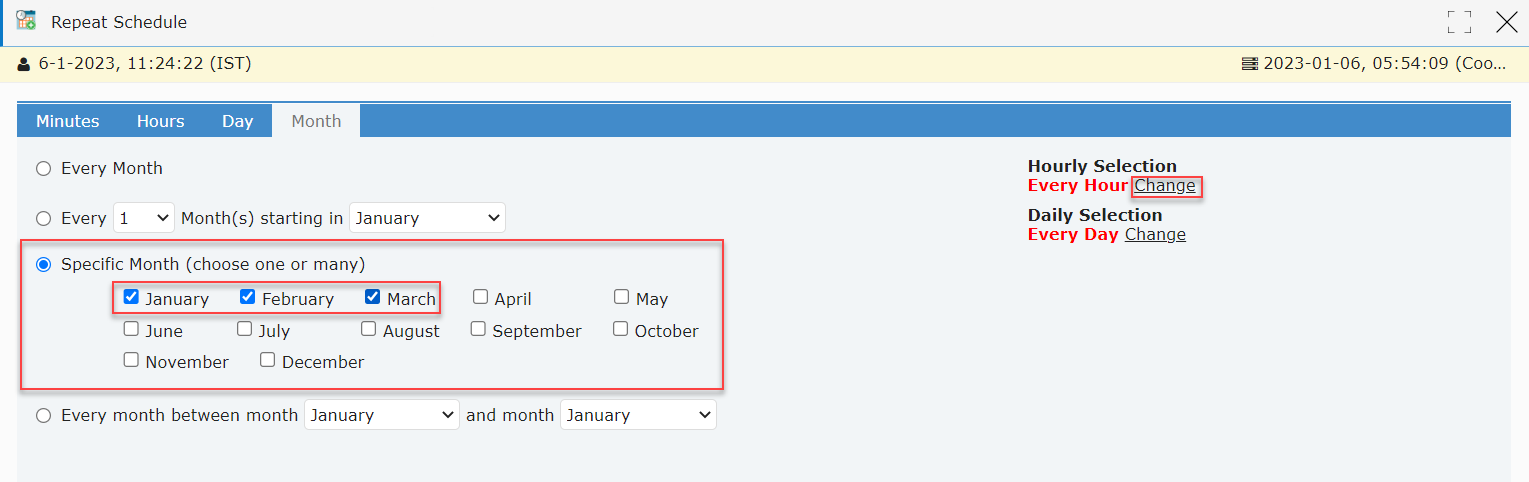

  • Here, let’s select Specific Month (choose one or many) and select January, February, and March.
  • Click on change from Hourly Selection Every Hour Change.
  • The Hours option is displayed.

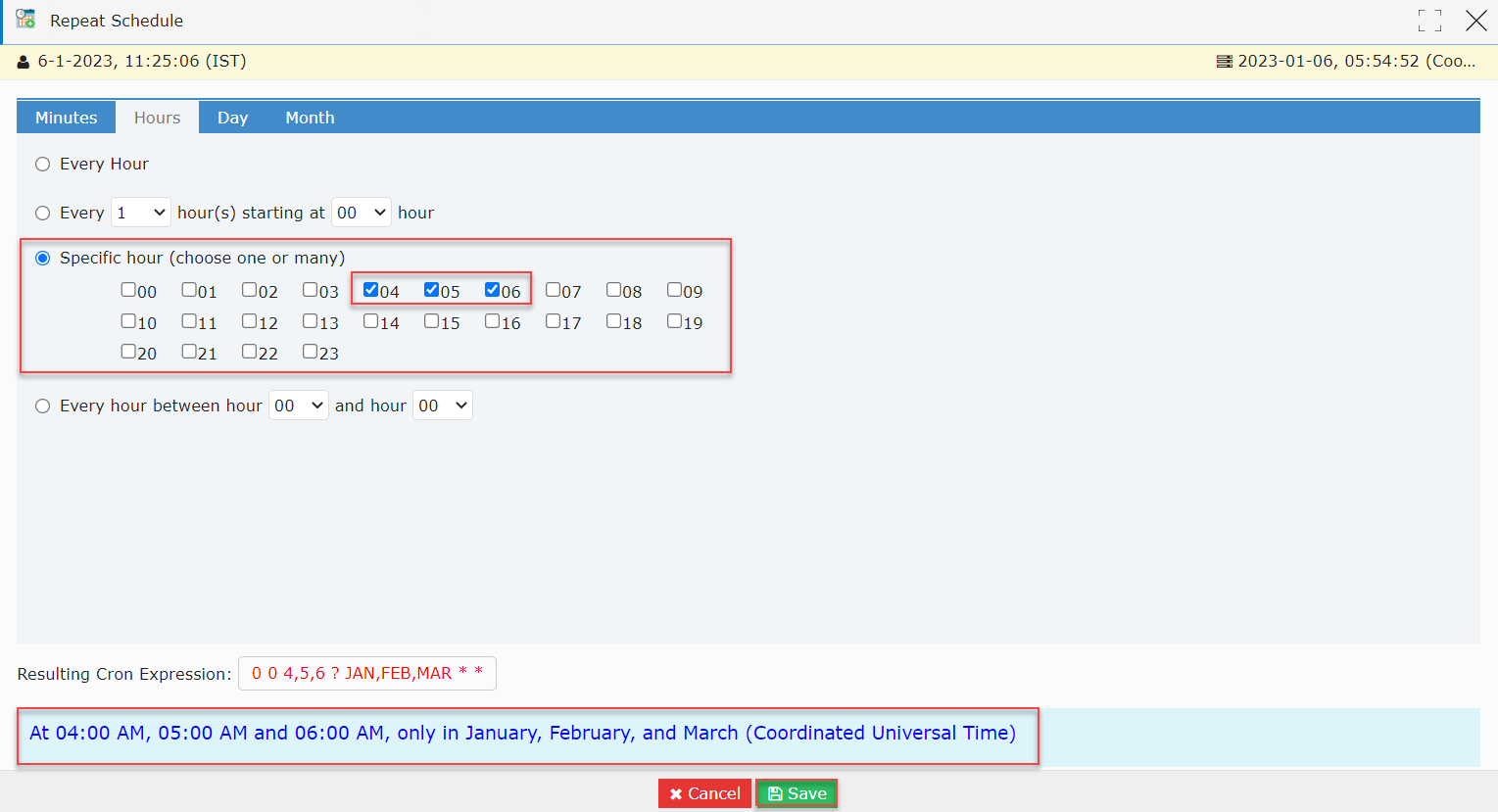

  • Let’s choose 04, 05, 06 from the Specific hour (choose one or many).
  • Here, we can see the overall Job schedule as At 04:00 AM, 05:00 AM and 06:00 AM, only in January, February, and March (Coordinated Universal Time).
  • Click on Save.
  • The Job Designer page is displayed.

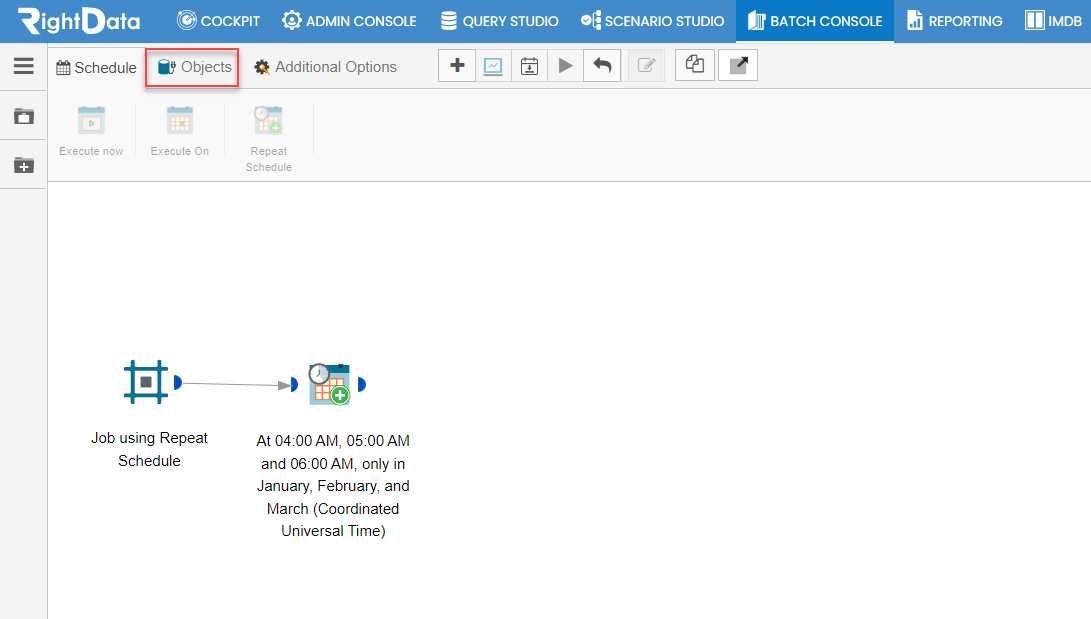

  • Click on Objects tab.

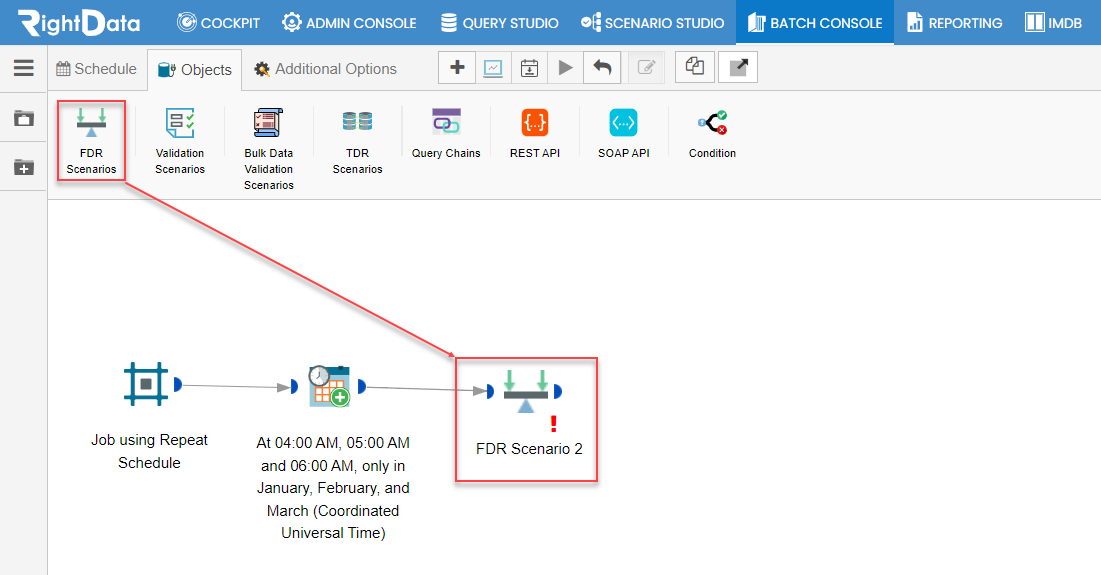

  • Let’s, drag and drop FDR Scenarios icon onto the designer page and double tap on it.

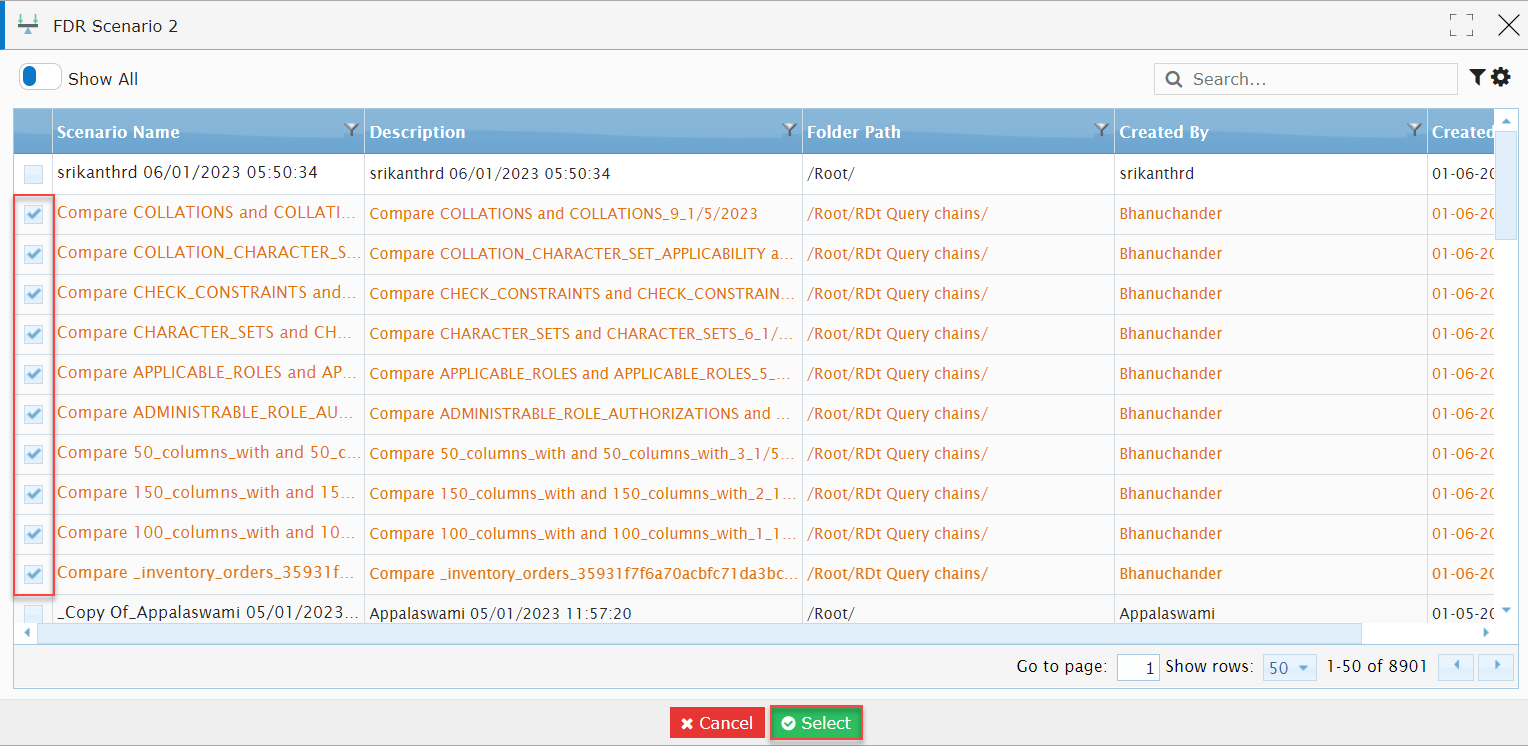

  • An FDR Scenario2 pop-up window is displayed.
  • Let’s select the required FDR scenarios.
  • Click on Select button.

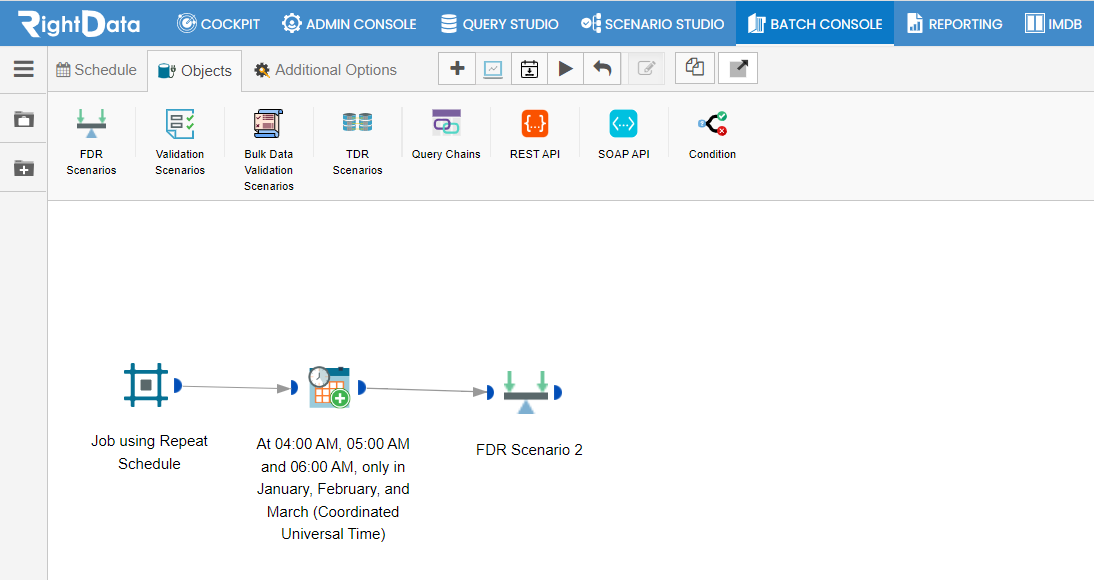

  • The Job Designer page is displayed.

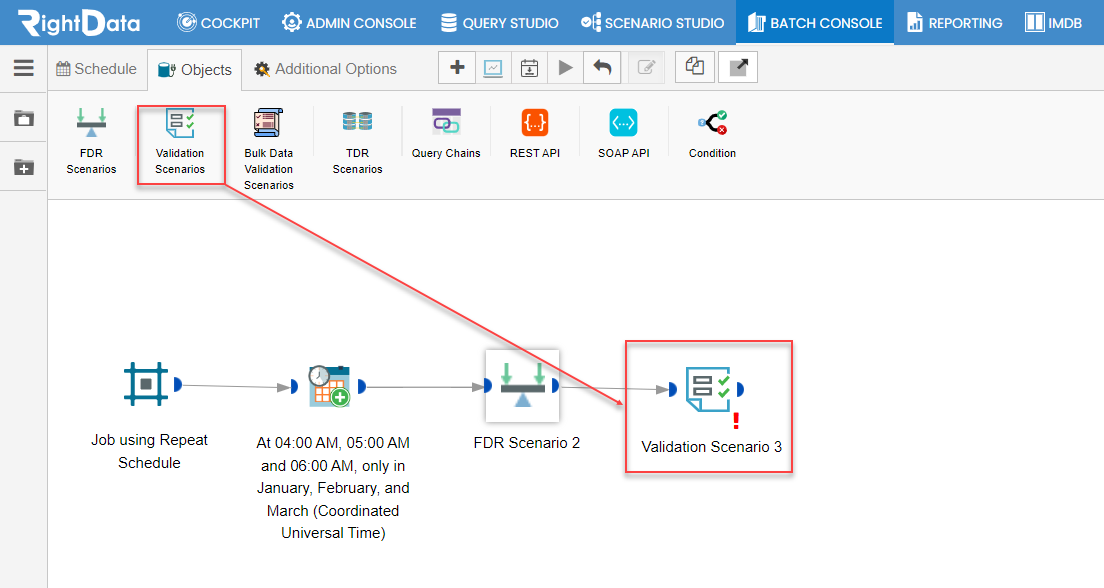

  • Let’s, drag and drop Validation Scenarios icon on to the designer page and double tap on it.

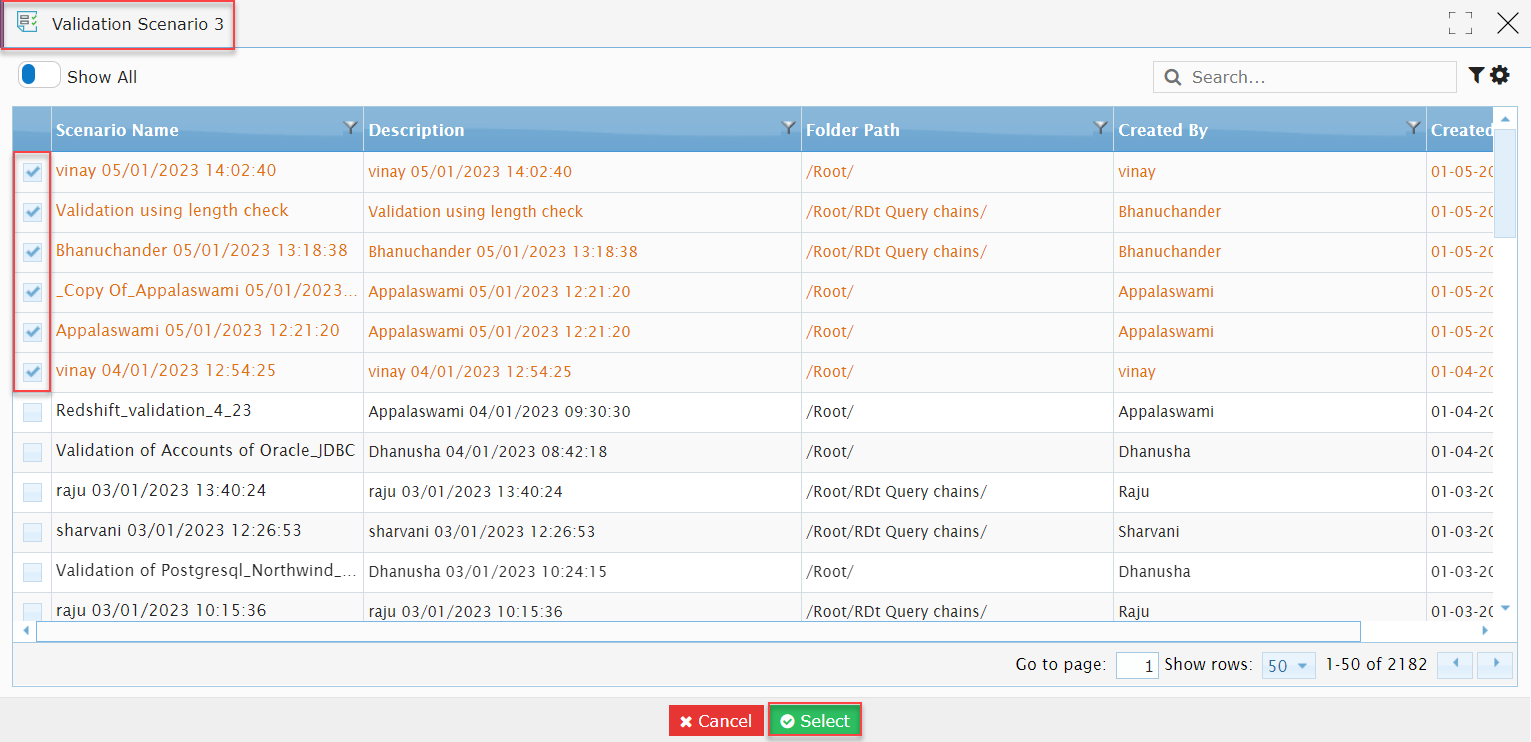

  • A Validation Scenario 3 pop-up window is displayed.
  • Click on Select to save the Validation Scenario 3 widget.
  • We will be navigated to the Job Designer page.

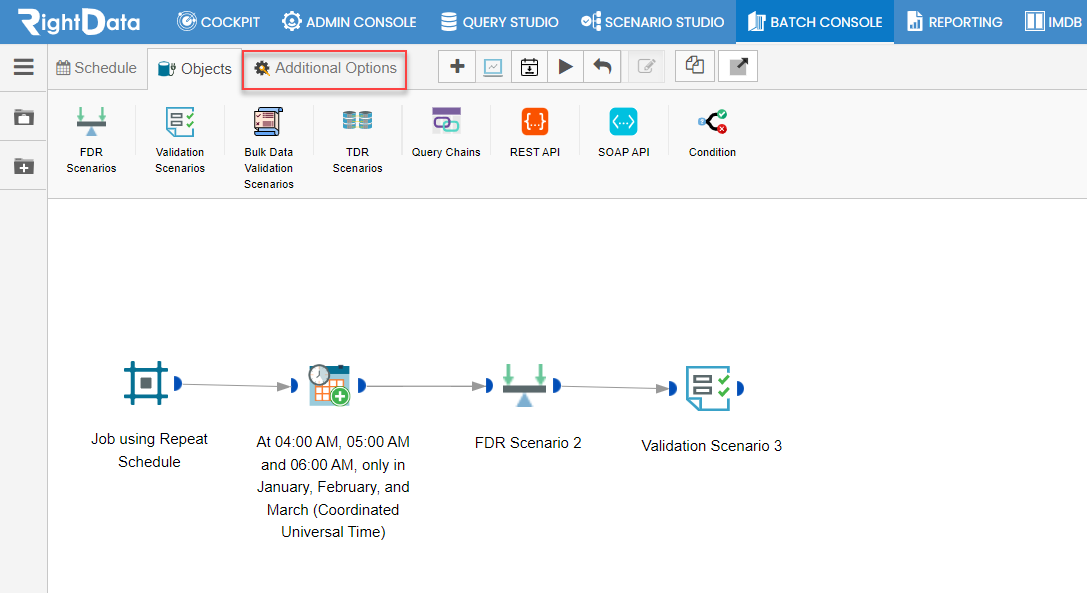

  • Click on Additional Options tab.

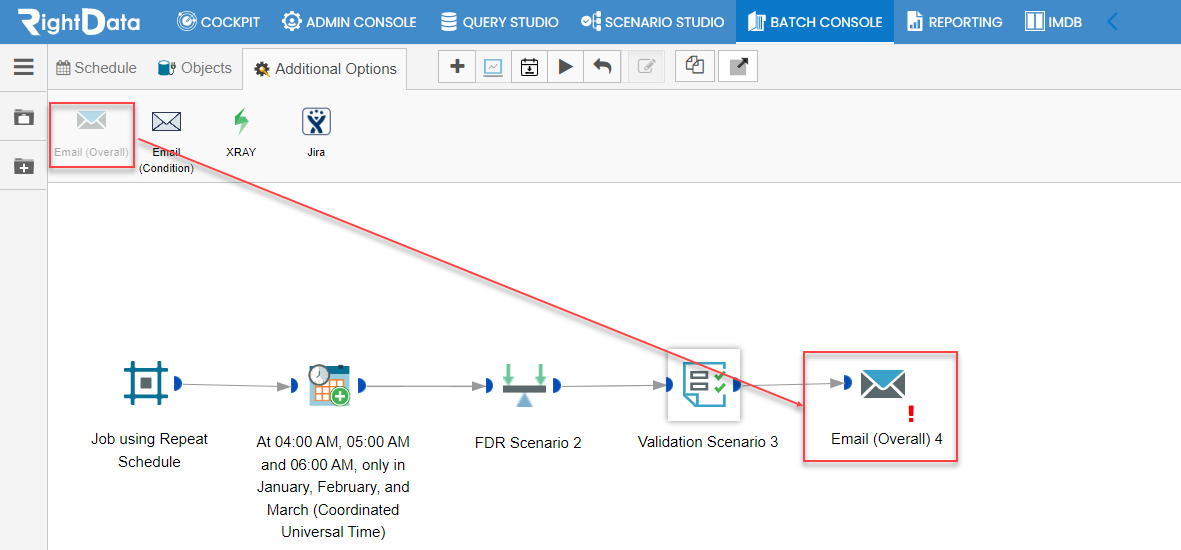

  • Let’s, drag and drop an Email (Overall) icon and double-tap on it.

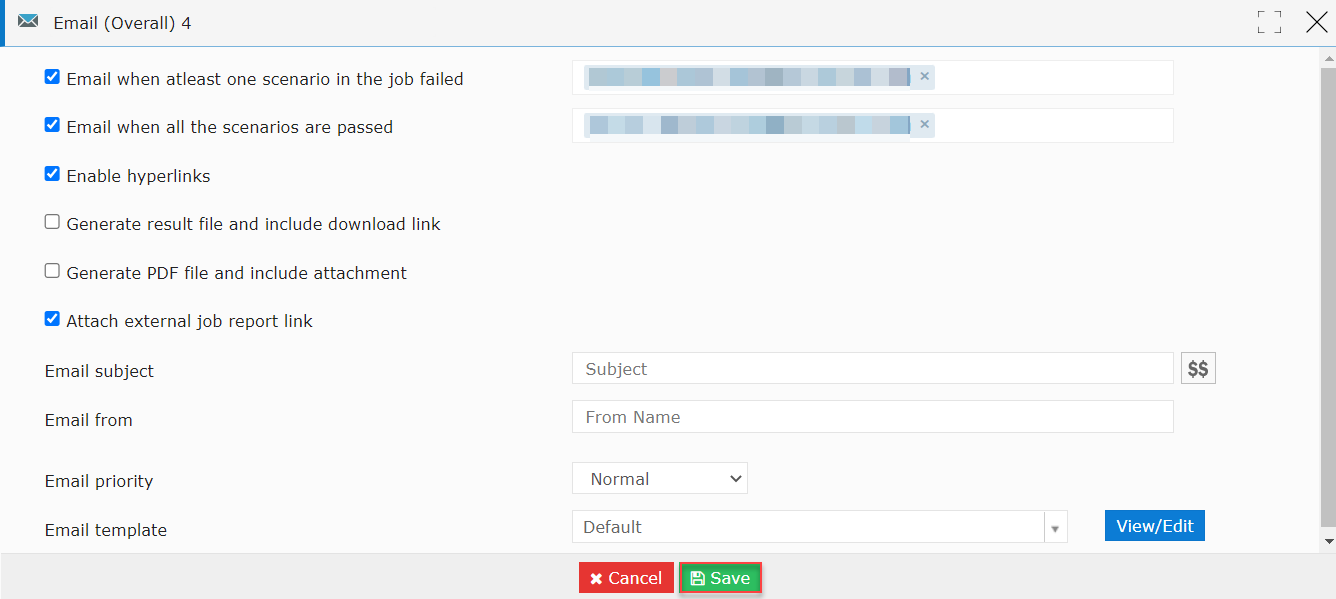

  • An Email (Overall) 4 pop-up window is displayed.
  • Click on Save button to save the widget.
  • We will be navigated to the Job Designer page.

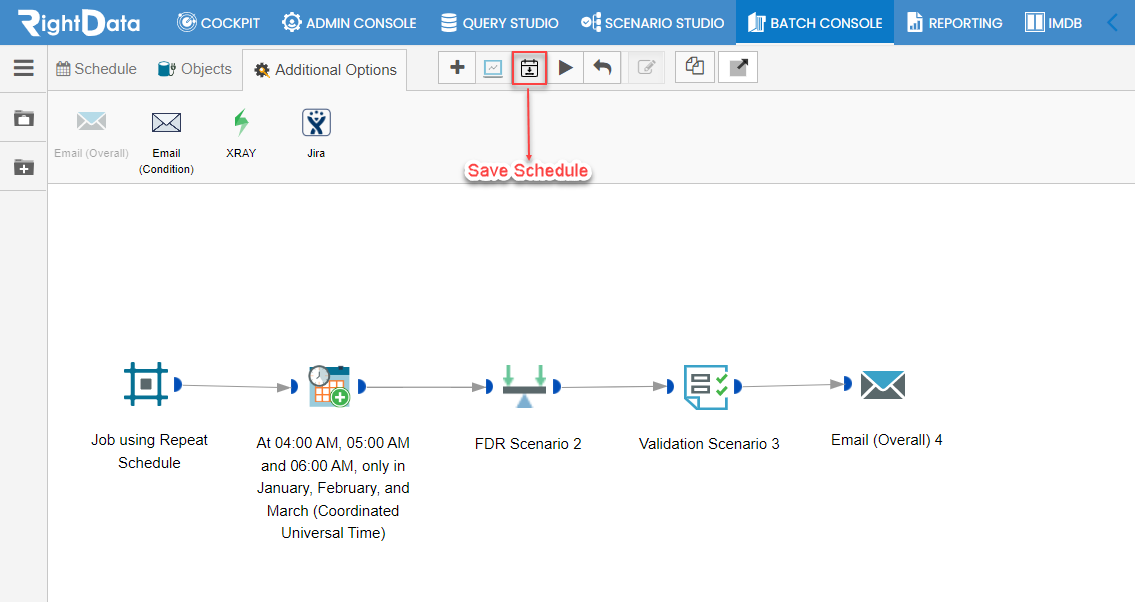

  • Click on Save Schedule icon.

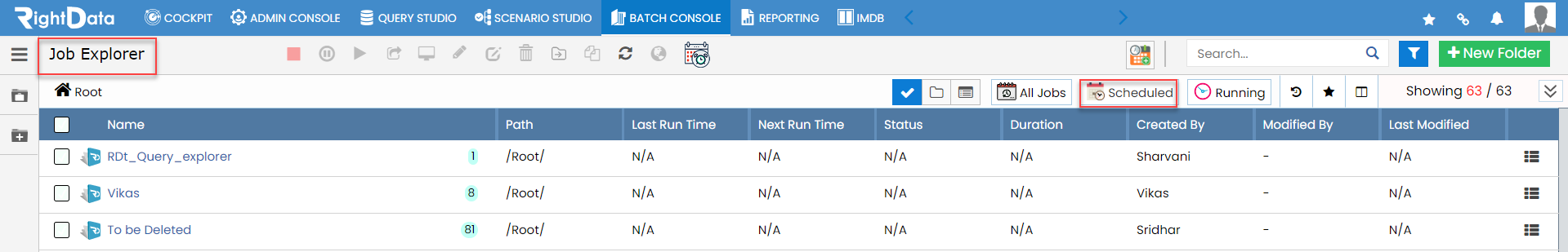

  • This action navigates to the Job Explorer
  • Click the Scheduled option.

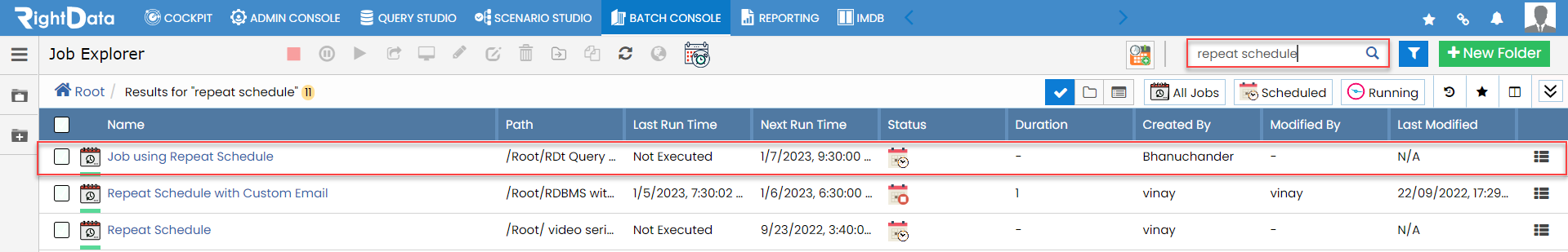

  • Search with repeat schedule and here we can view our job scheduled using Repeat Schedule option.
