Establish RDBMS JDBC type profile connections using AWS Secrets Manager

You are viewing archived Admin Console - Profiles documentation for Data Trust v2024.06 (previous version).
Go to the latest v7.6 documentation →

Now, the user can establish any RDBMS JDBC profile connection using AWS Credential Manager parameters such as URL and Secret ARN.

To learn more, let us walk through the below procedure:

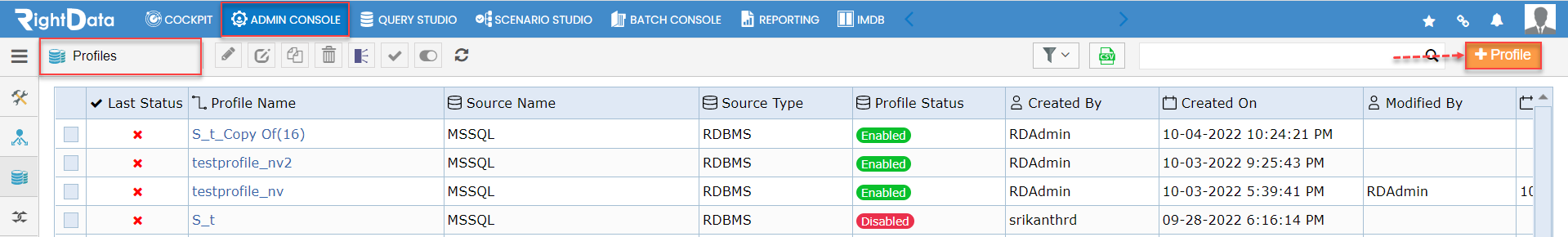

• Click the ‘ADMIN CONSOLE’ module.
• This action navigates the user to the ‘Profiles’ session page.
• Click the ‘+ Profile’ icon.

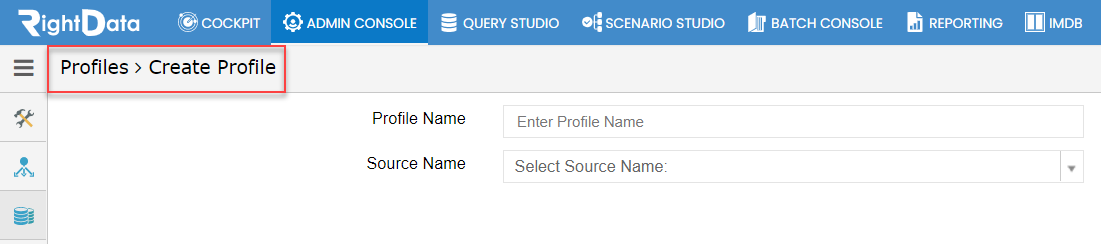

• The user is navigated to the ‘Create Profile’ session page.

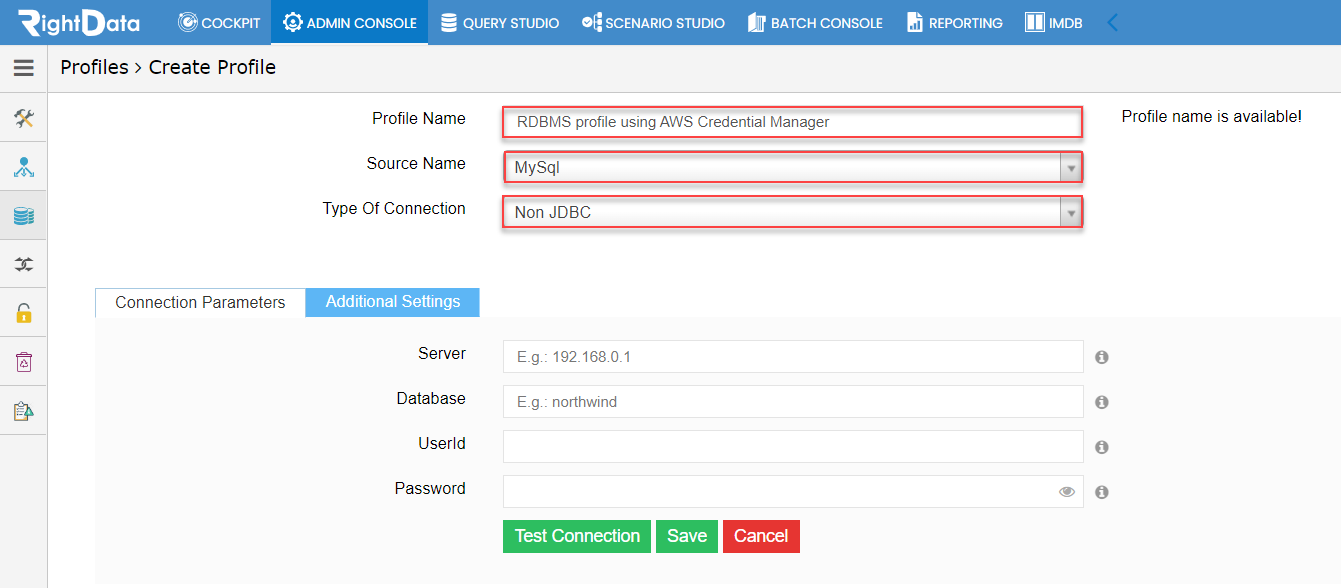

• Add ‘RDBMS profile using AWS Credential Manager’ as the ‘Profile Name’ text.
• Select ‘MySql’ from the ‘Source Name’ drop-down list.
• By default, the ‘Type Of Connection’ is selected as ‘Non JDBC.’

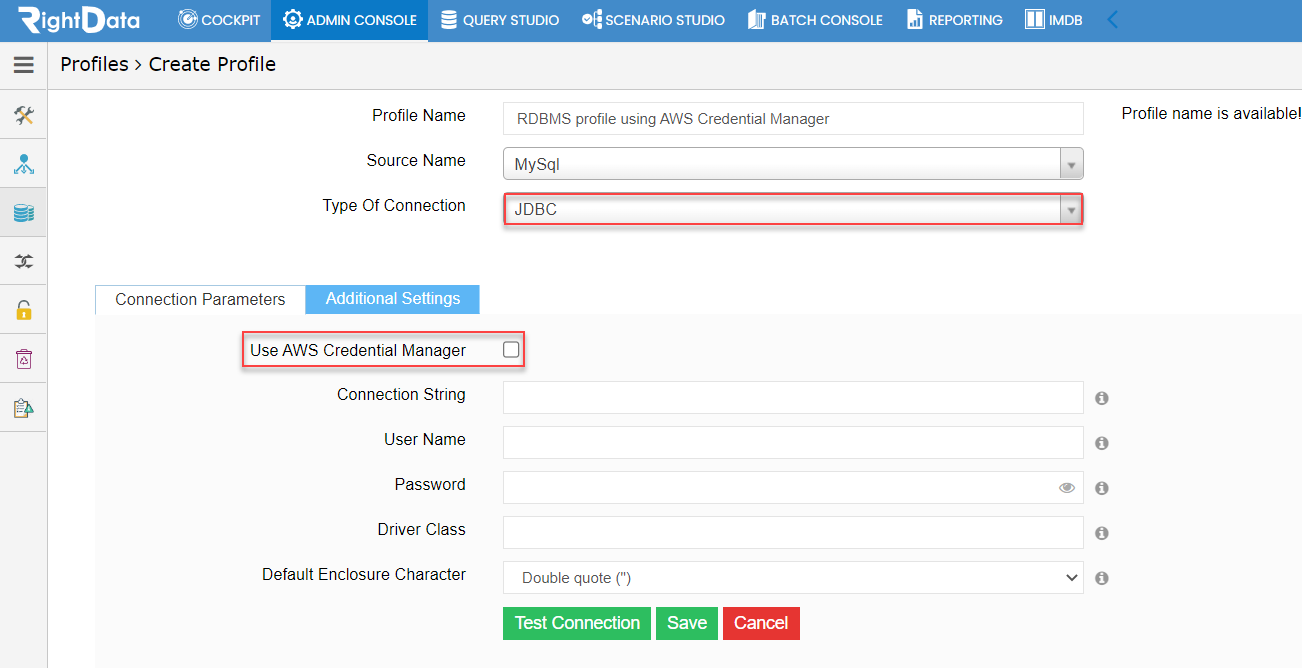

• Now, select ‘JDBC’ from the ‘Type Of Connection’ drop-down list.
• ‘Use AWS Credential Manager’ is added as a new enhancement.

• Checkbox ‘Use AWS Credential Manager’ checkbox.

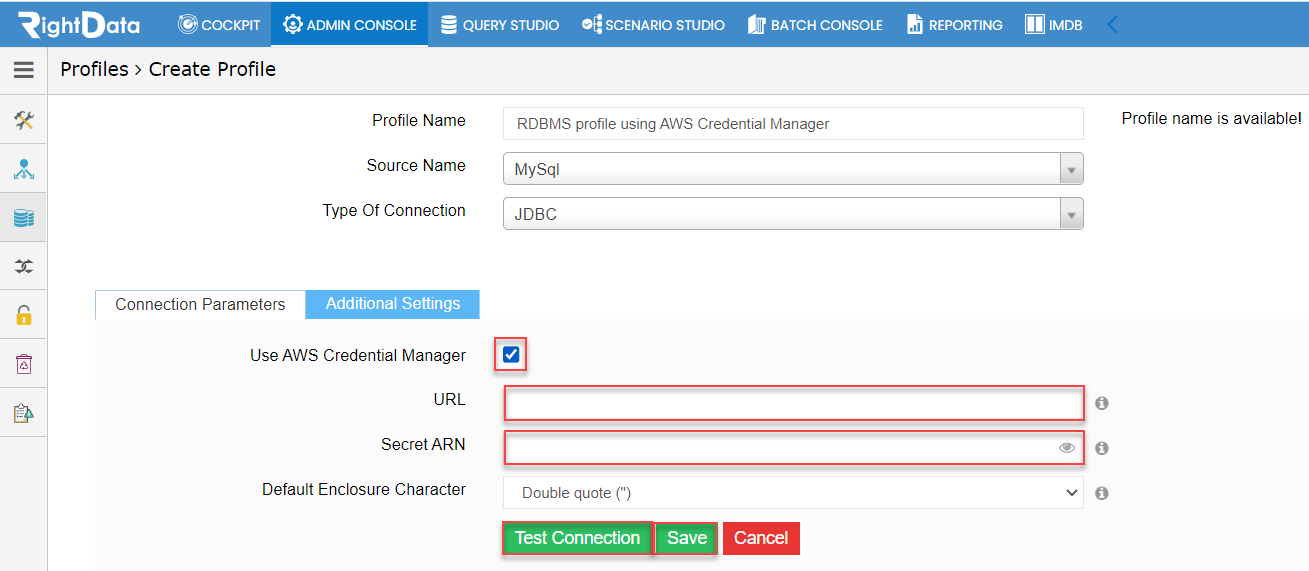

Note: Checking the ‘Use AWS Credential Manager’ checkbox enables ‘URL’ and ‘Secret ARN’ parameters.

• Add these parameters (URL and Secret ARN).
• Click the ‘Test Connection’ button to establish the connection and later ‘Save’ button to save the new connection profile.
