XML can be used as a data source in the Metadata widget of a Query Chain.
To learn more, let us walk through the below steps:
- Click the QUERY STUDIO module.
- Hover on the Query Builder snippet and click the Query Chain option to open it.
- From the Data Source tab, drag and drop a Metadata widget onto the design canvas and double tap it to open.
- A Read data from Metadata Snapshot pop-up window is displayed.
- Select XML from the Profile dropdown list.
- Select the XML Profile and Metadata Attributes as per the requirement.
- Click the Save option to save the widget.
- Click the Output tab.
- Drag and drop an RD Output widget onto the design canvas and double tap it to open.

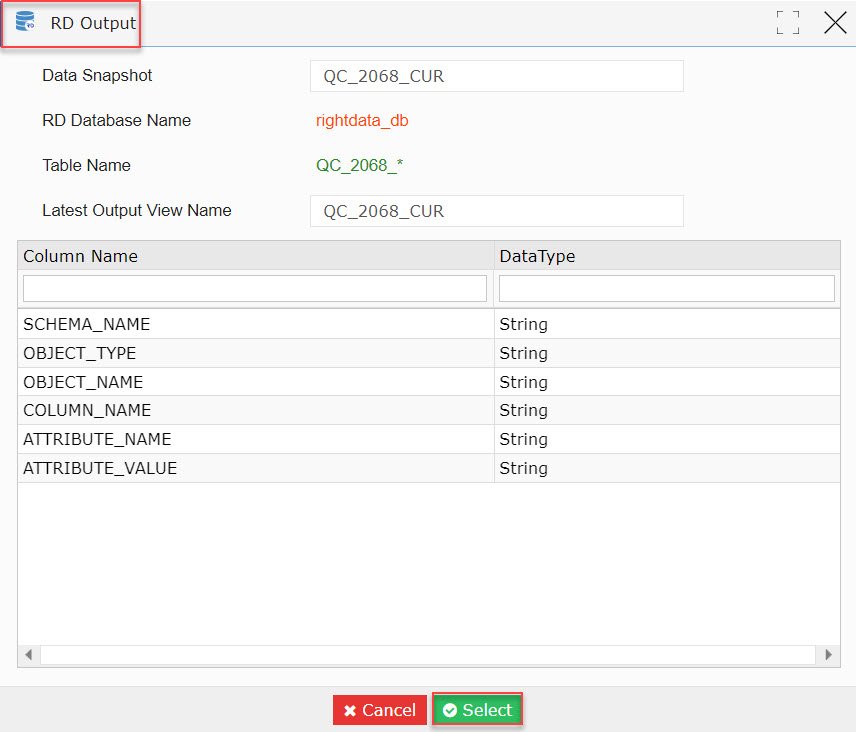

- An RD Output pop-up window is displayed.
- Click the Select option to save and close the widget.

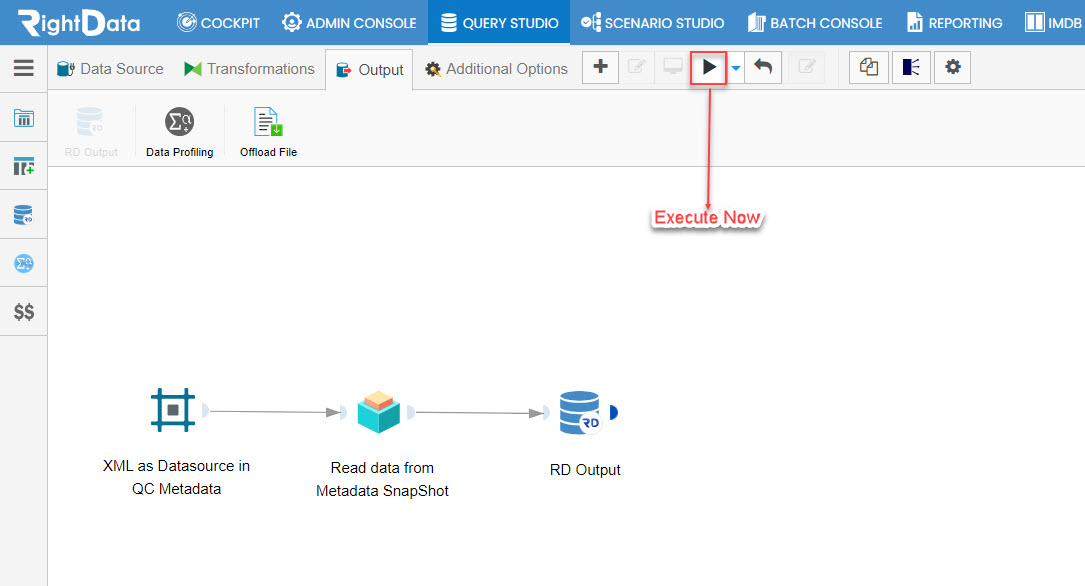

- Click the Execute Now icon to execute the Query Chain.

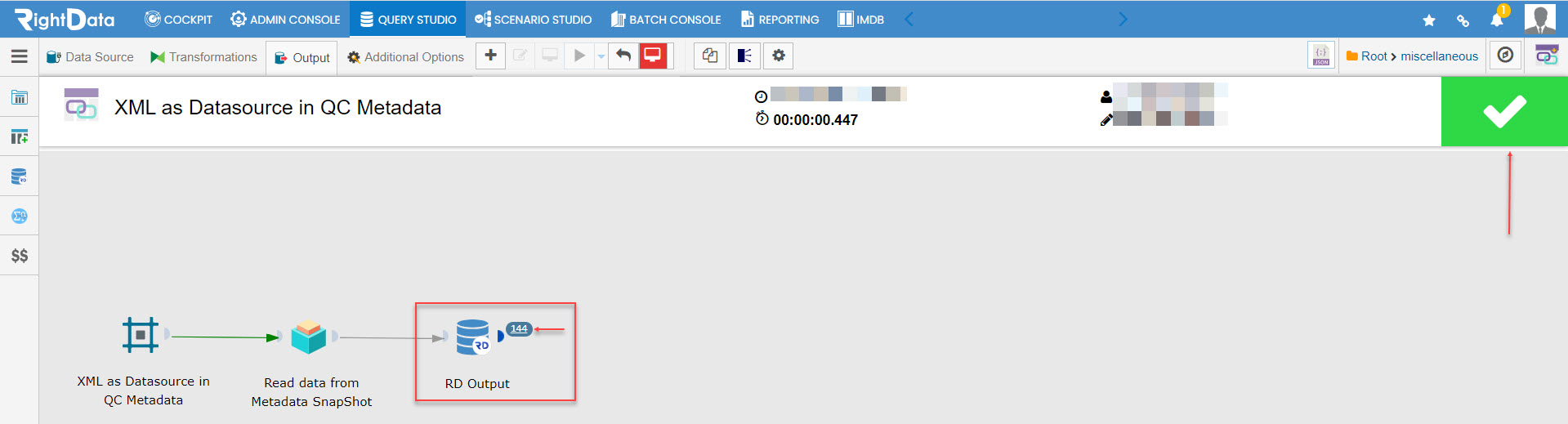

- The Query Chain is Passed here.
- Click the RD Output count 144.

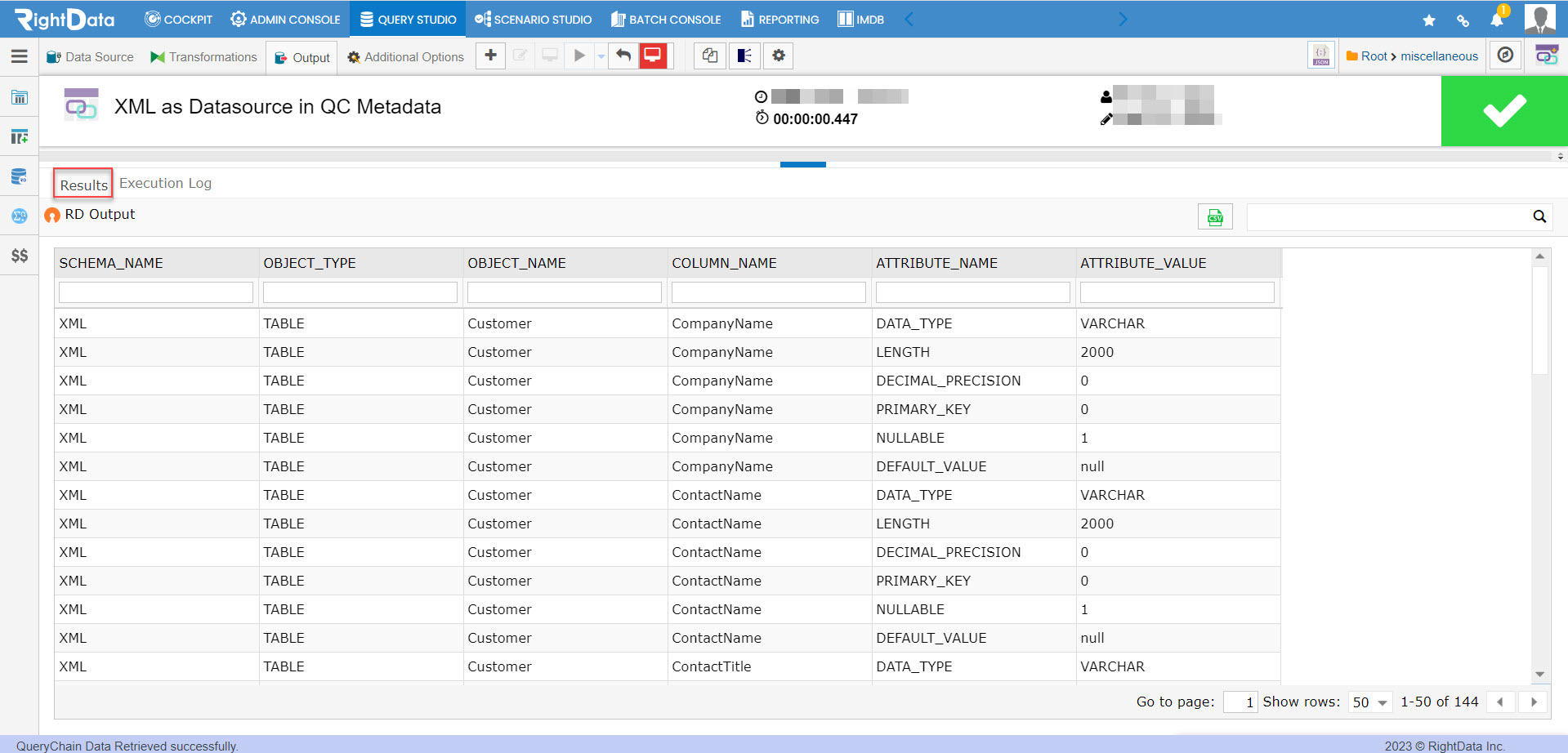

- This action displays the Results tab.
