FDR using Azure DevOps configuration

Using FDR, users can compare a pair of data sets (source and target) to the field by field level and this option is the most comprehensive way to reconcile data between all right data supported data sources. Let’s execute FDR scenario using Azure DevOps configuration.

To learn about FDR, let us walk through the below procedure:

  • Click the SCENARIO STUDIO module.
  • Let’s select and checkbox any scenario that has exceptions.
  • Click on the Edit icon.
  • This action navigates to the specific FDR scenario in edit mode.
  • Click on Additional Options tab.

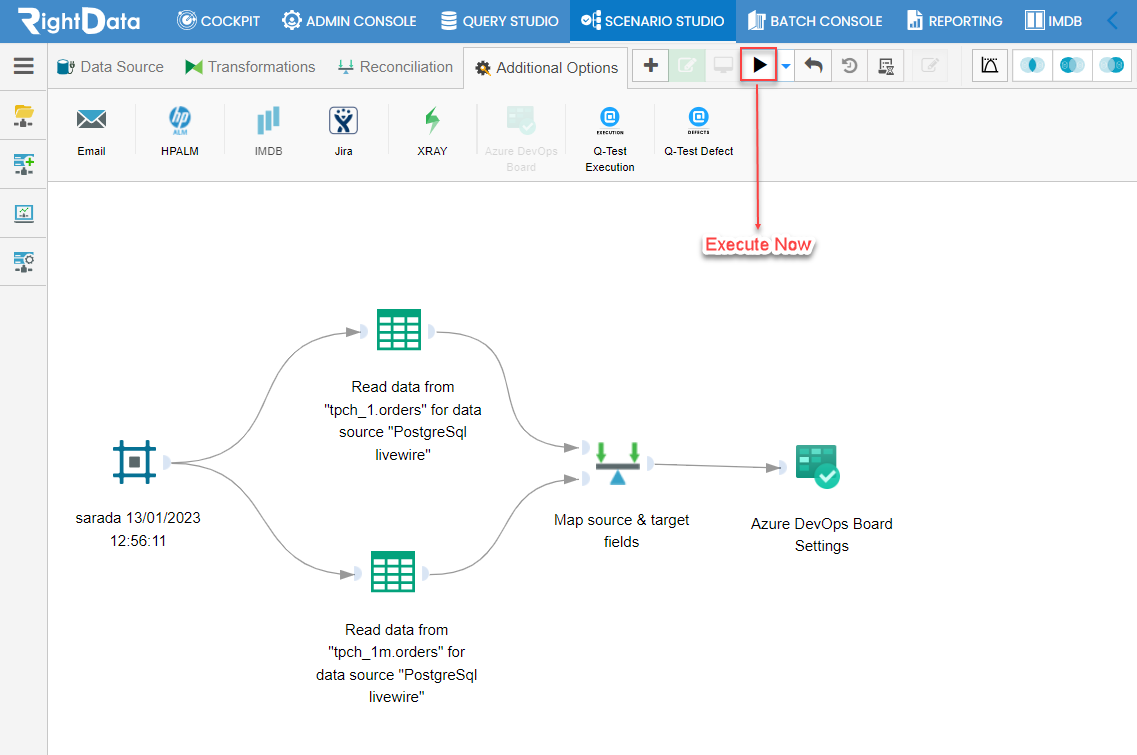

  • Let’s drag and drop Azure DevOps Board icon onto the designer page and double tap on it.

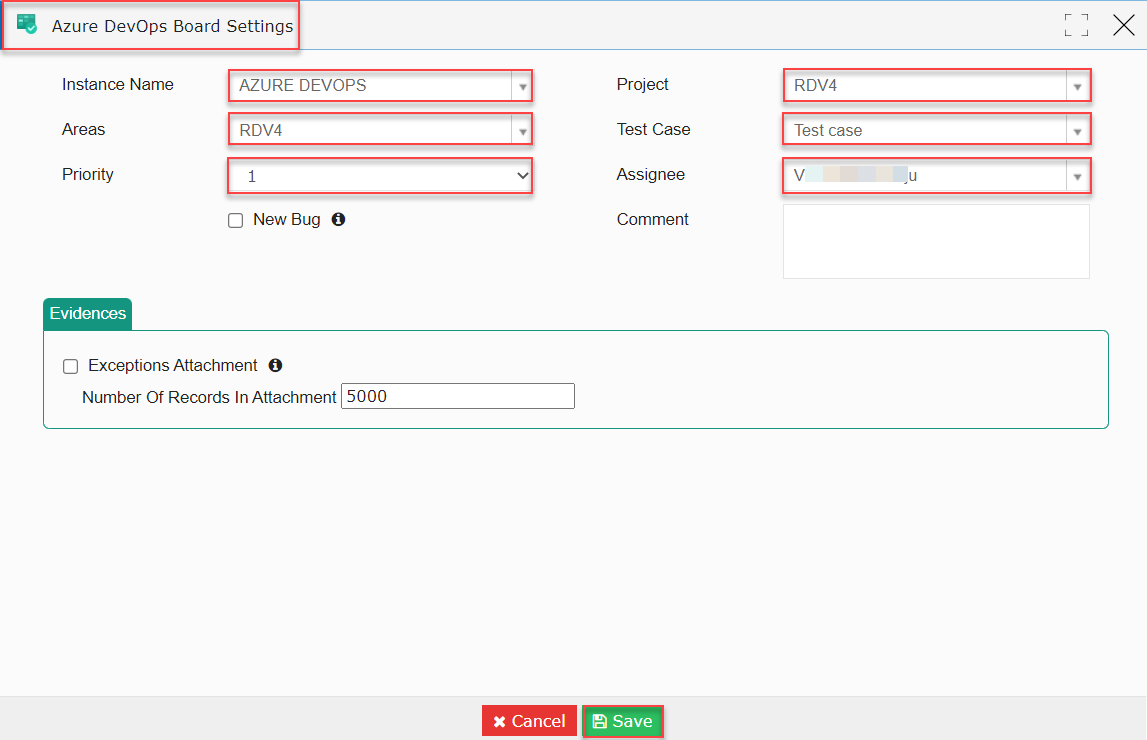

  • An Azure DevOps Board Settings pop-up window is displayed.
  • Let’s select the Instance Name, Project, Areas, Test Case, Priority, and Assignee from the drop-down lists.
  • Click on the Save button to save the widget.
  • Click on the Execute Now button.
  • This action executes the FDR scenario.
  • Let’s click on the Azure DevOps Board Settings green tick icon.

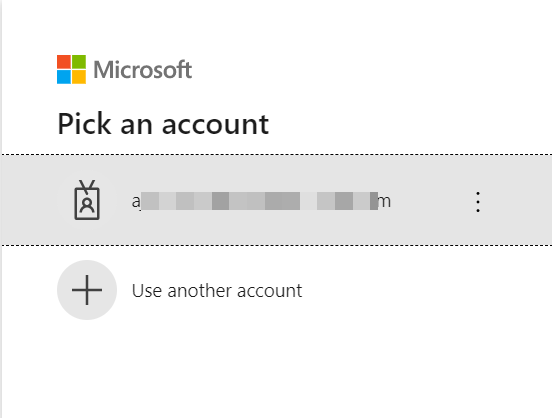

  • This action navigates to the Microsoft user login which is associated with Azure DevOps board dashboard.
  • Login to the Azure DevOps board dashboard.

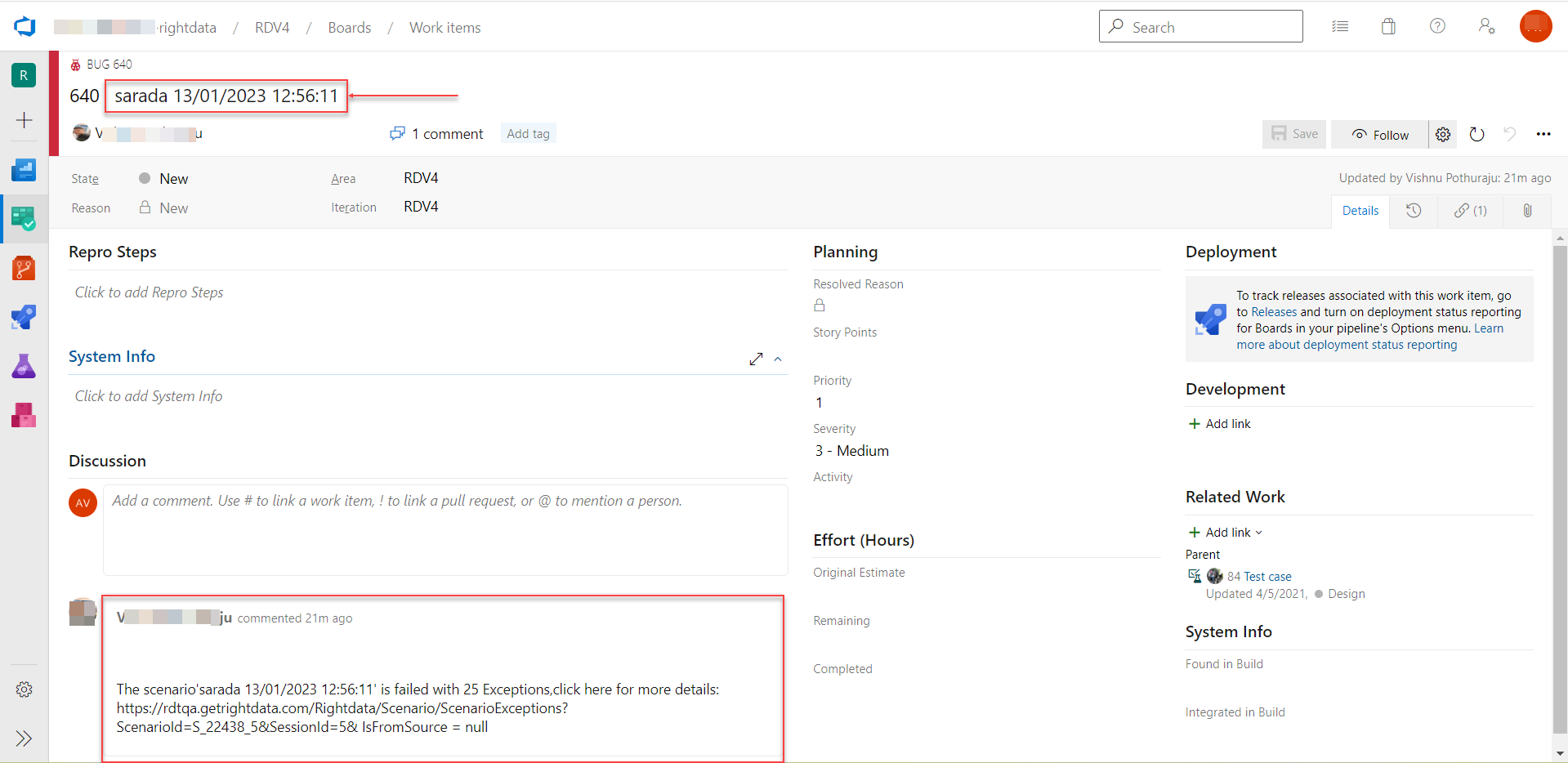

  • Here, we can view details of the Scenario (Sarada 13/01/2023 12:56:11) that has Azure DevOps configuration.
  • We can also view the FDR Scenario URL.
