Iteration and ingestion in Query Chain

In a Query Chain, we can iterate over a set of values and ingest the data. The iteration process takes place looping in between a set of key values. Here in this example, we considered SAP VBAK (Sales Document: Header Data) table and VBELN (Sales and Distribution Document Number) column as one of the primary keys.

Steps involved:

  1. Create a Query using static values
  2. Create a variable using an output Query
  3. Add the created variable in a Query
  4. Run the Query Chain using an output Query



Create a Query using static values:

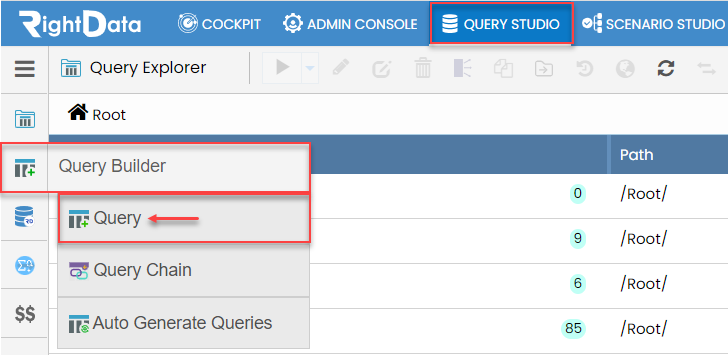

  • Click the QUERY STUDIO module.
  • Hover on Query Builder snippet and click on Query.

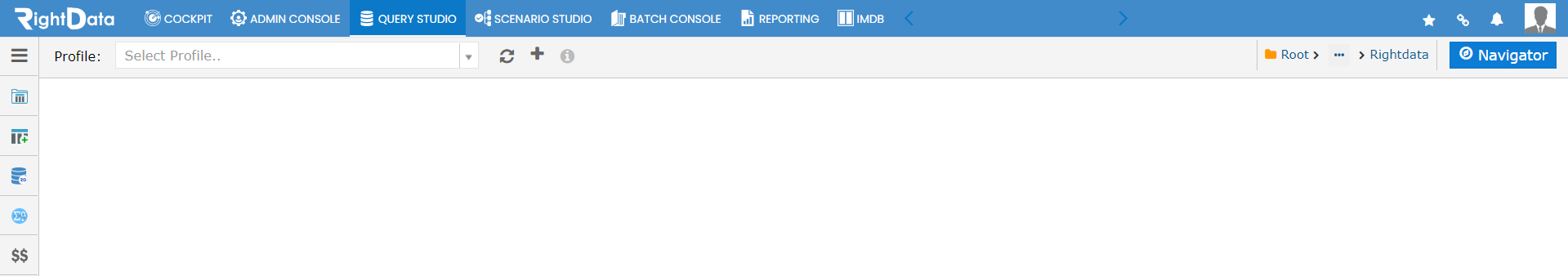

  • This action navigates to the Query page.
  • Let’s select RD Datastore from the Profile drop-down list.

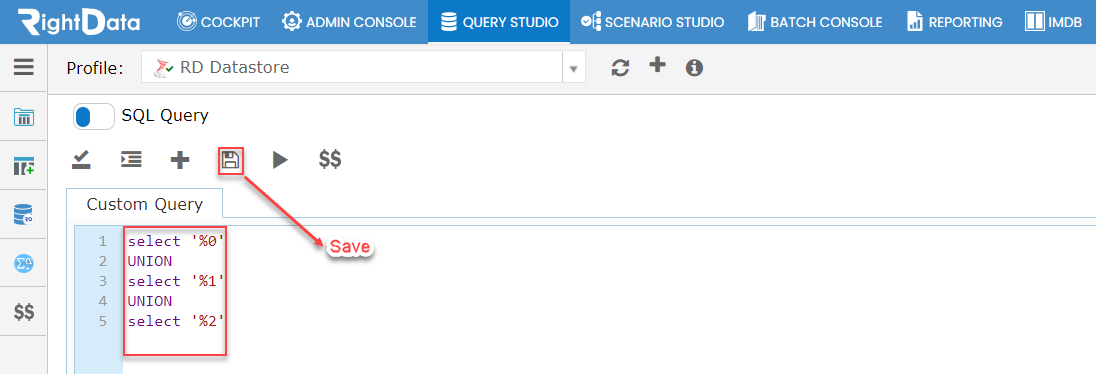

  • Add the required values and click on the Save.

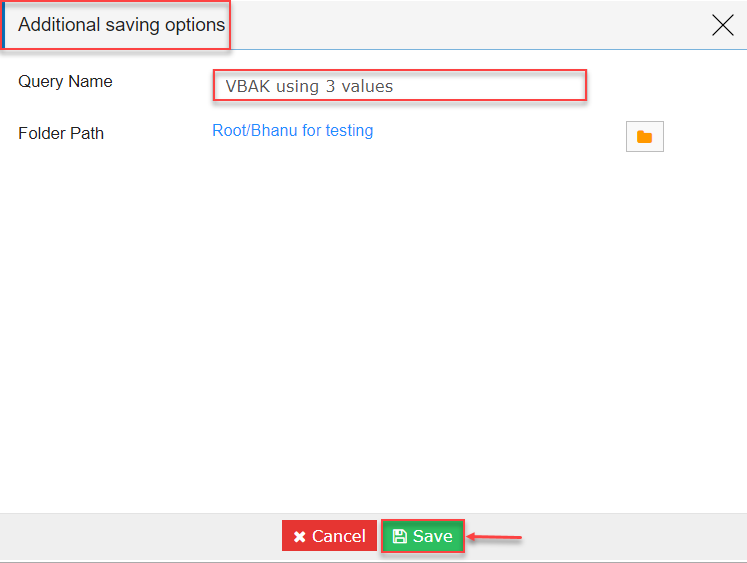

  • An Additional saving options pop-up window is displayed.
  • Under the Query Name text field, let’s add VBAK using 3 values.
  • Select the desired folder path and click on Save.

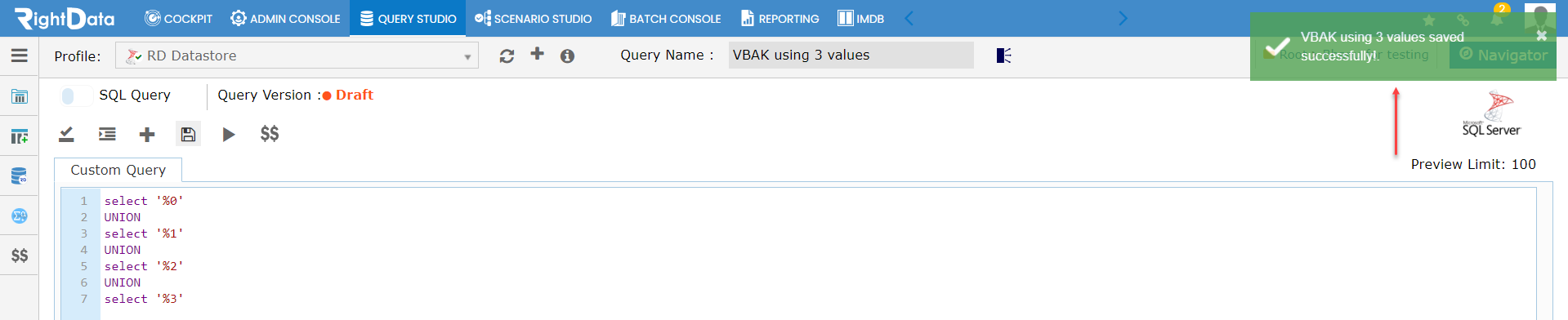

  • A toaster message VBAK using 3 variables saved successfully! is displayed.



Create a variable using an output Query:

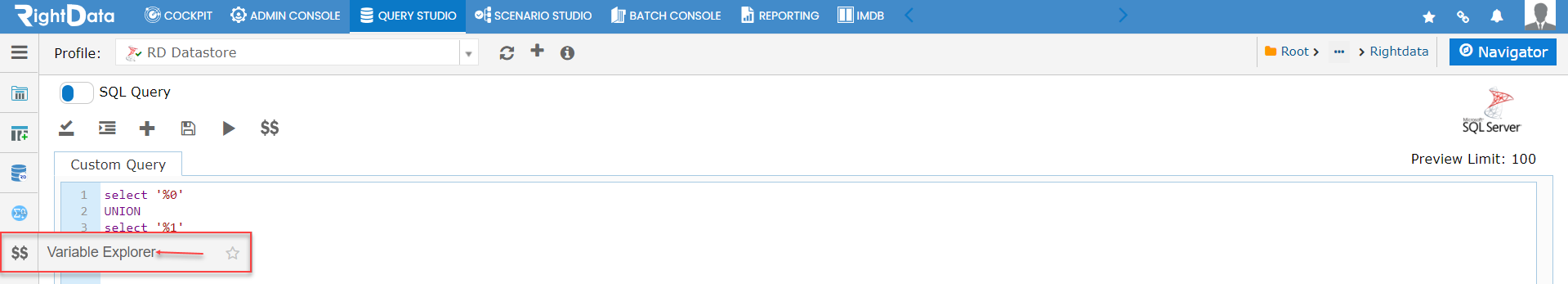

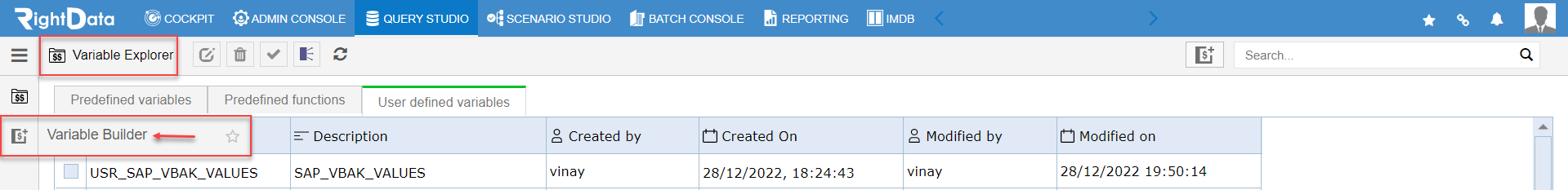

  • Hover and click on Variable Explorer.
  • This action navigates to the Variable Explorer
  • Click on Variable Builder.

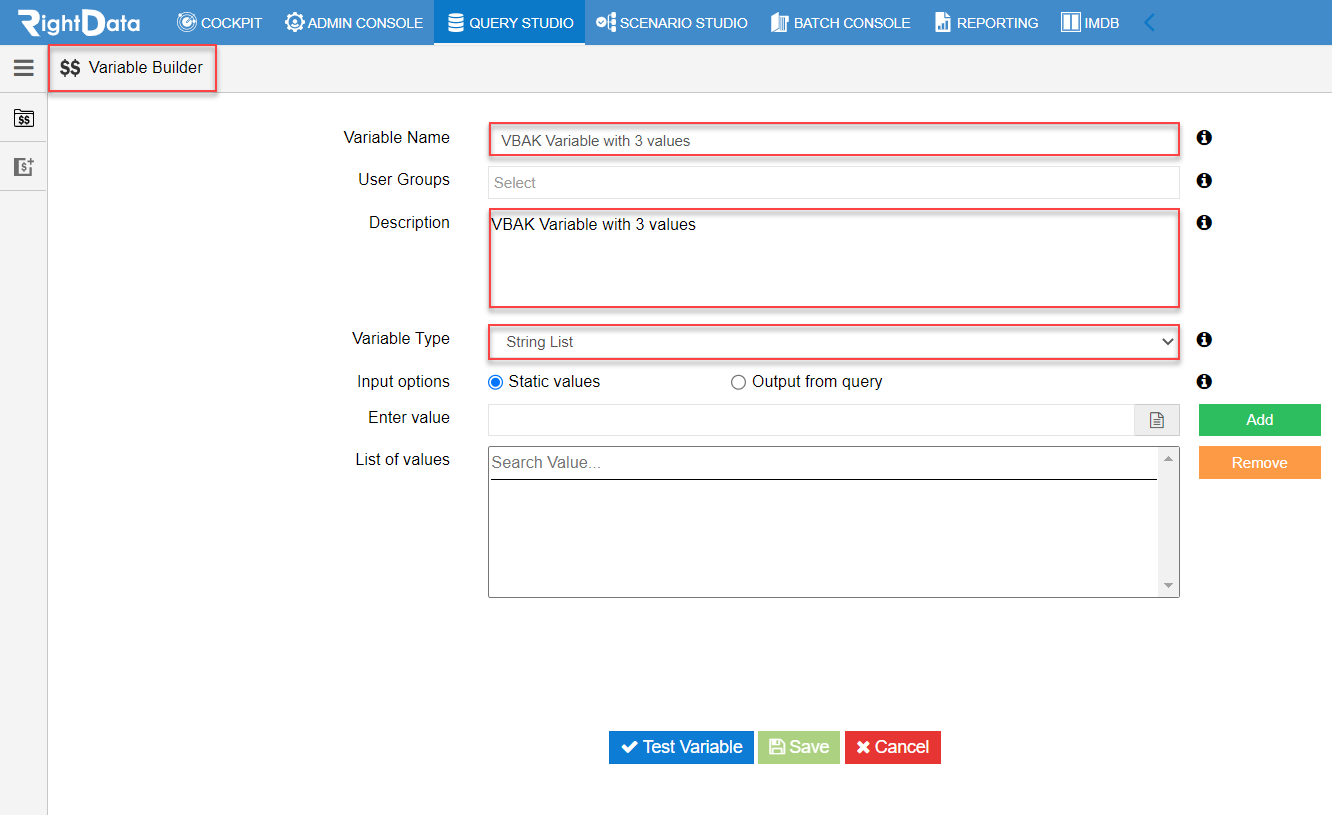

  • This action navigates to Variable Builder

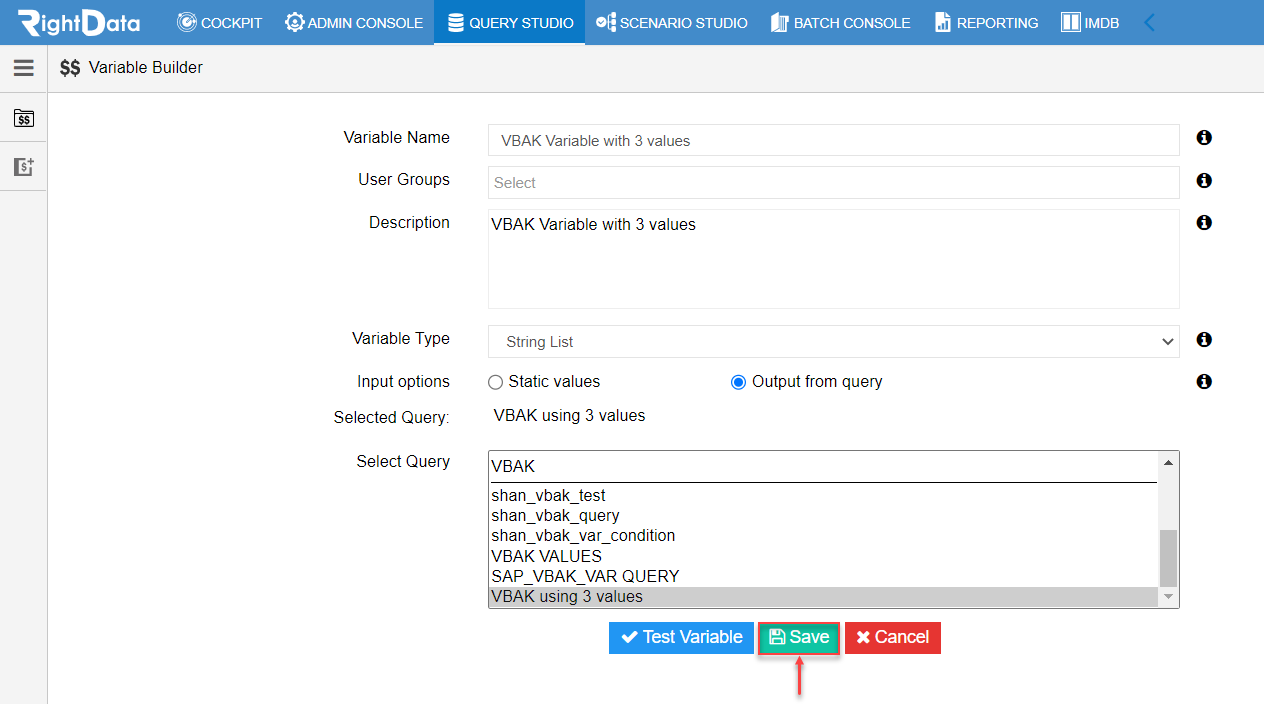

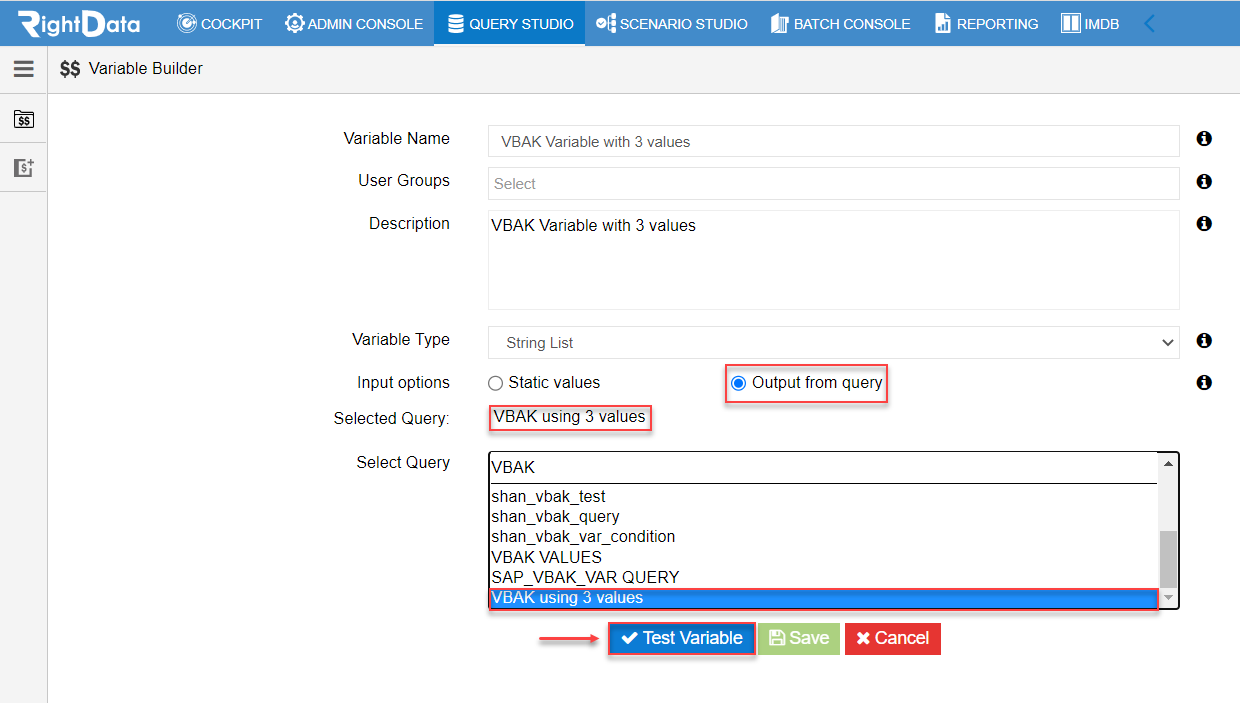

  • Add the Variable Name, and Description text fields and select the Variable Type drop-down list.
  • Select Output from query for Input options.
  • Select VBAK using 3 values for the Select Query.
  • Click Test Variable button.

Note: Here, the Selected Query is updated accordingly.

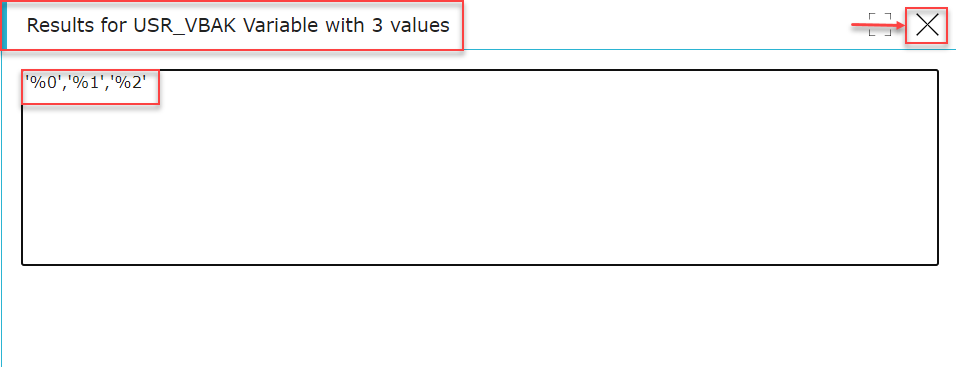

  • A Results for USR_VBAK Variable with 3 values pop-up window is displayed that shows the variables list.
  • Close this window.
  • Click on Save.

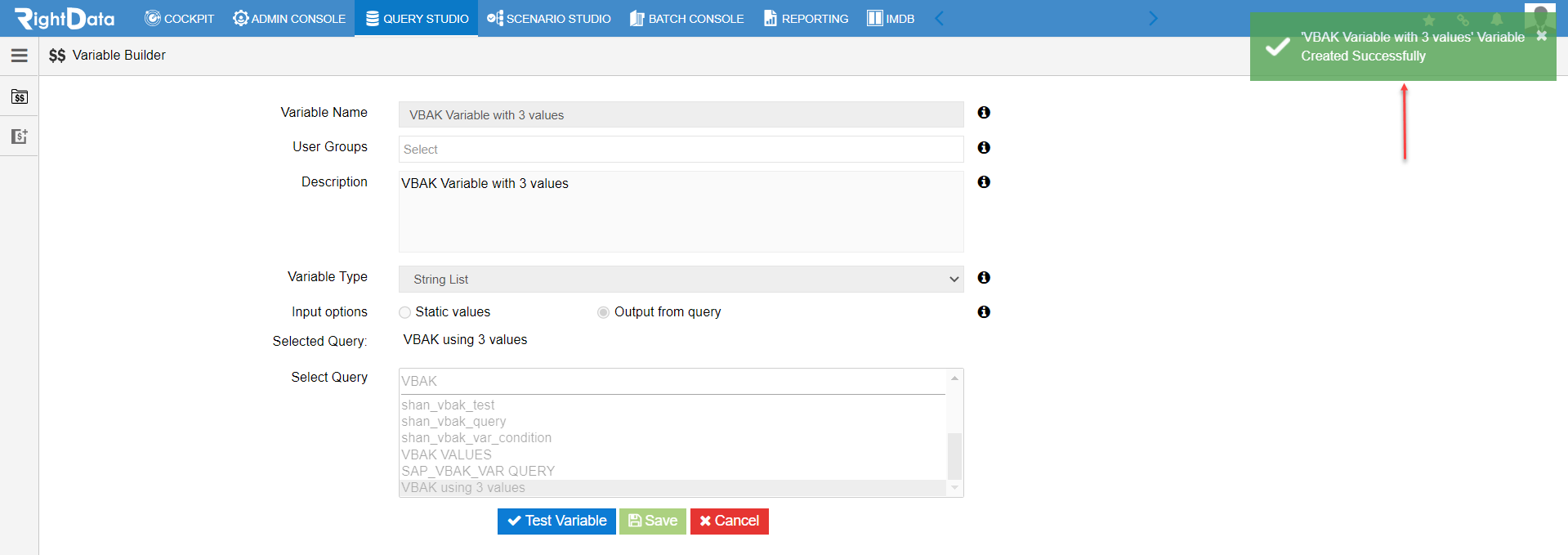

  • A toaster message ‘VBAK Variable with 3 values’ Variable Created Successfully is displayed.



Add the created variable in a Query:

  • Click the QUERY STUDIO module.
  • Hover on Query Builder snippet and click on Query.
  • This action navigates the user to the Query page.

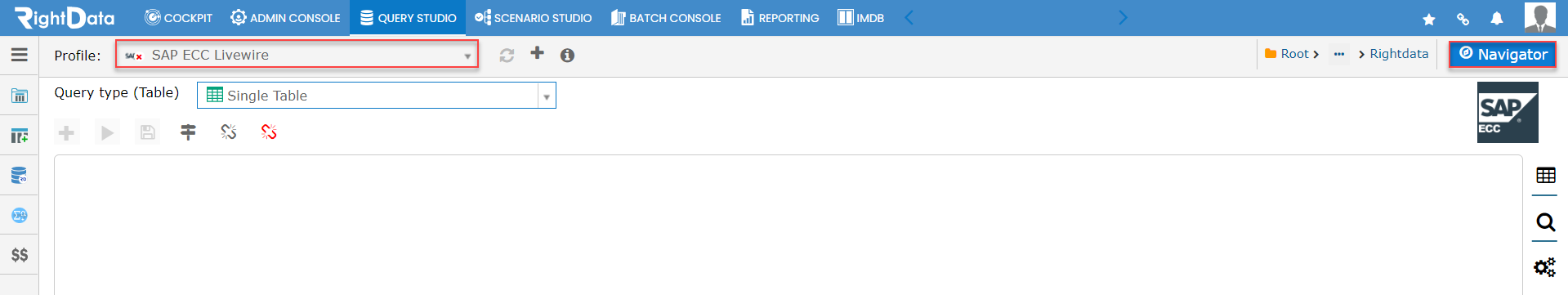

  • Select SAP ECC Livewire from the Profile drop-down list.
  • Click the Navigator button.

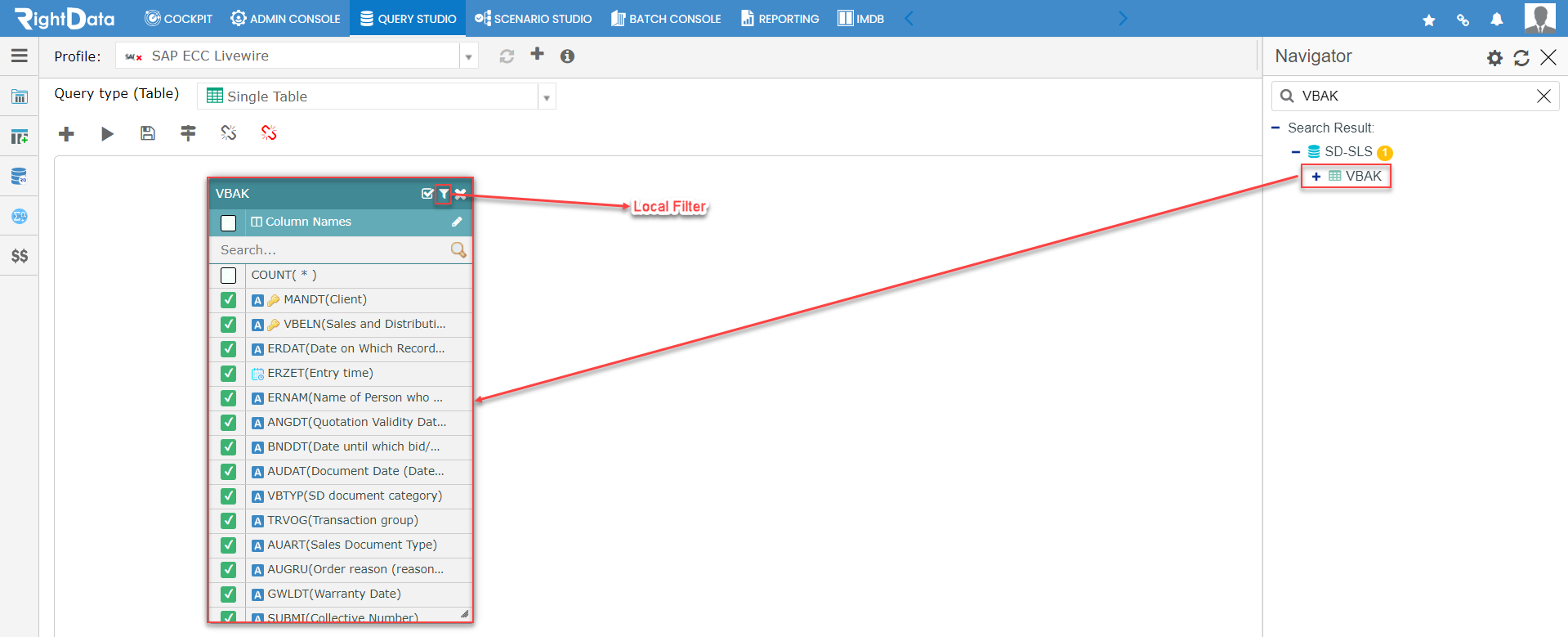

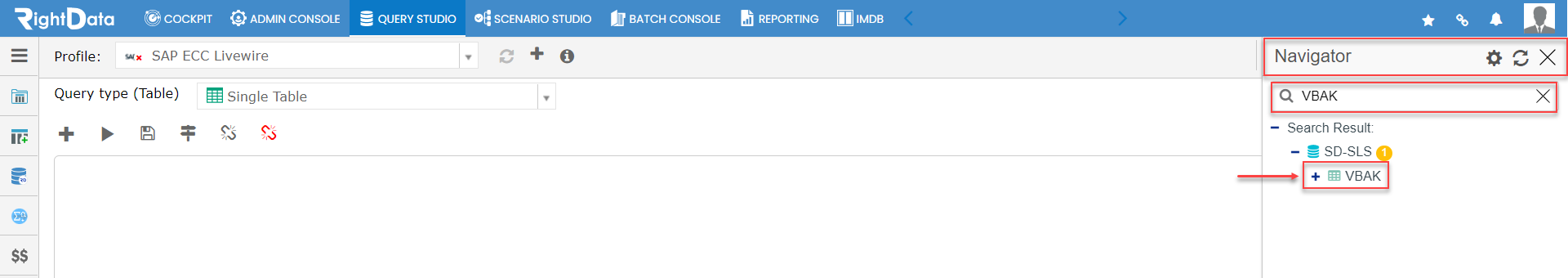

  • Search for VBAK table and click on it.
  • This action loads the table.
  • Click the Local Filter icon.

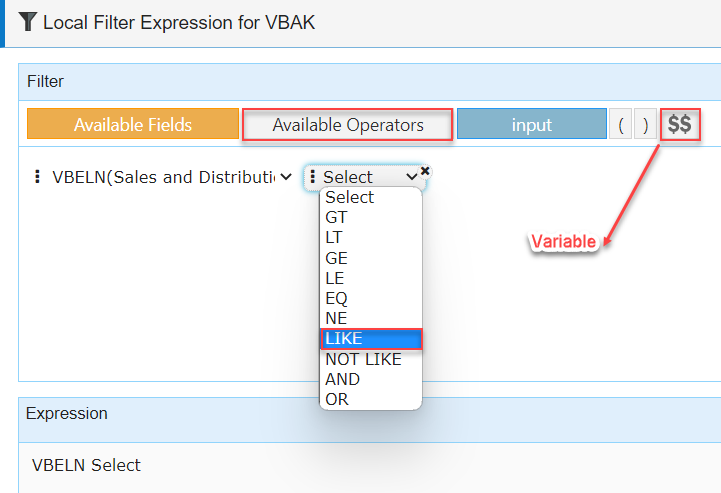

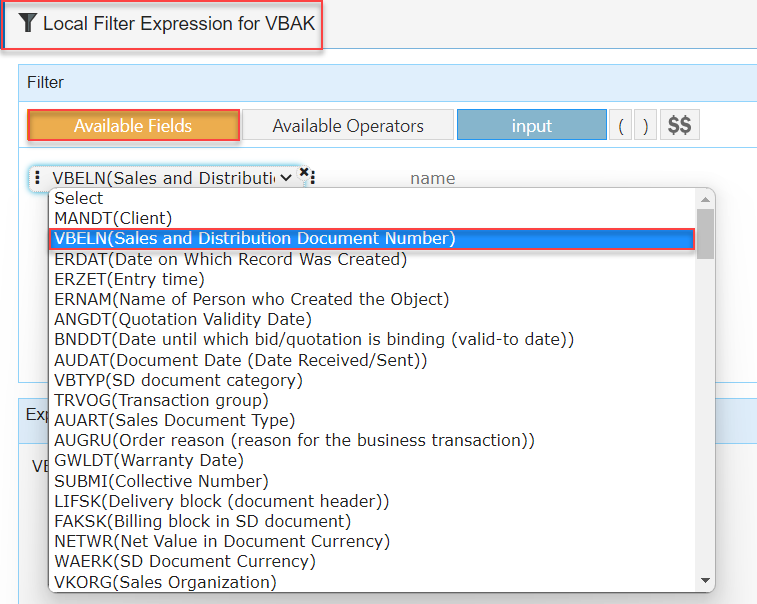

  • A Local Filter Expression for VBAK pop-up window is displayed.
  • Drag the Available Fields option and select VBELN(Sales and Distribution Document Number) column from the drop-down list.
  • Drag the Available Operators and select Like from the drop-down list.
  • Click the Variable icon.

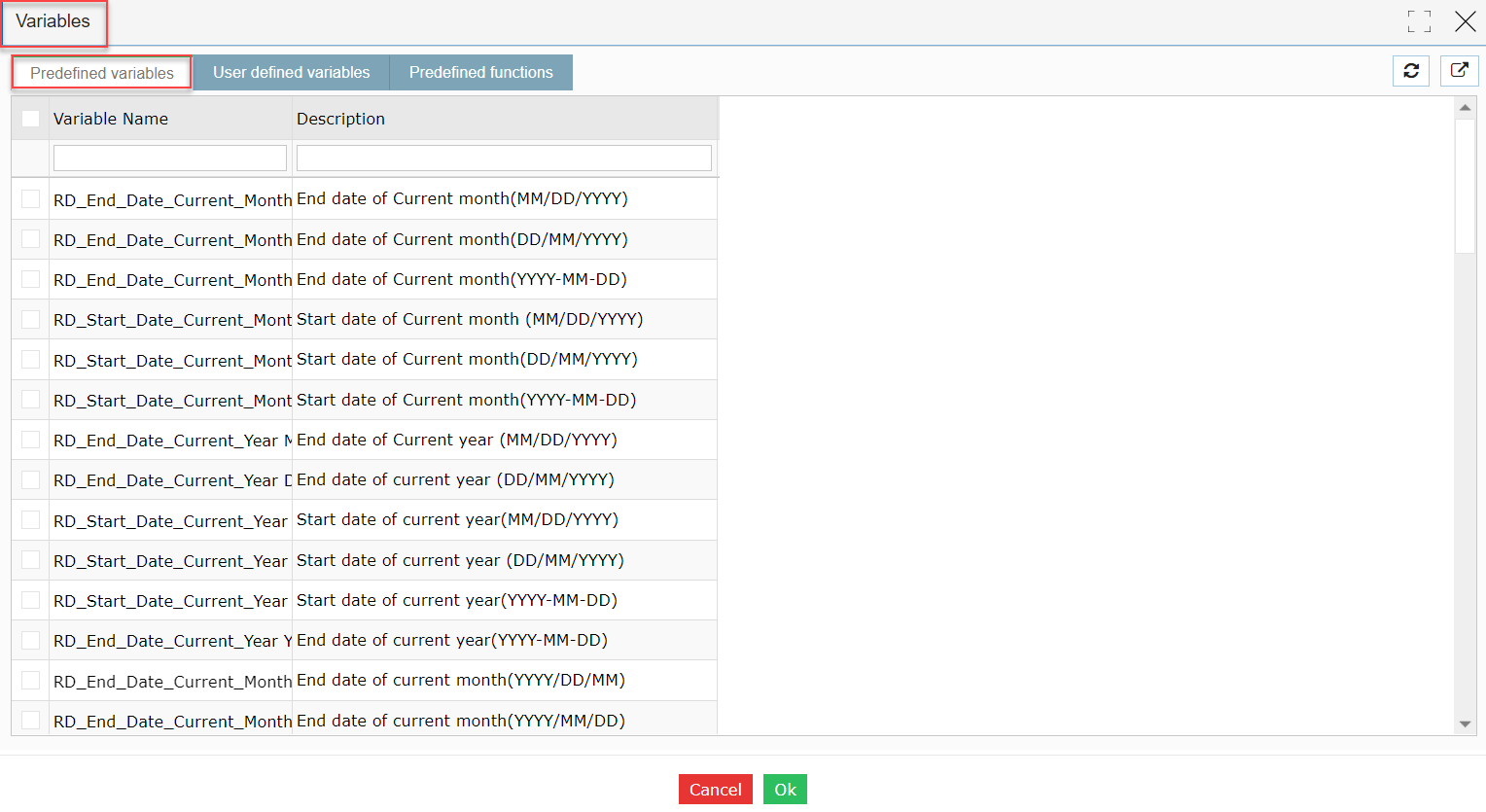

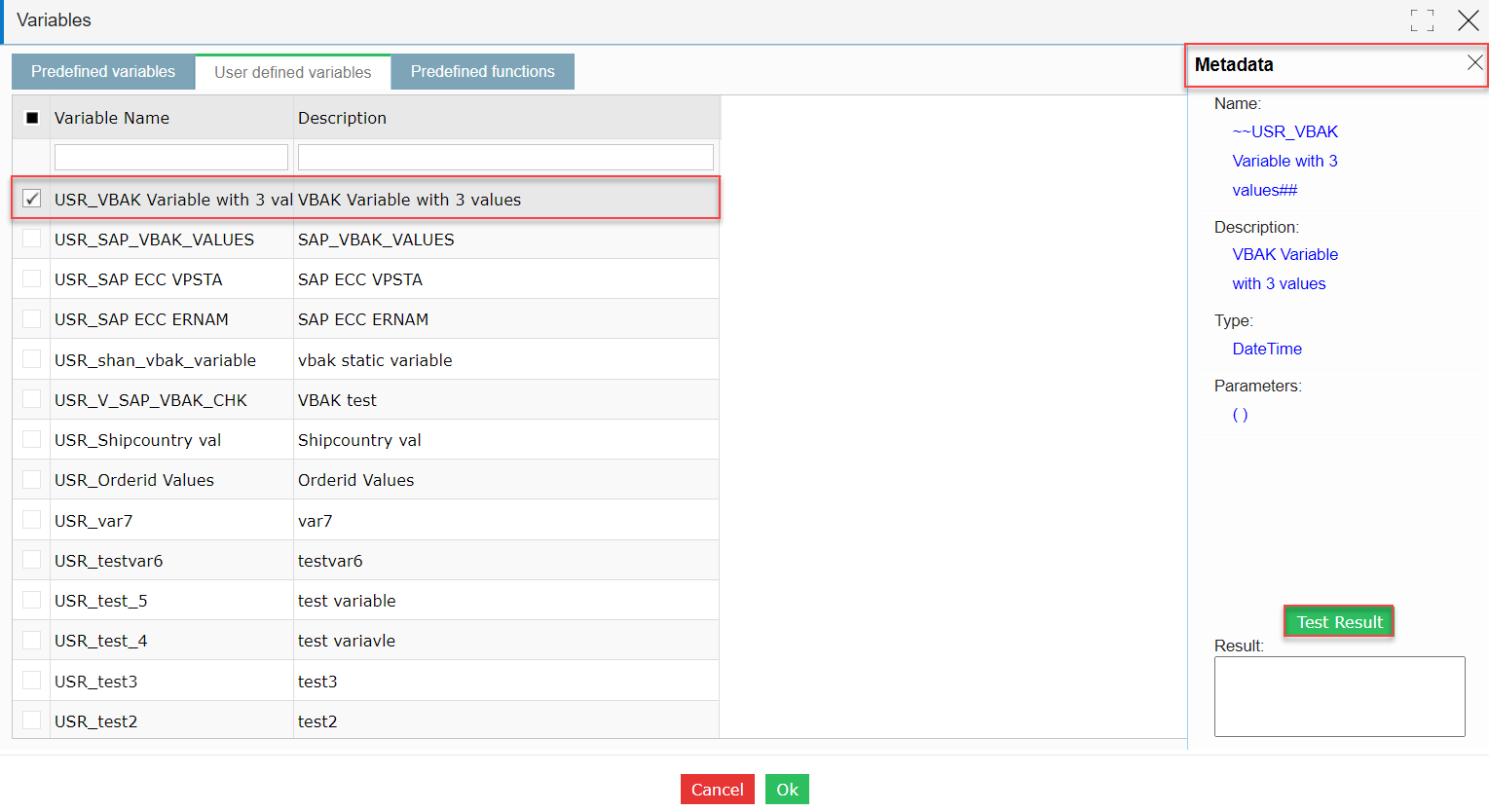

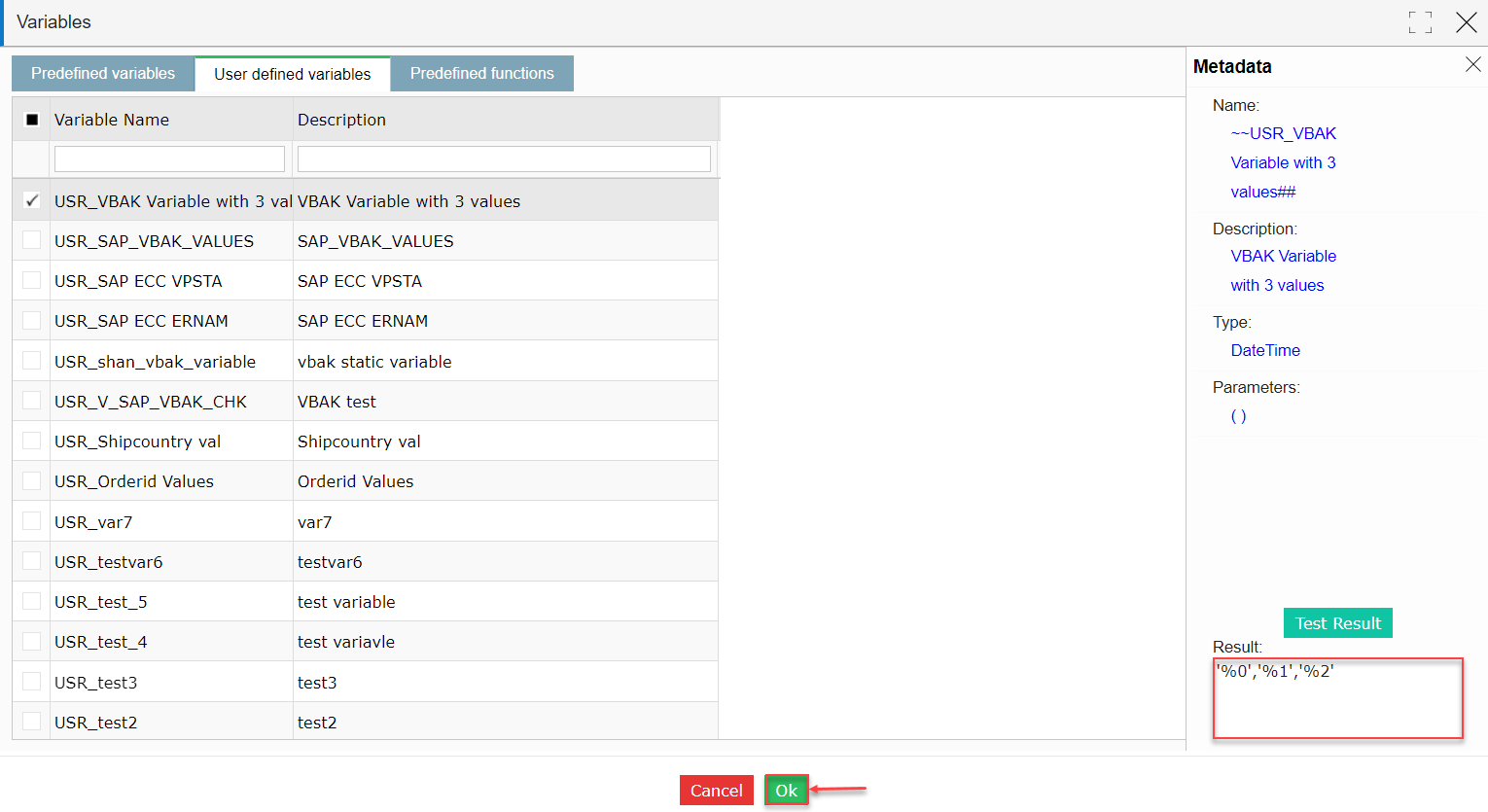

  • A Variables pop-up window is displayed.

Note: By default, Predefined variables tab is selected.

  • Select the User defined variables tab and select the variable USR_VBAK Variable with 3 values which loads the metadata slide screen.
  • Click on Test Result.
  • The list of values is loaded in the Result text field.
  • Click Ok to load the variable.

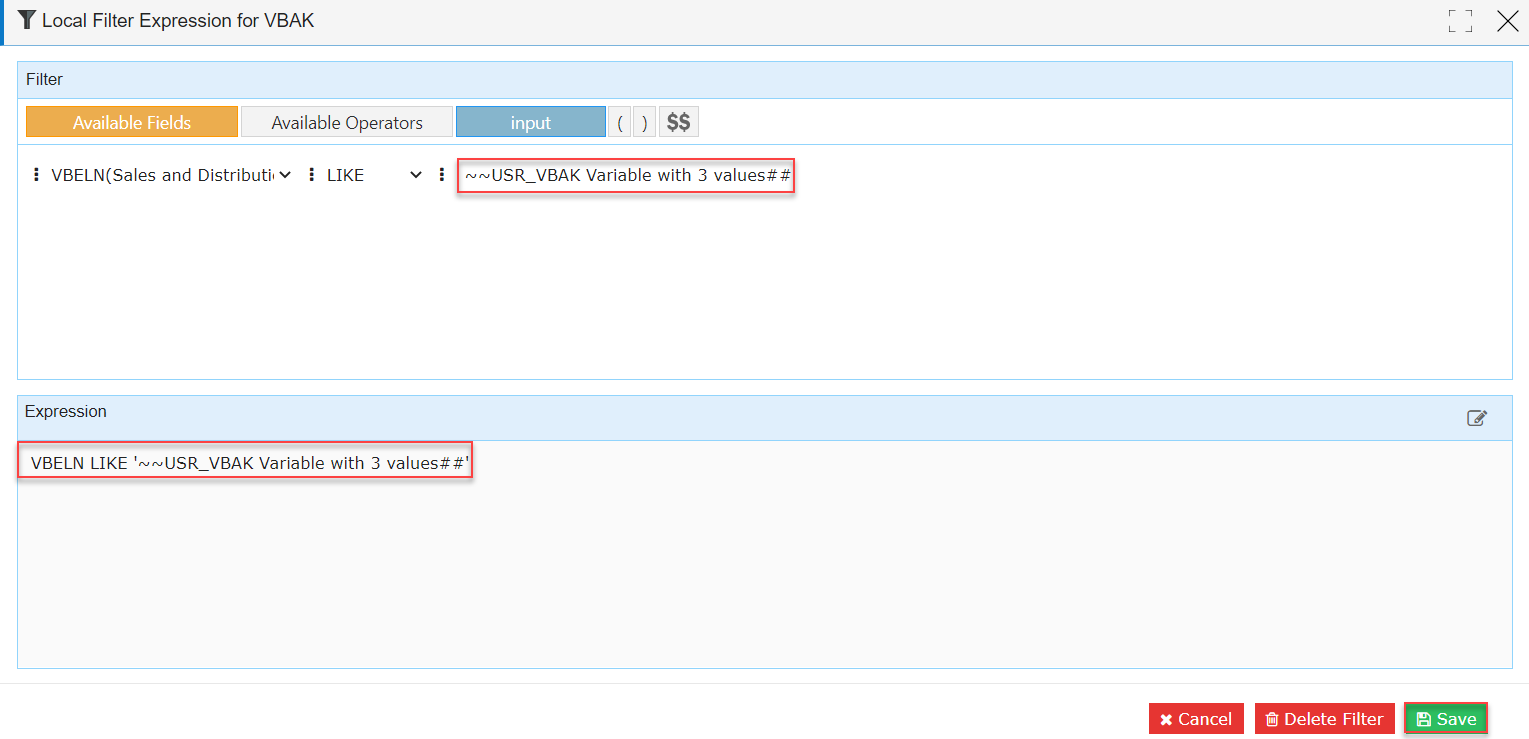

  • The expression VBELN LIKE ‘~ ~USR_VBAK Variable with 3 values # #’ is updated accordingly.

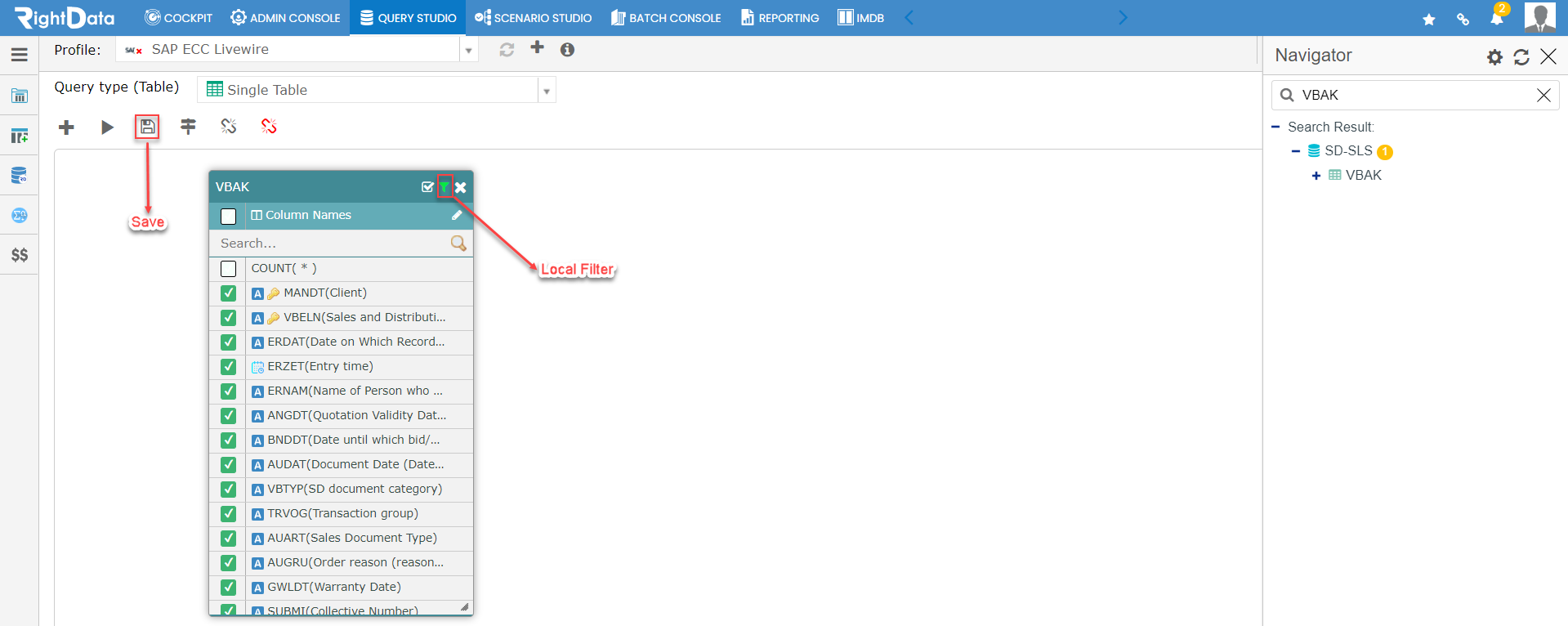

  • Click on Save to save the filters.
  • The Local Filter icon is turned green which indicates the filter condition is added successfully.
  • Click on Save.

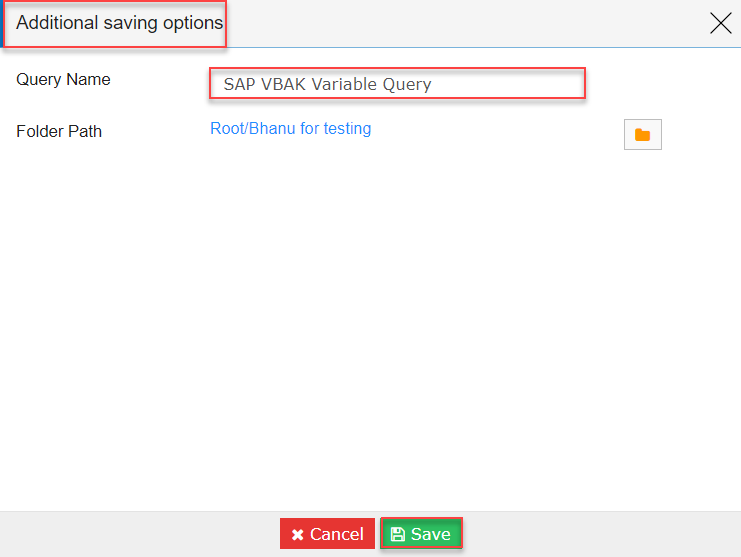

  • An Additional saving options pop-up window is displayed.
  • Add SAP VBAK Variable Query under the Query text field.
  • Click on Save.

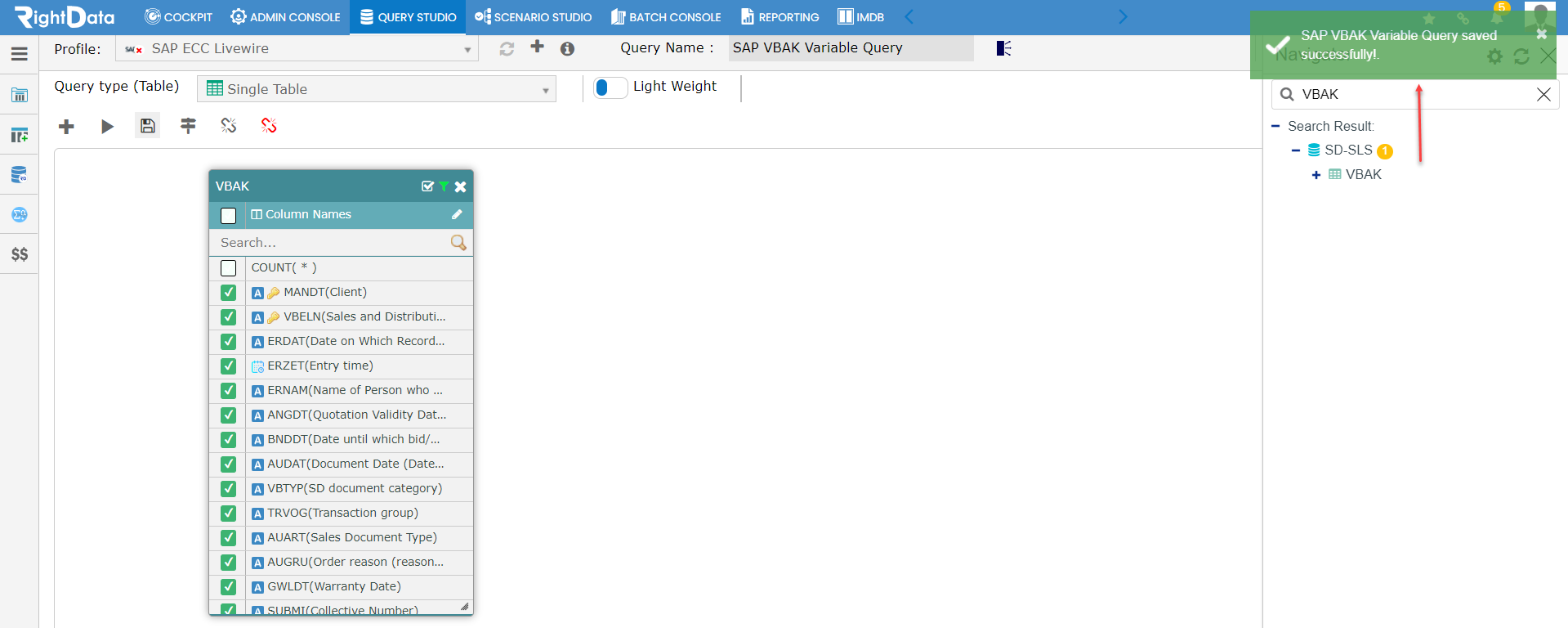

  • A toaster message SAP VBAK Variable Query saved successfully! is displayed.



Run the Query Chain using an output Query:

  • Click the QUERY STUDIO module.

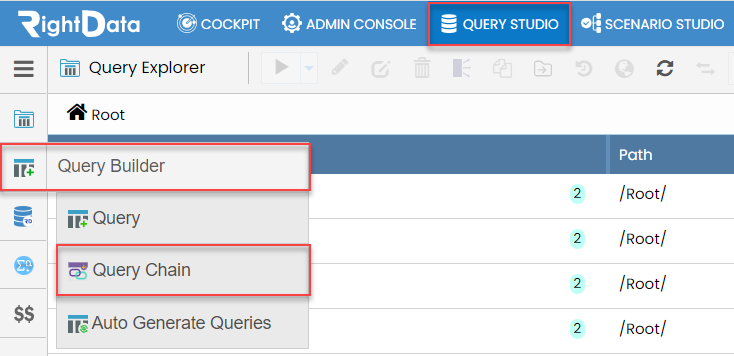

  • Hover on the Query Builder snippet from the left pane options.
  • Click the Query Chain option.

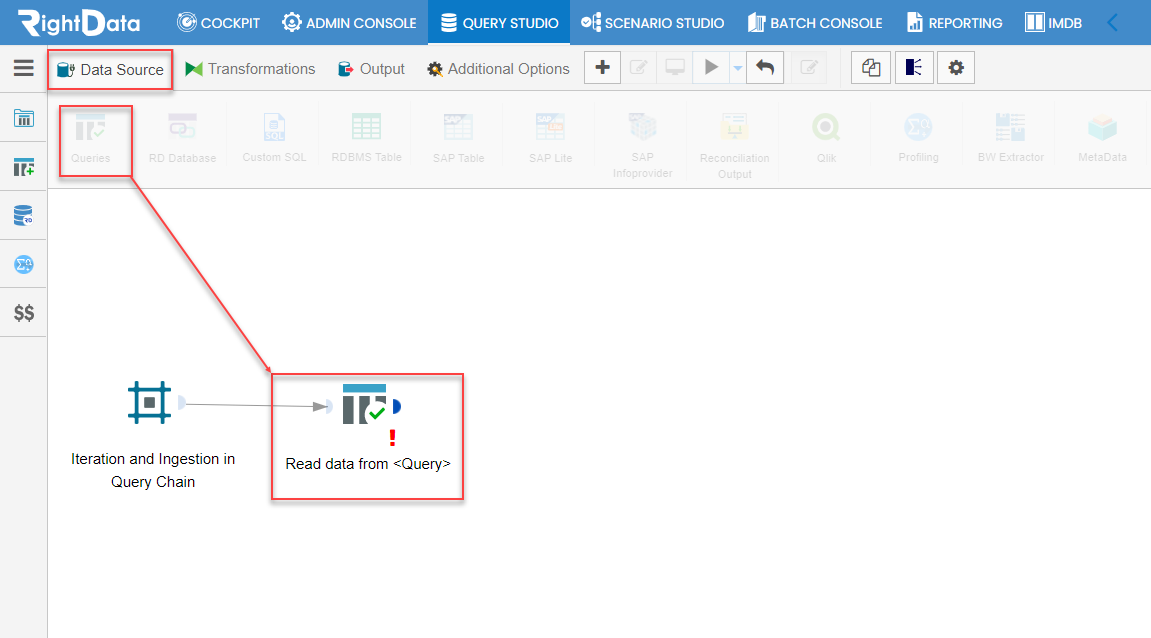

  • From the Data Source tab, drag and drop  Queries icon and double-tap on it.

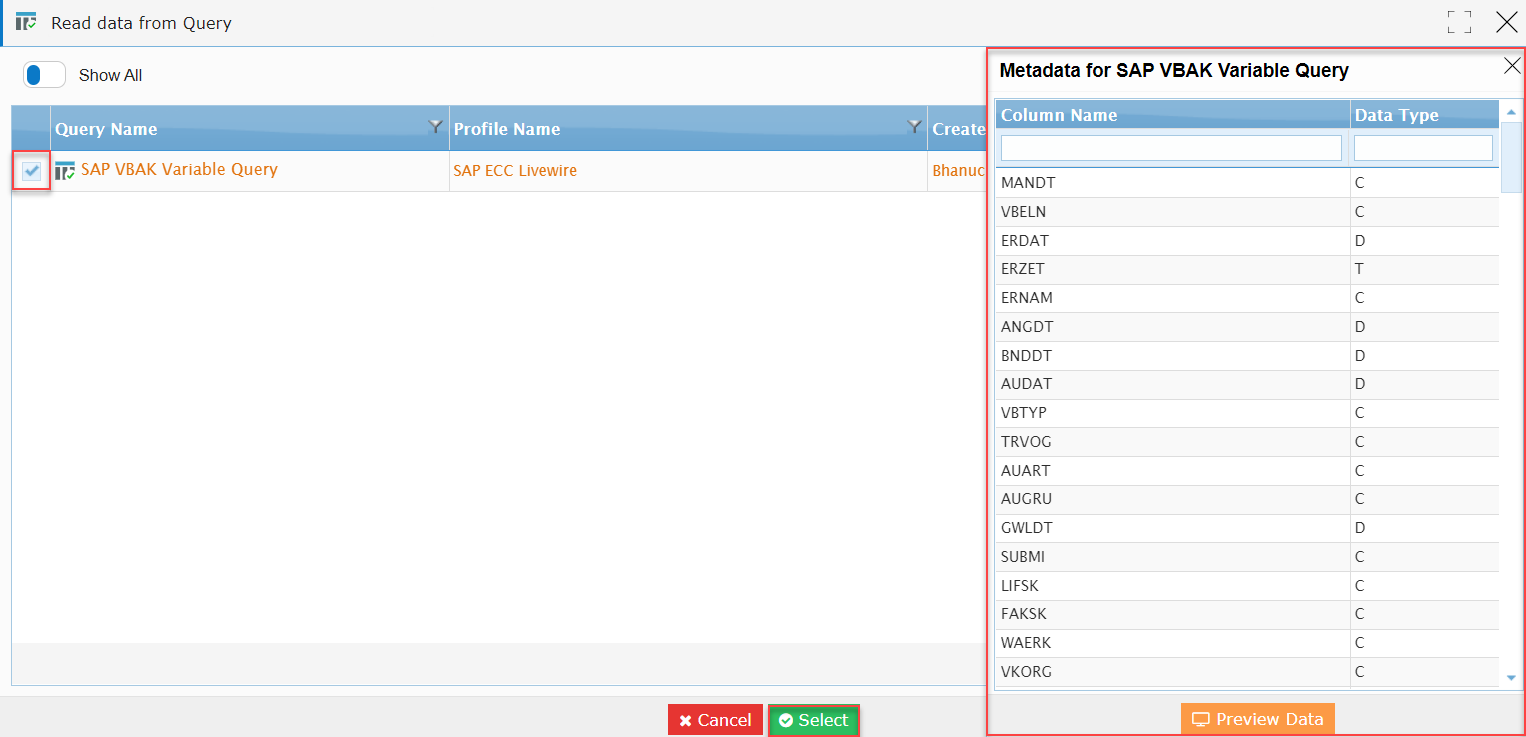

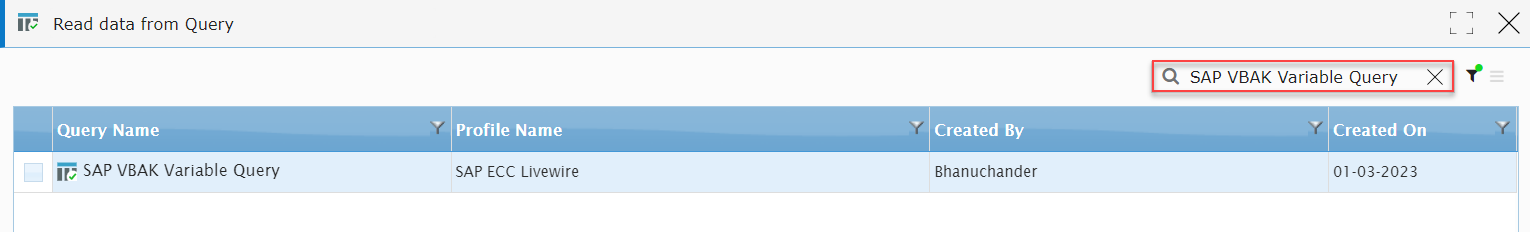

  • A Read data from Query pop-up window is displayed.
  • Let’s search with SAP VBAK Variable Query to populate the results.
  • Select and checkbox SAP VBAK Variable Query to view its metadata as a slide screen.
  • Click on Select button to save the Queries widget.

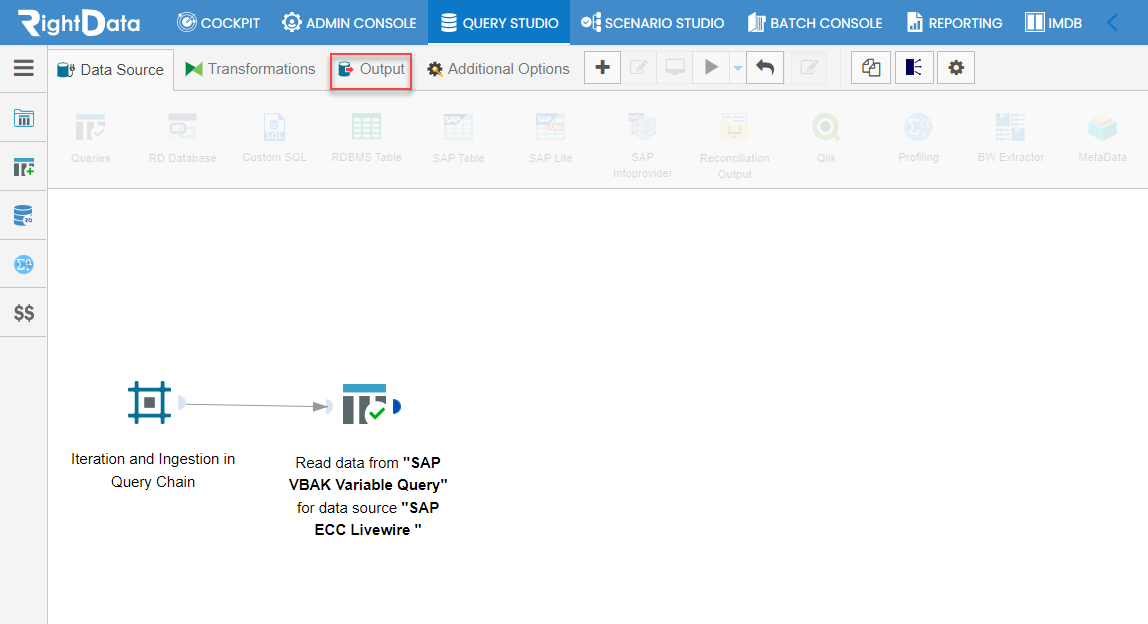

  • Click the Output tab.

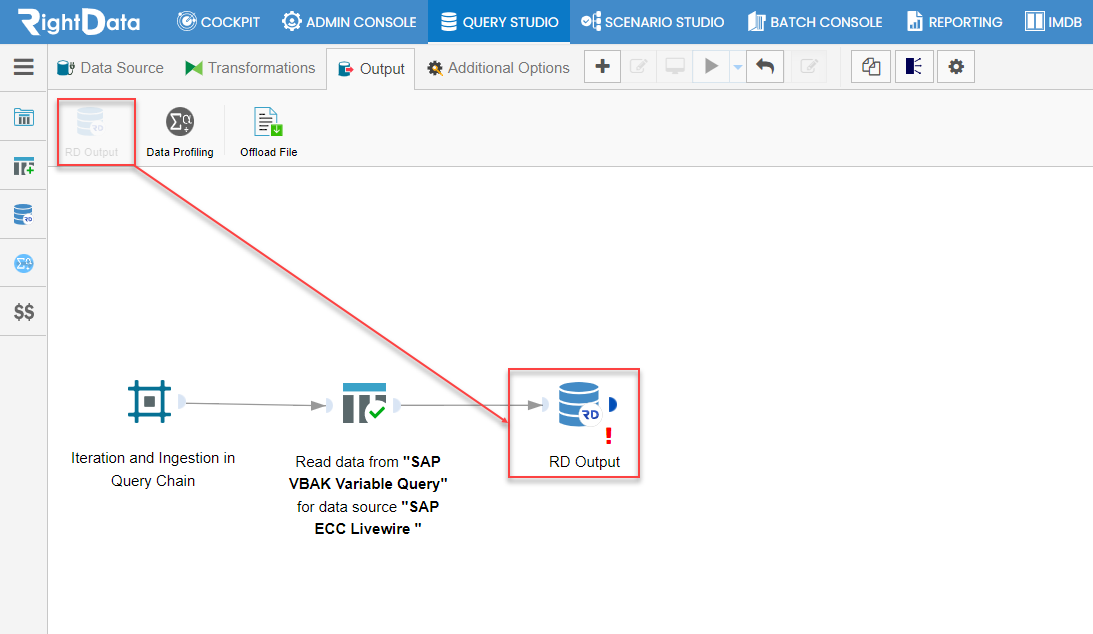

  • Let’s drag and drop an RD Output icon and double tap on it.

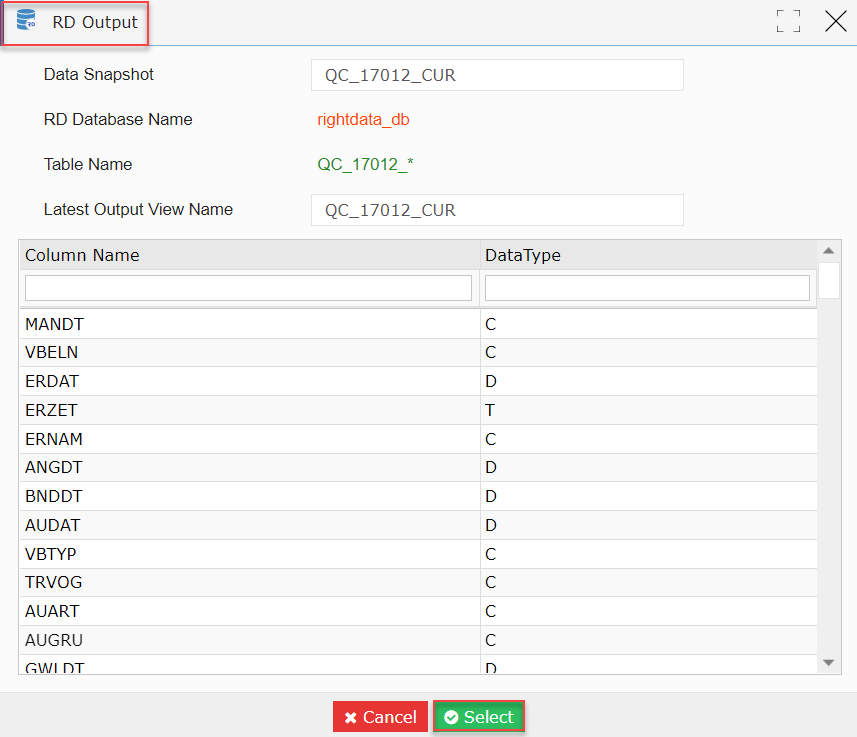

  • An RD Output pop-up window is displayed.
  • Click on Select button.
  • This action saves the RD Output widget.

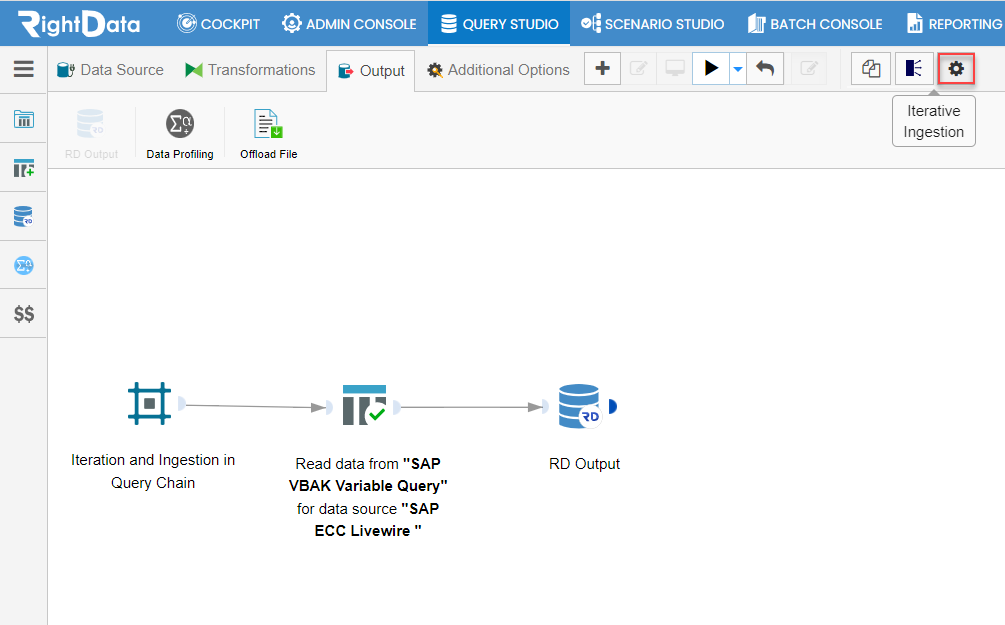

  • Click on the Iterative Ingestion icon.

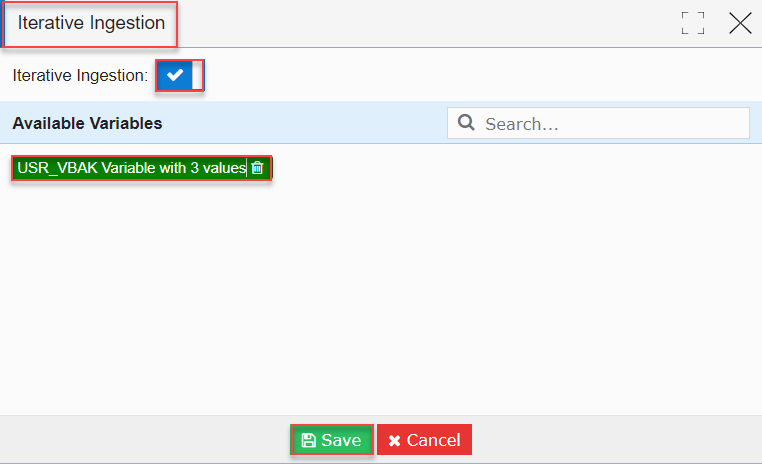

  • An Iterative Ingestion pop-up window is displayed.
  • Let’s switch on Iterative Ingestion toggle button and select USR_VBAK Variable with 3 values from the Available Variables.
  • Click on Save button to save the Iterative Ingestion settings.

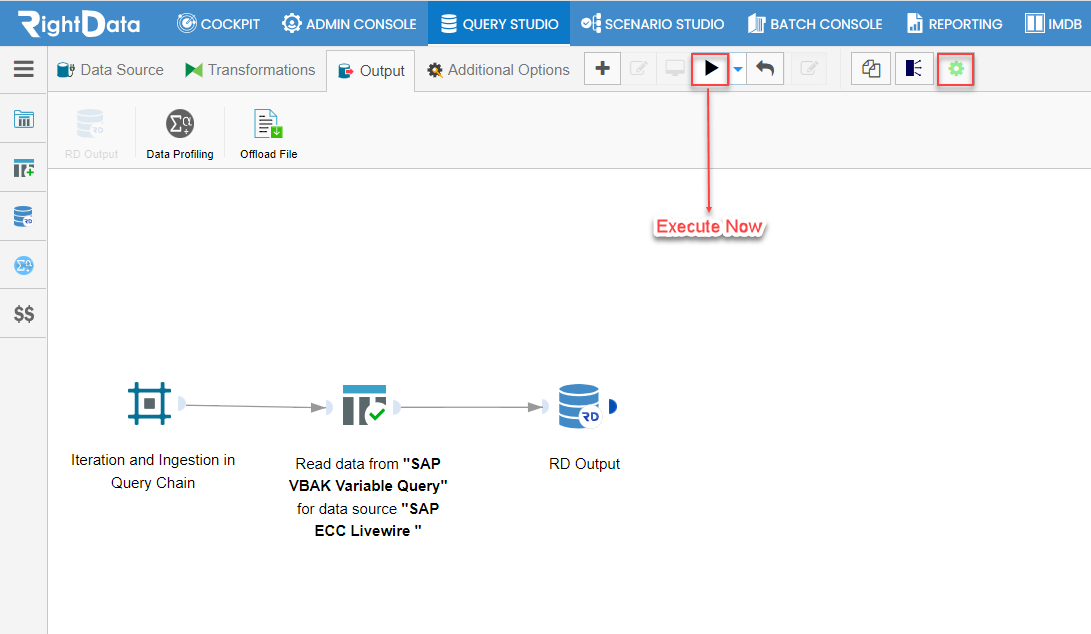

  • Click on Execute Now button.
  • This action executes the Query Chain.

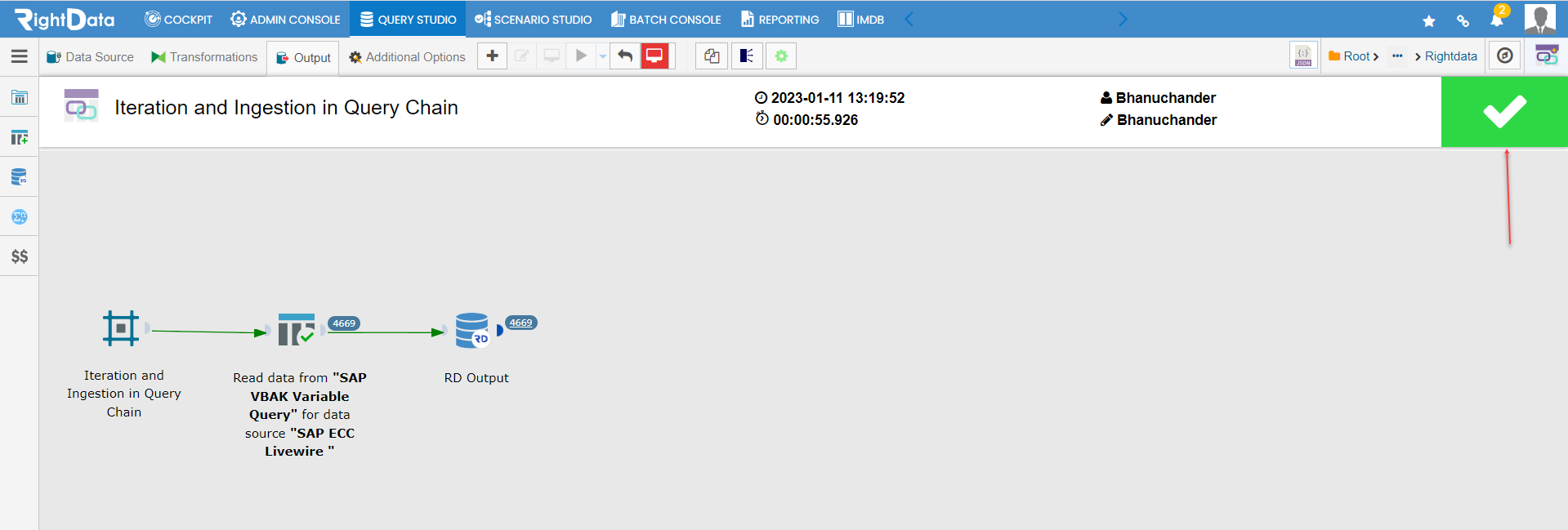

  • Here, we can notice, the Iterative Ingestion icon turned green which indicates the settings are applied successfully.
  • Here the Query Chain is passed.

Note: Here the iteration and ingestion process take place in the background.
