Iteration and ingestion in FDR (Functional Data Reconciliation)

In an FDR scenario, we can iterate over a set of values and ingest the data. The iteration process takes place looping in between a set of key values. Here in this example, we considered SAP VBAK (Sales Document: Header Data) table and VBELN (Sales and Distribution Document Number) column as one of the primary keys.



Steps involved:

  1. Create a Query using static values
  2. Create a variable using an output Query
  3. Add the created variable in a Query
  4. Run the FDR using an output Query



1. Create a Query using static values:

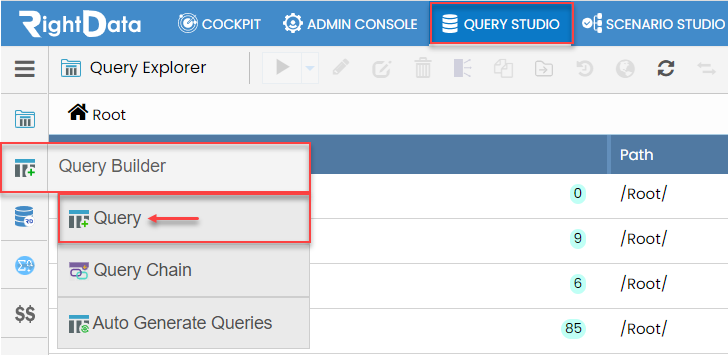

  • Click the QUERY STUDIO
  • Hover on Query Builder snippet and click on Query.

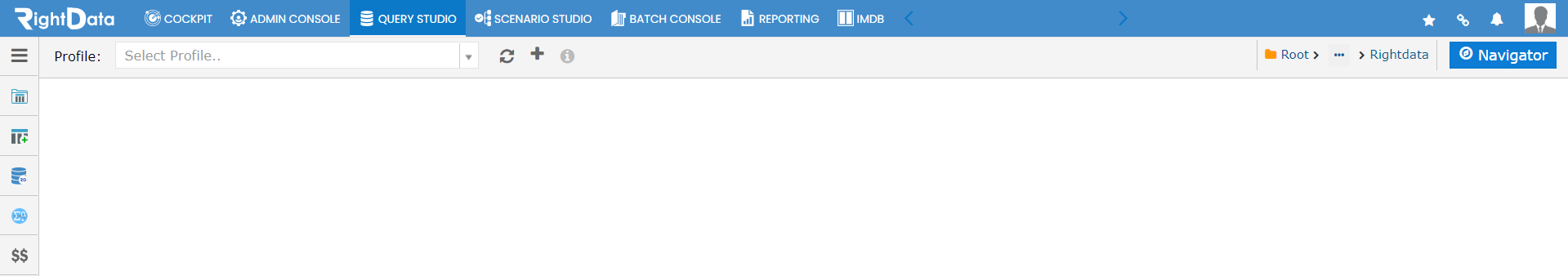

  • This action navigates to the Query page.

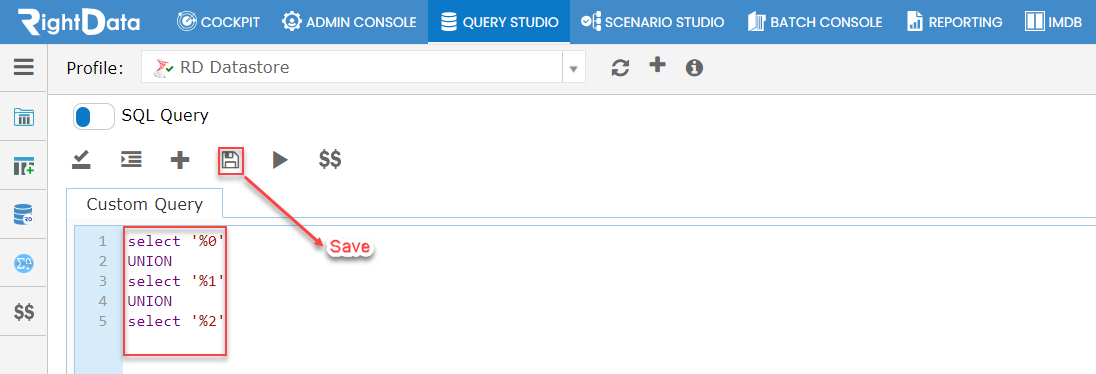

  • Let’s select RD Datastore from the Profile drop-down list.
  • Add the required values and click on the Save.

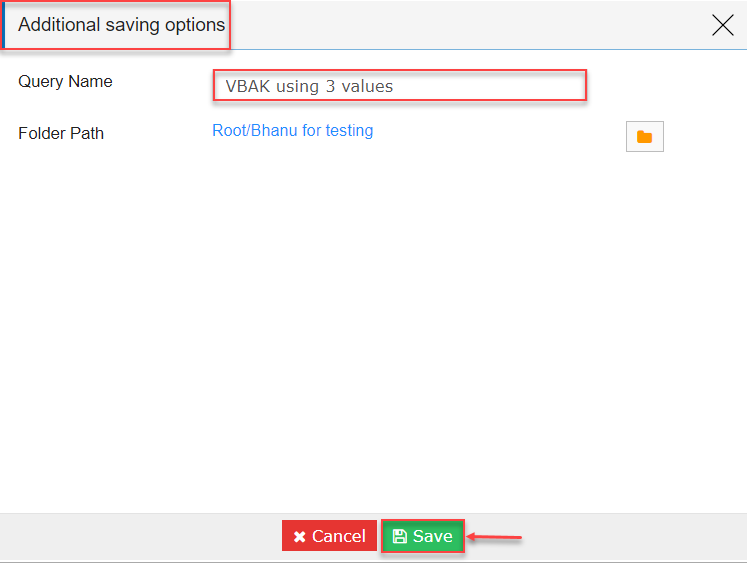

  • An Additional saving options pop-up window is displayed.
  • Under the Query Name text field, let’s add VBAK using 3 values.
  • Select the desired folder path and click on Save.

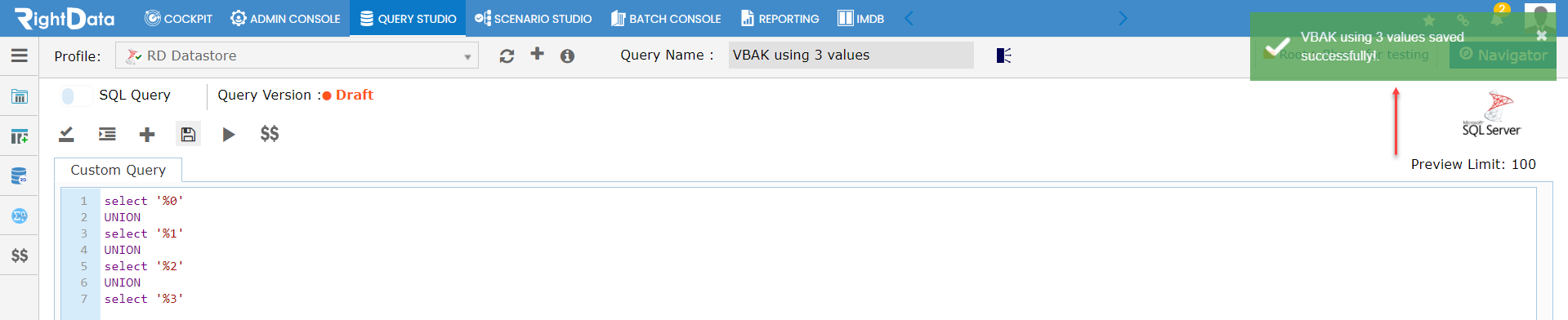

  • A toaster message VBAK using 3 variables saved successfully! is displayed.



2. Create a variable using an output Query:

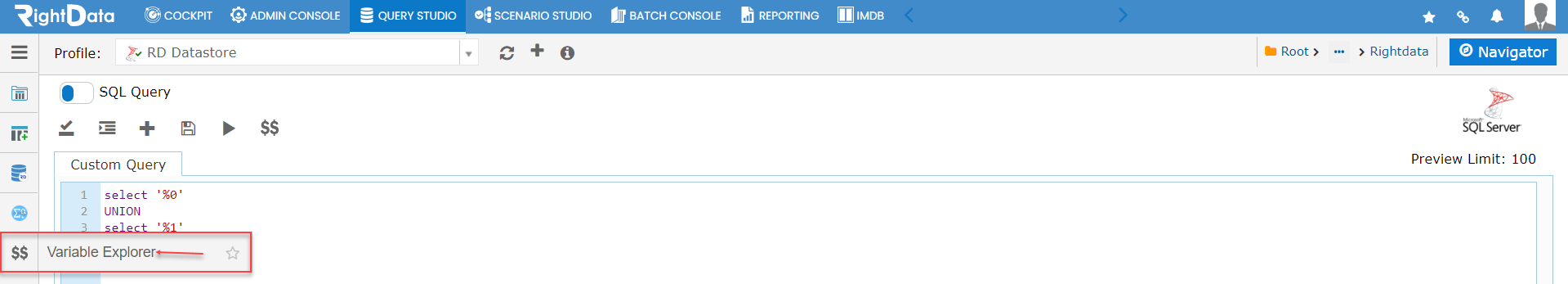

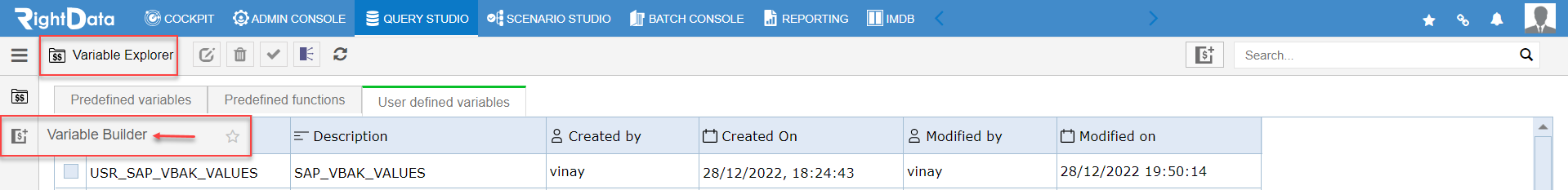

  • Hover and click on Variable Explorer.
  • This action navigates to the Variable Explorer
  • Click on Variable Builder.
  • This action navigates to Variable Builder

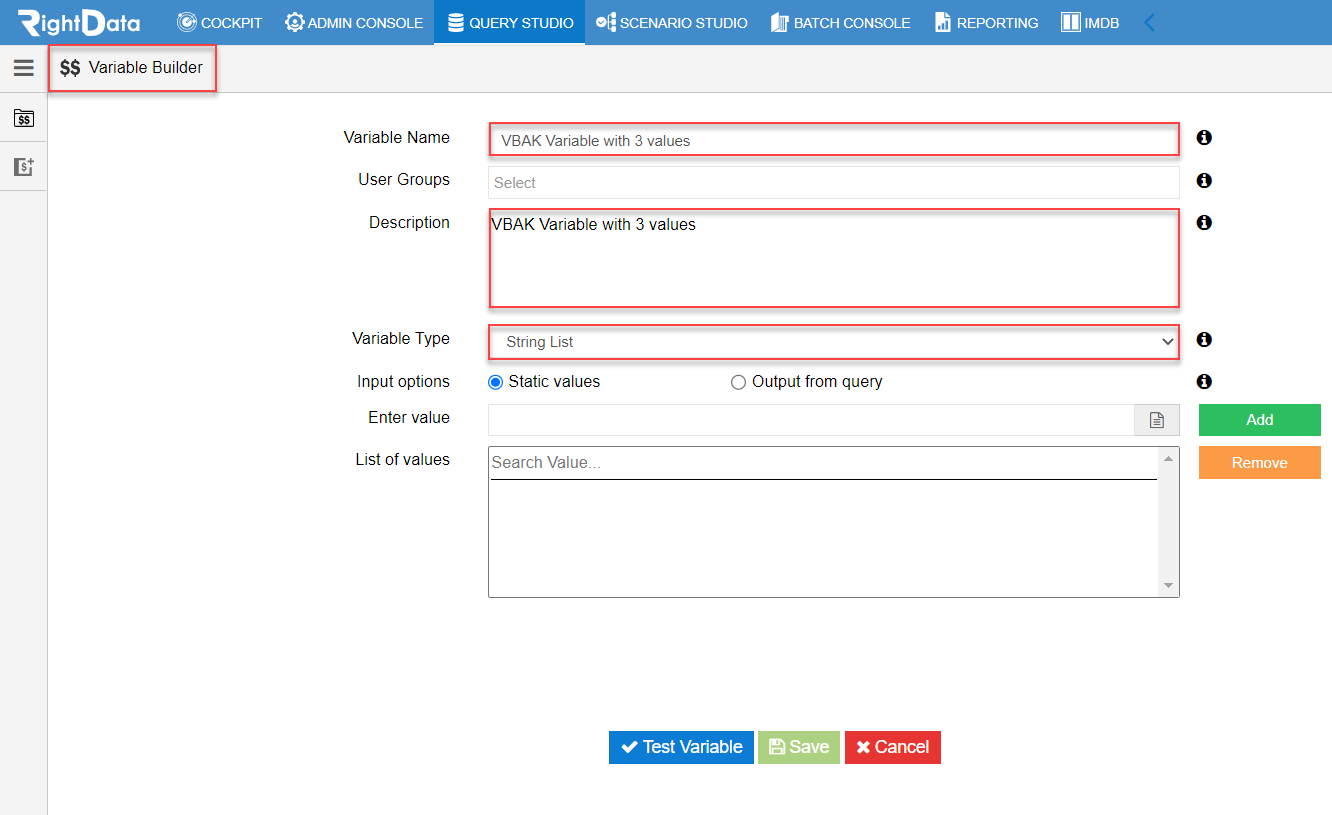

  • Add the Variable Name, and Description text fields and select the Variable Type drop-down list.

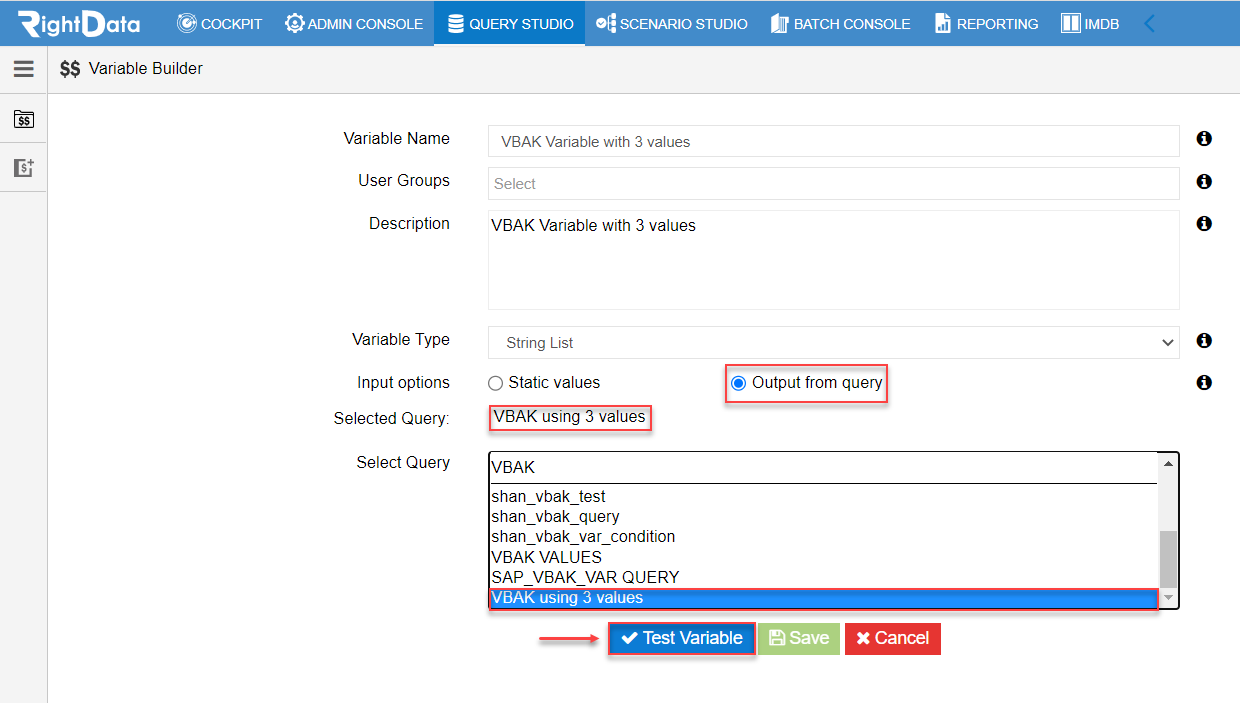

  • Select Output from query for Input options.
  • Select VBAK using 3 values for the Select Query.
  • Click Test Variable

Note: Here, the Selected Query is updated accordingly.

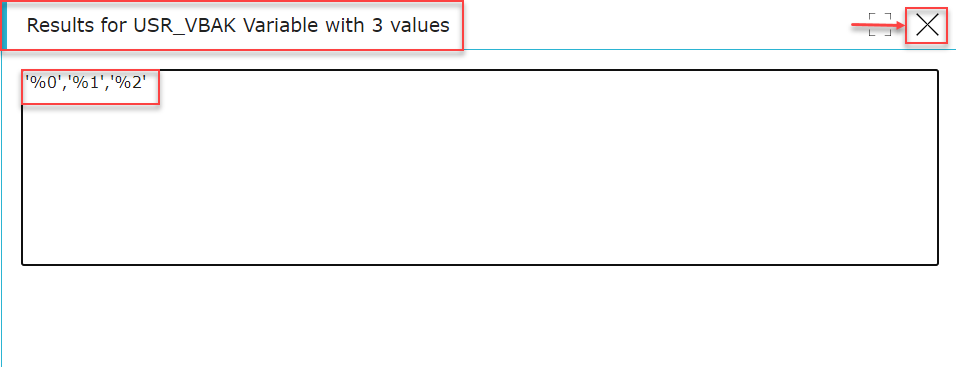

  • A Results for USR_VBAK Variable with 3 values pop-up window is displayed that shows the variables list.
  • Close this window.

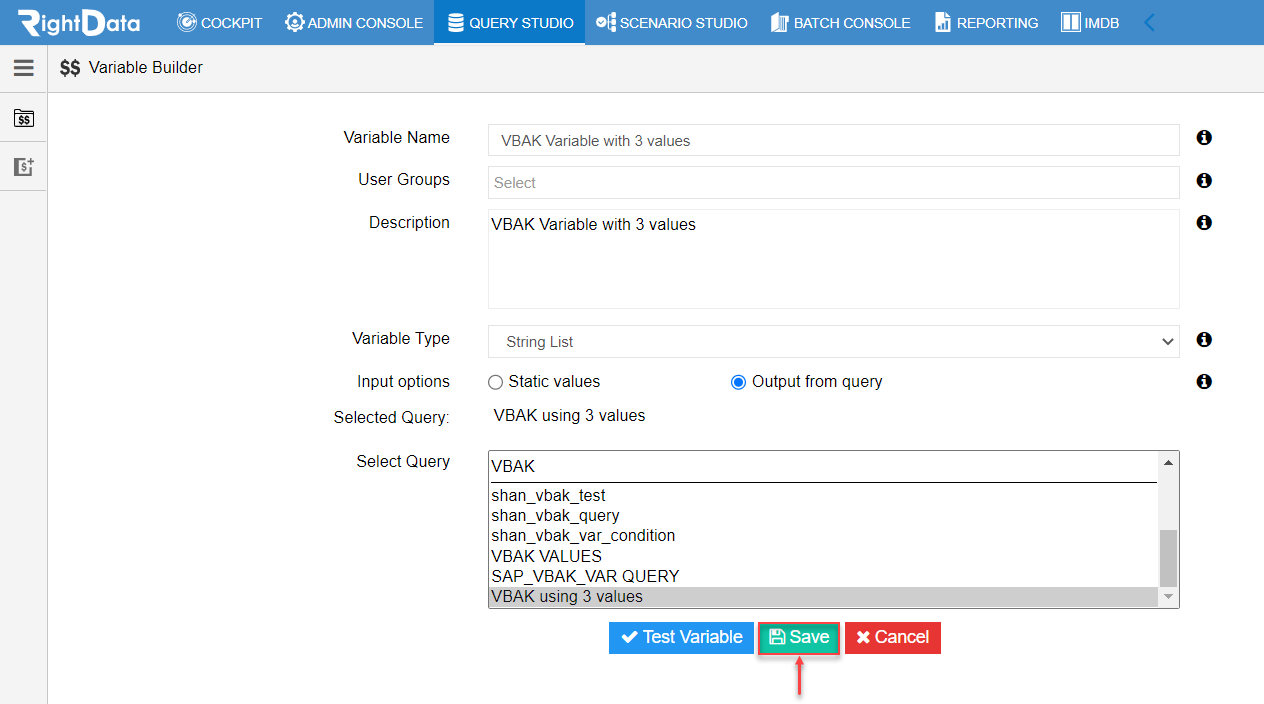

  • Click on Save.

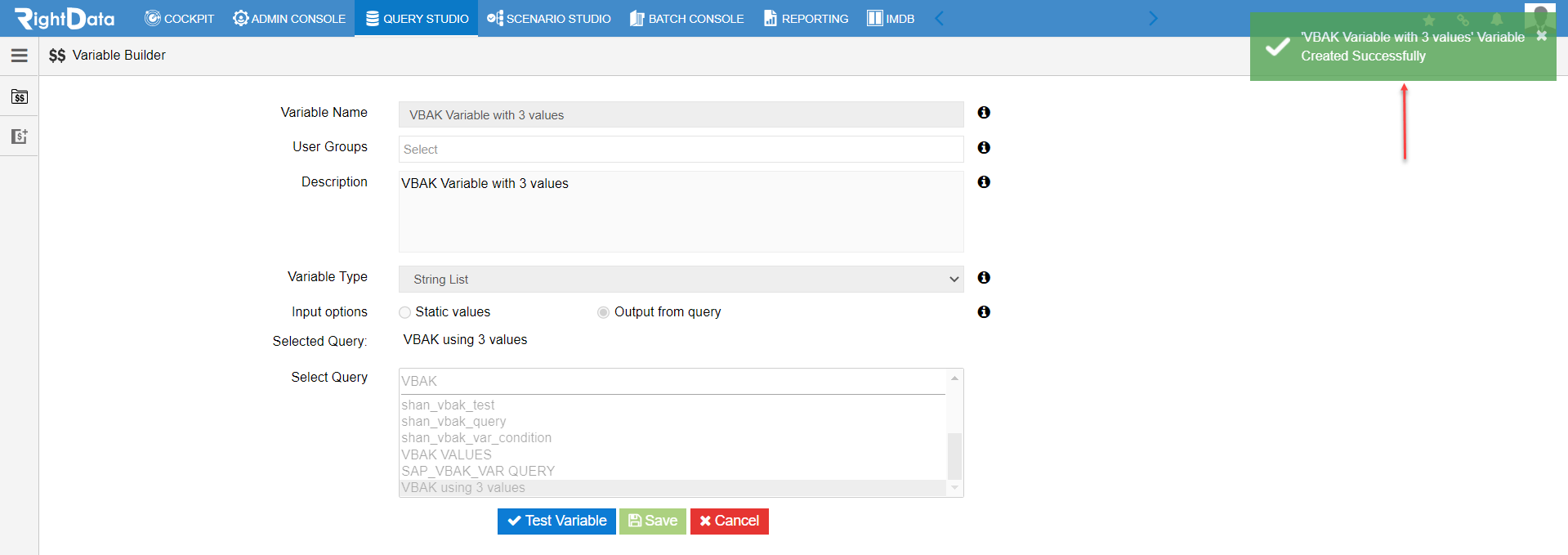

  • A toaster message ‘VBAK Variable with 3 values’ Variable Created Successfully is displayed.



3. Add the created variable in a Query:

  • Click the QUERY STUDIO
  • Hover on Query Builder snippet and click on Query.
  • This action navigates the user to the Query page.

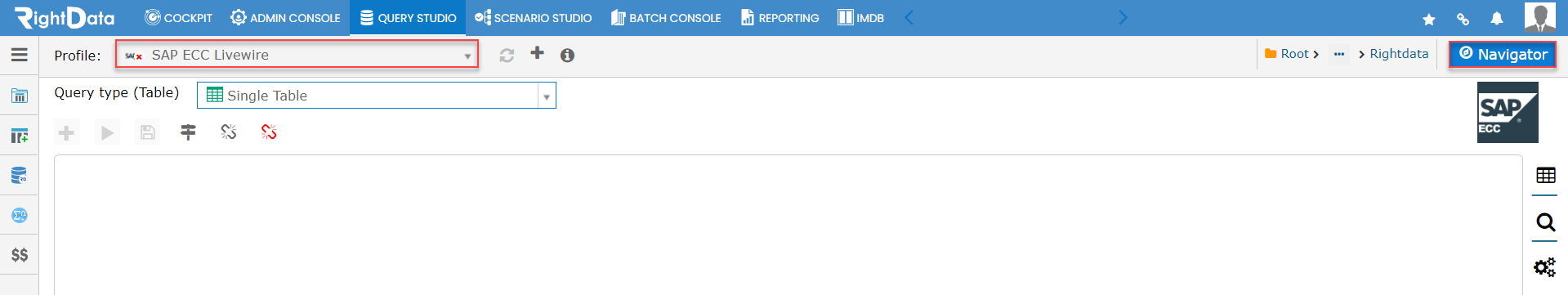

  • Select SAP ECC Livewire from the Profile drop-down list.
  • Click the Navigator

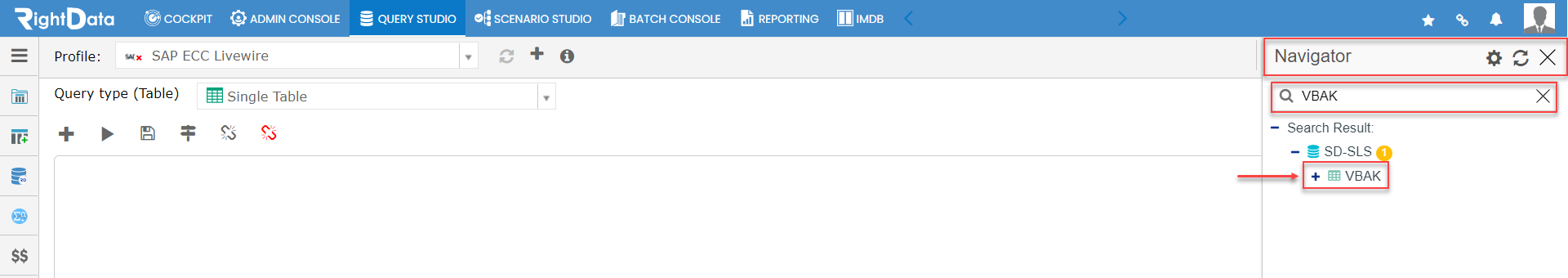

  • Search for VBAK table and click on it.
  • This action loads the table.

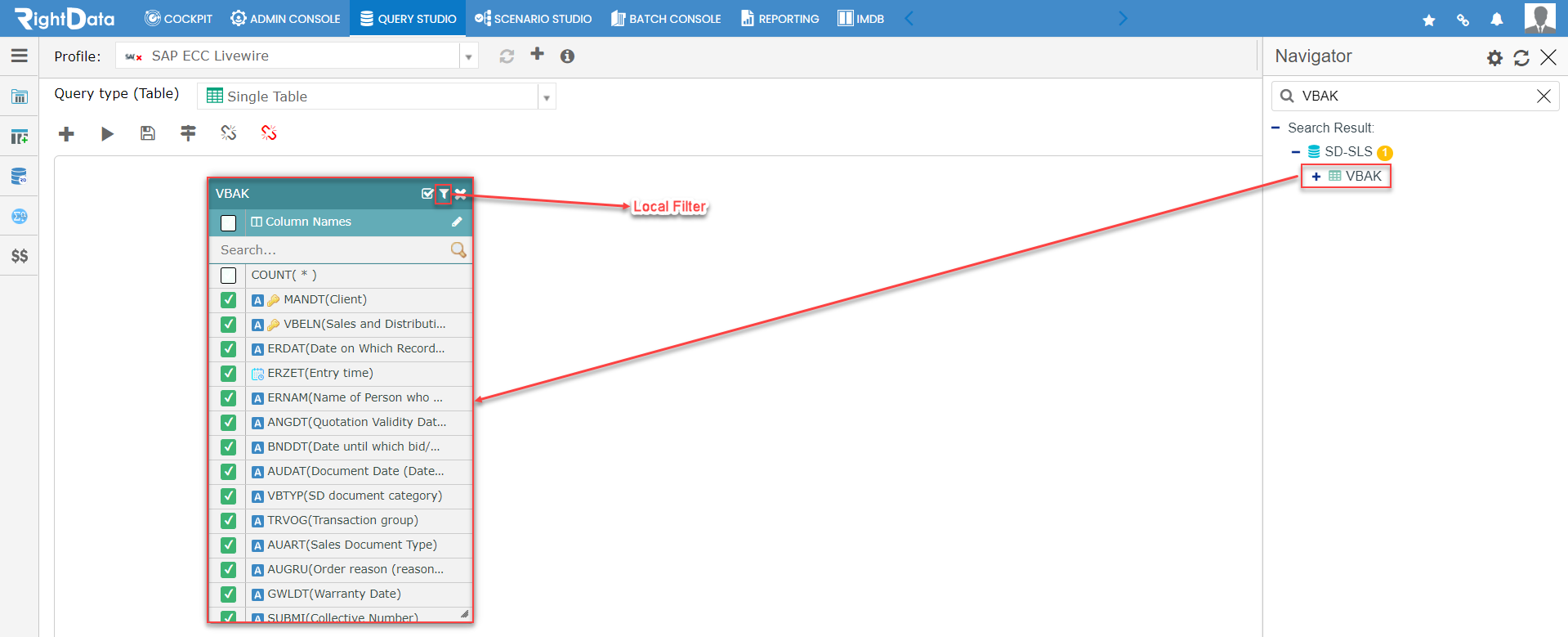

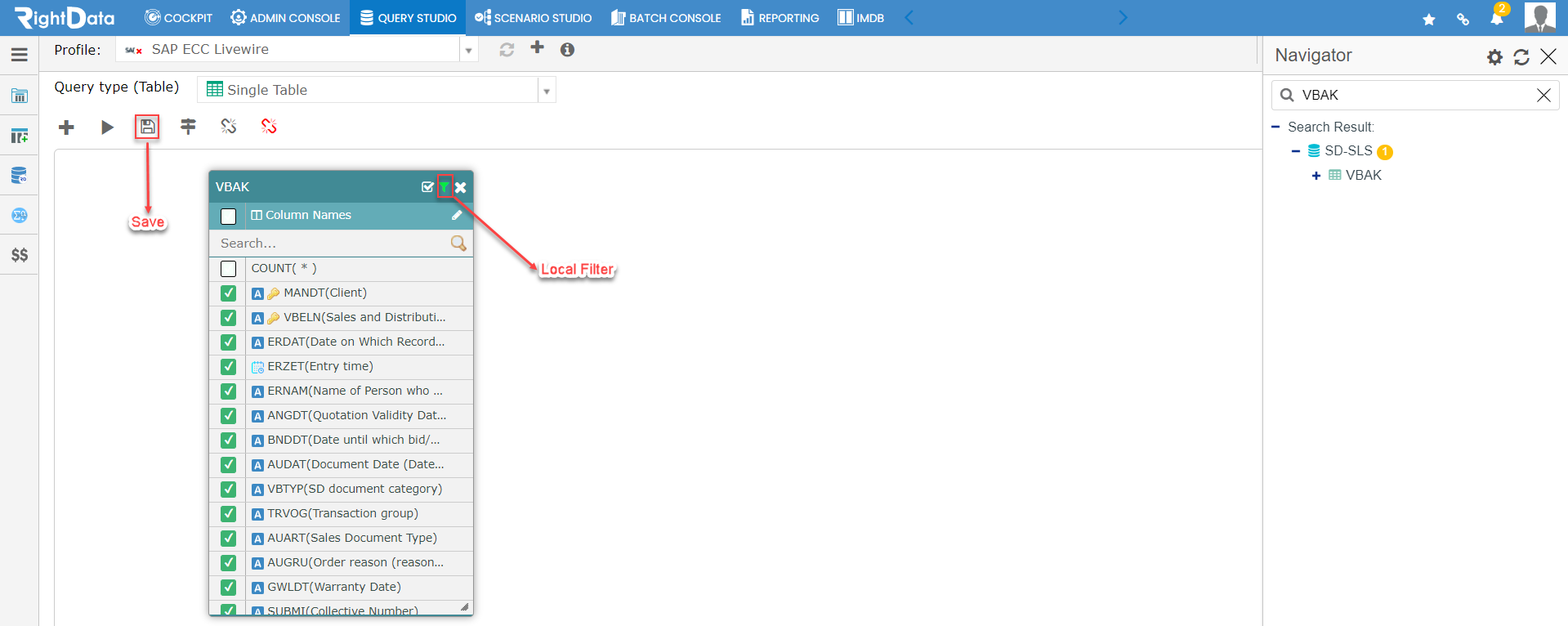

  • Click the Local Filter.
  • A Local Filter Expression for VBAK pop-up window is displayed.

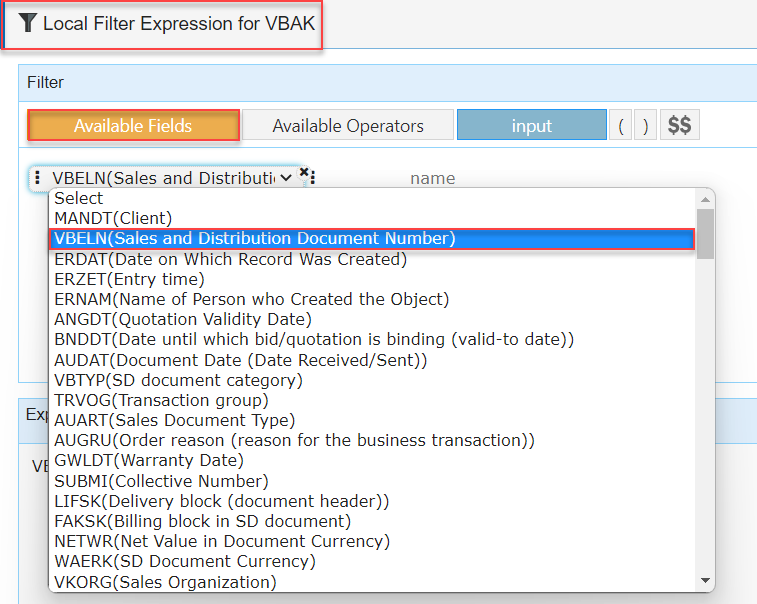

  • Drag the Available Fields option and select VBELN(Sales and Distribution Document Number) column from the drop-down list.

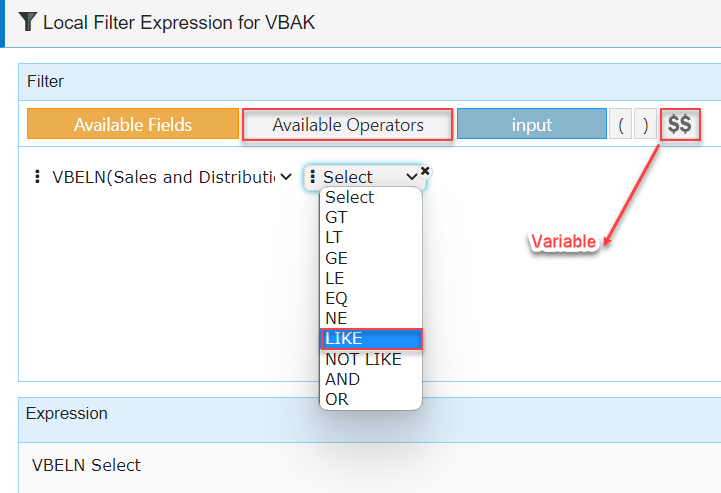

  • Drag the Available Operators and select Like from the drop-down list.
  • Click the Variable icon.

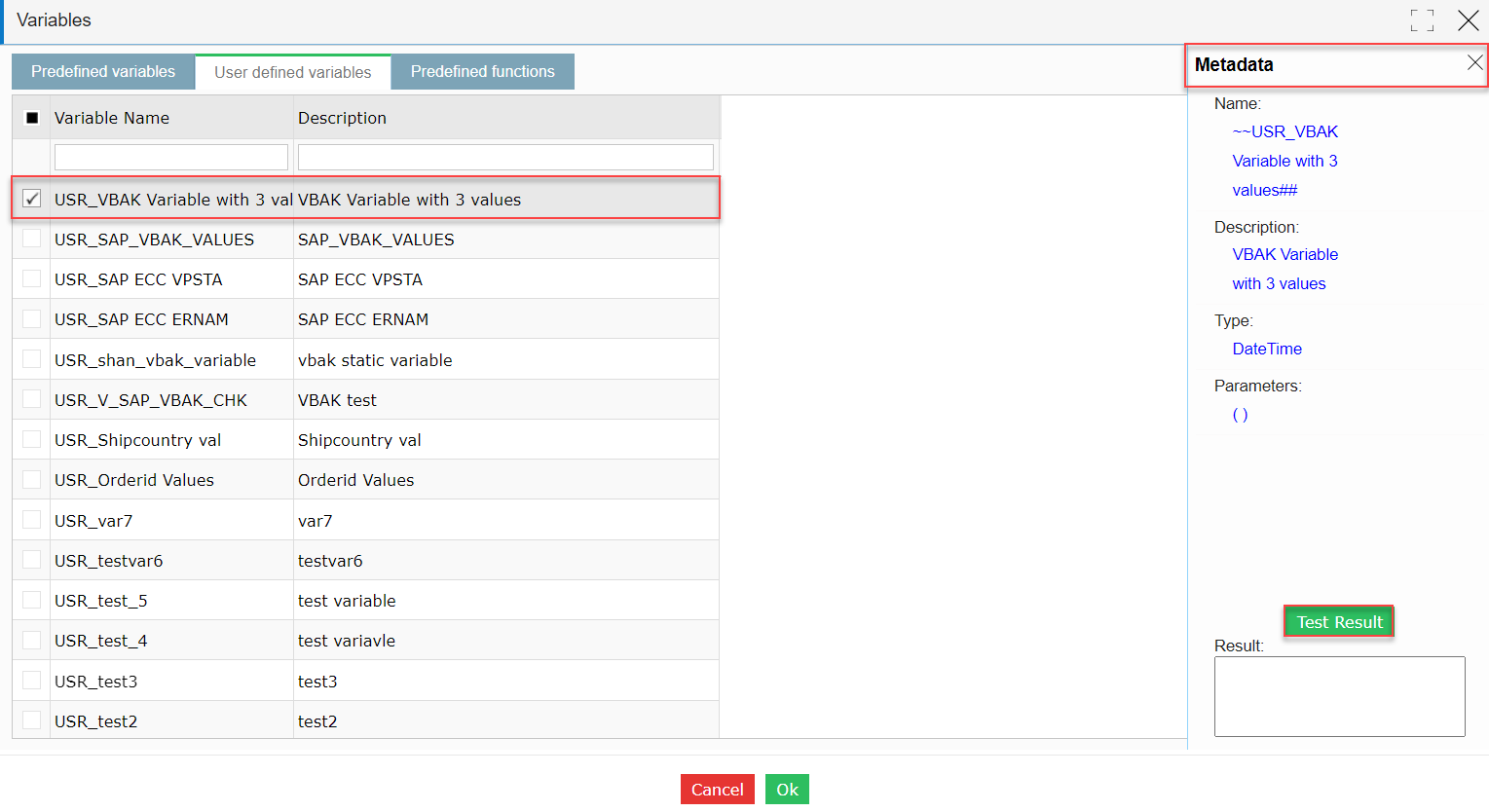

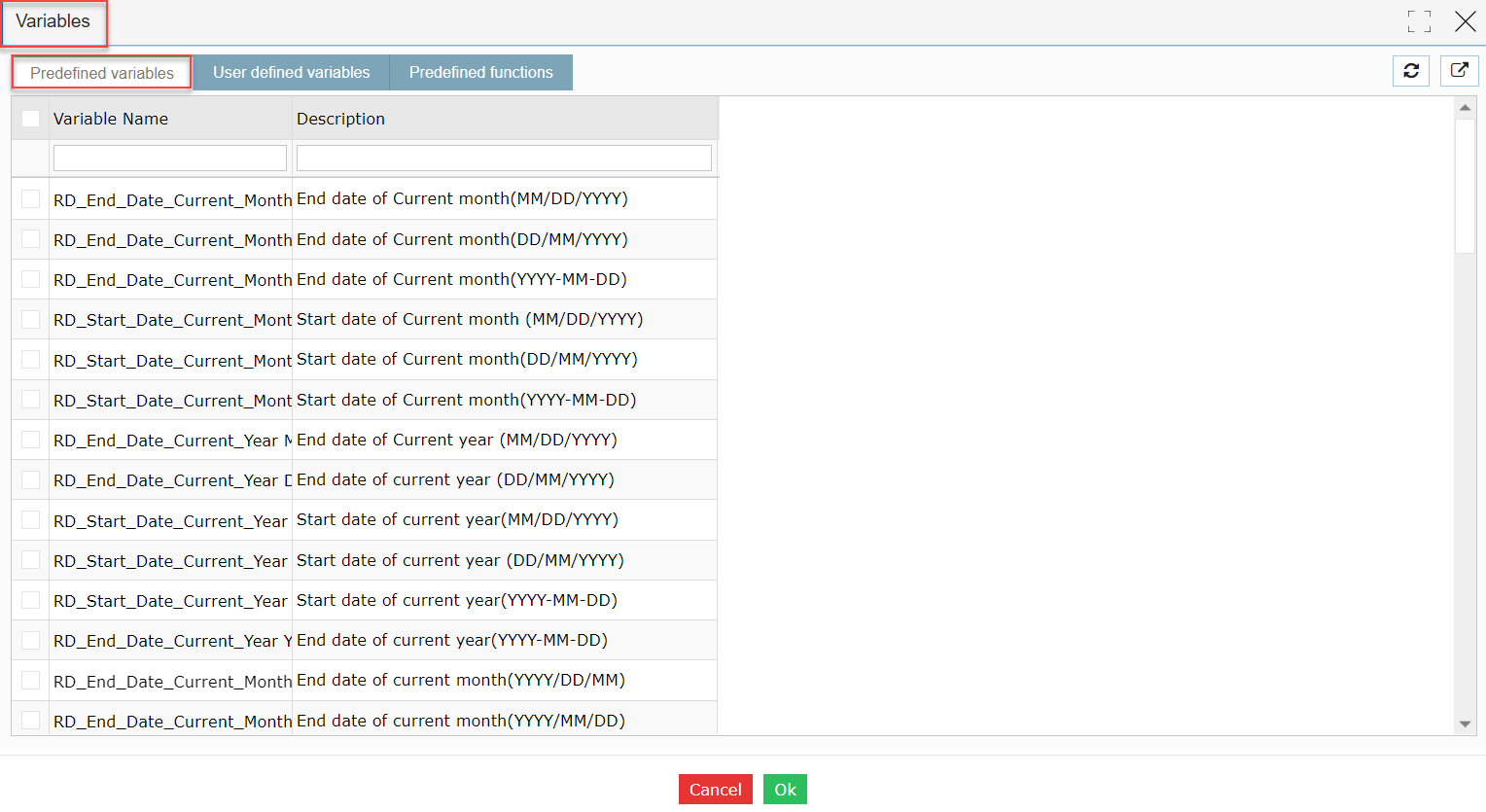

  • A Variables pop-up window is displayed.

Note: By default, Predefined variables tab is selected.

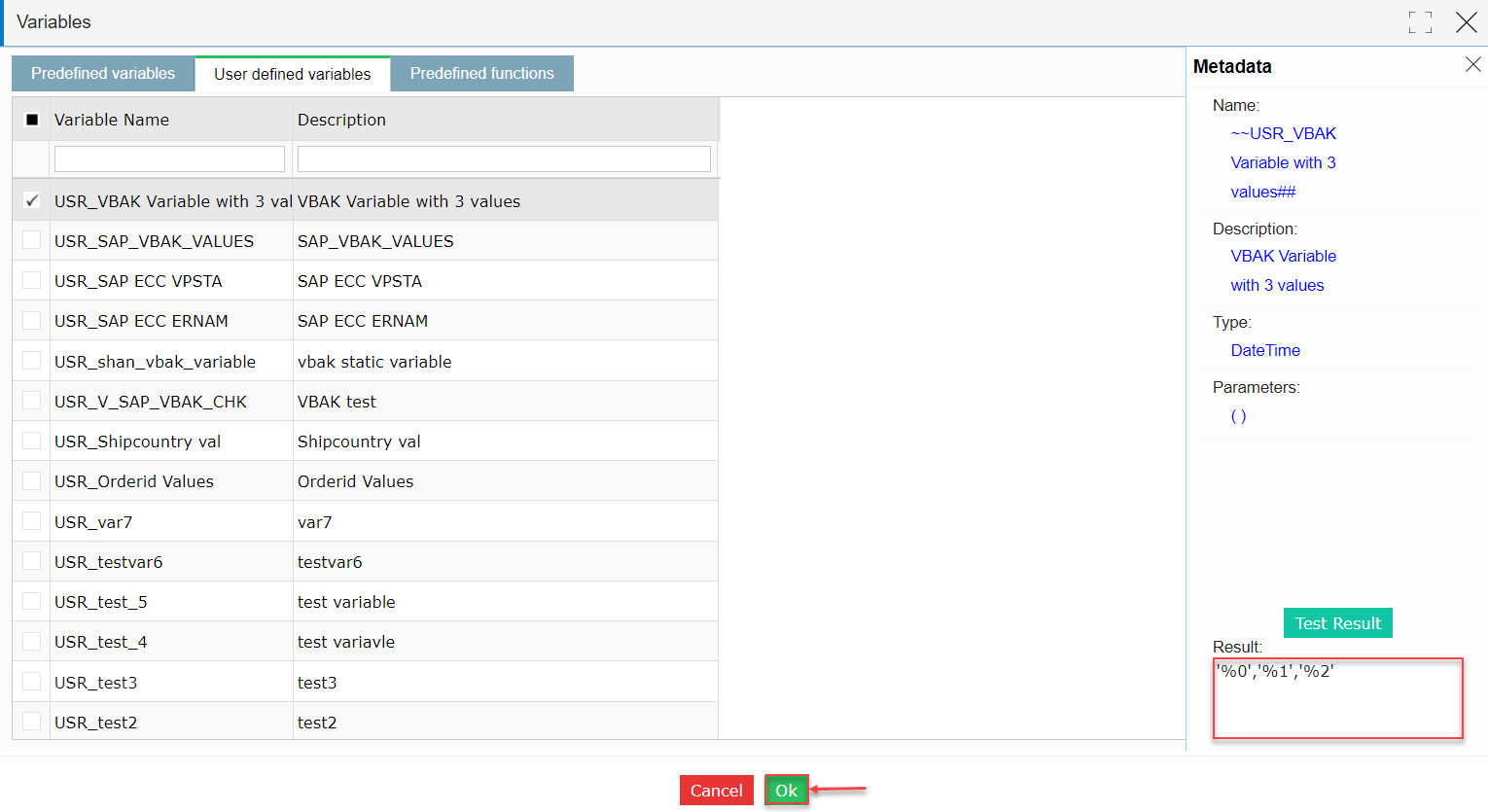

  • Select the User defined variables tab and select the variable USR_VBAK Variable with 3 values which loads the metadata slide screen.
  • Click on Test Result.
  • The list of values is loaded in the Result text field.
  • Click Ok to load the variable.

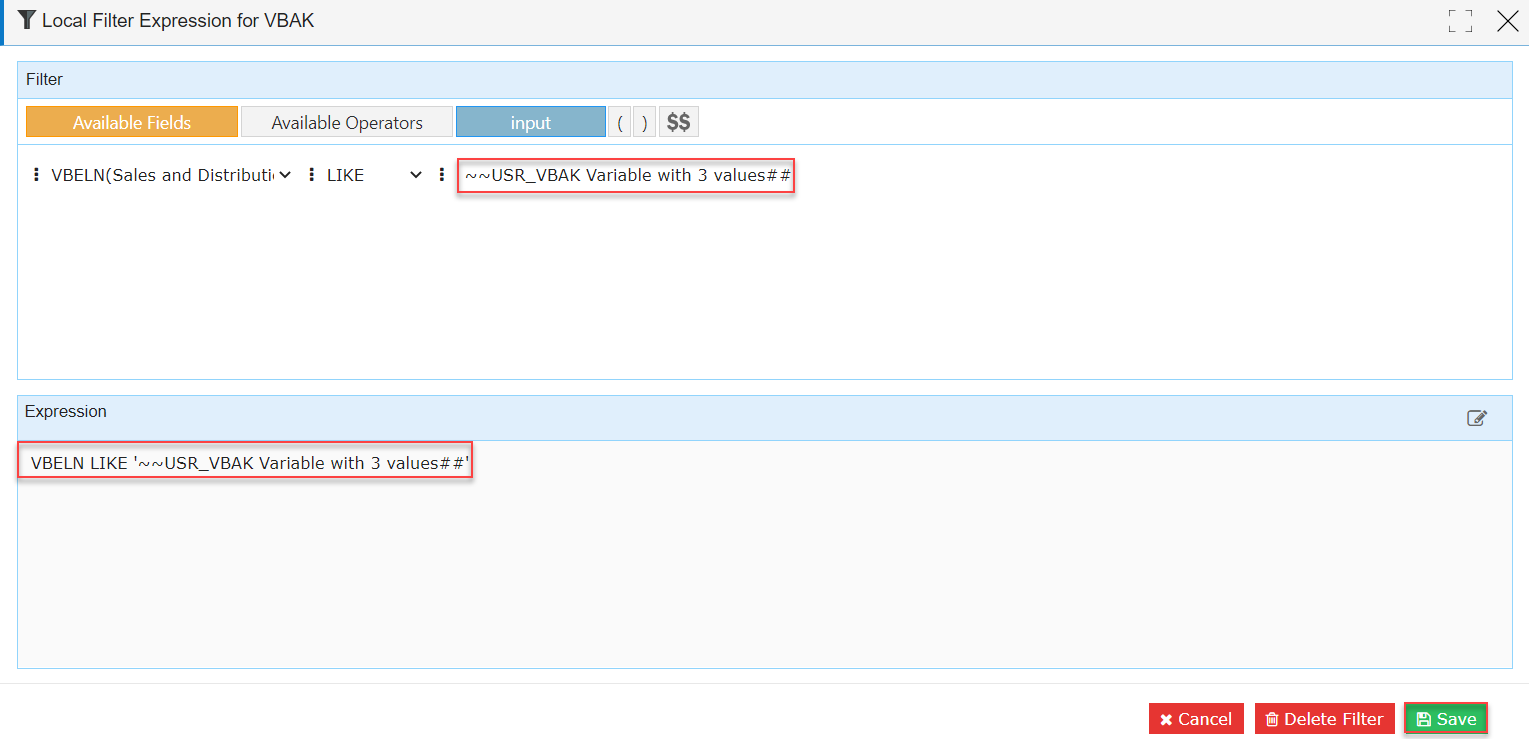

  • The expression VBELN LIKE ‘~ ~USR_VBAK Variable with 3 values # #’ is updated accordingly.
  • Click on Save to save the filters.
  • The Local Filter icon is turned green which indicates the filter condition is added successfully.
  • Click on Save.

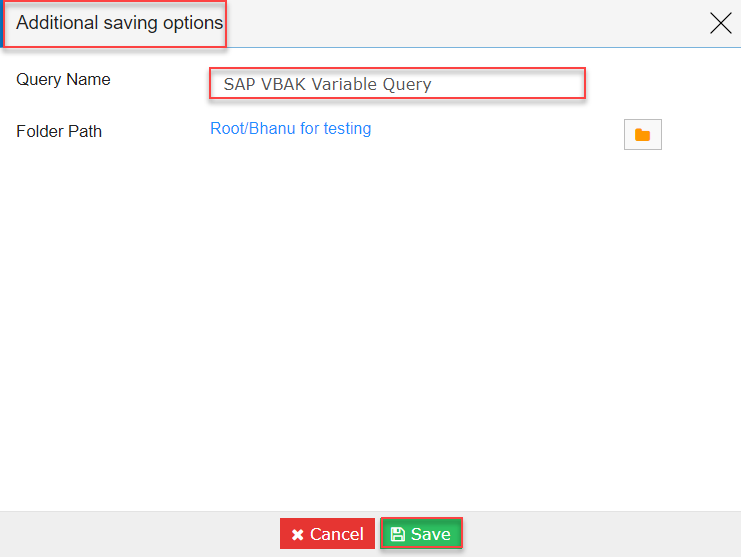

  • An Additional saving options pop-up window is displayed.
  • Add SAP VBAK Variable Query under the Query text field.
  • Click on Save.

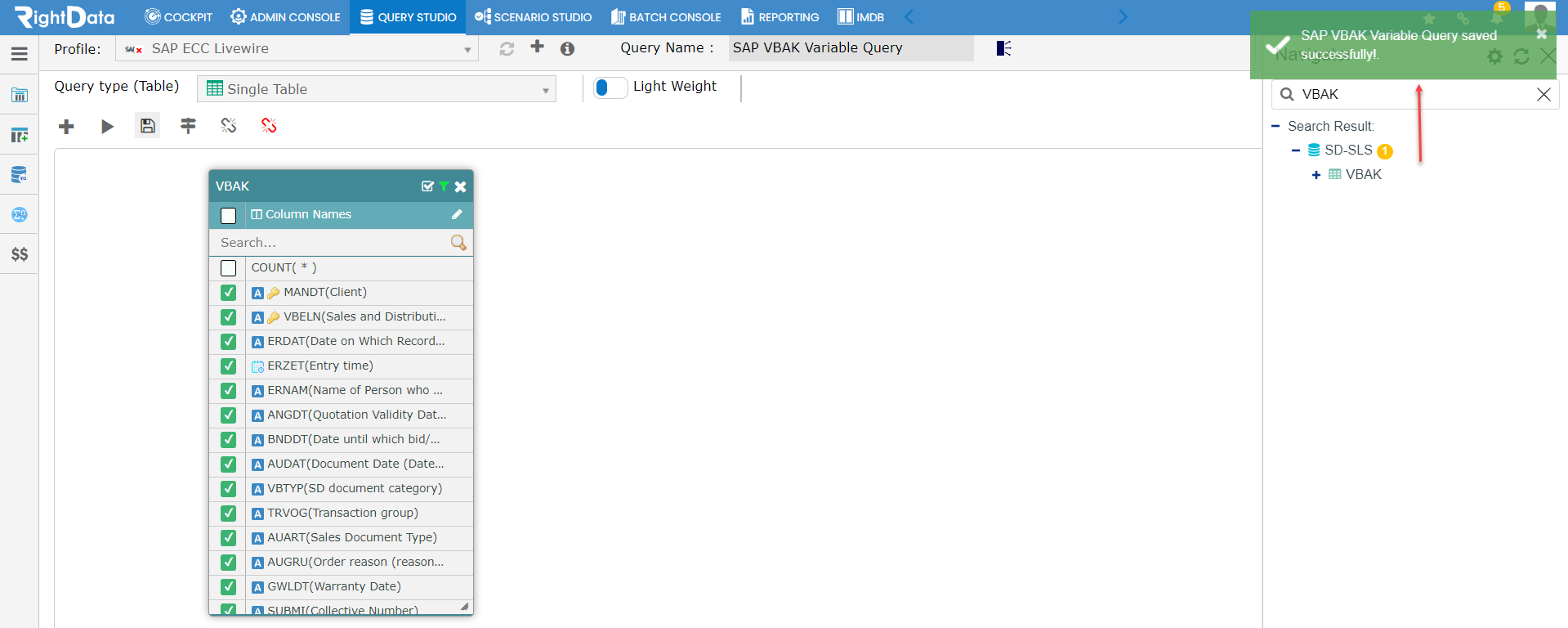

  • A toaster message SAP VBAK Variable Query saved successfully! is displayed.



4. Run the FDR using an output Query:

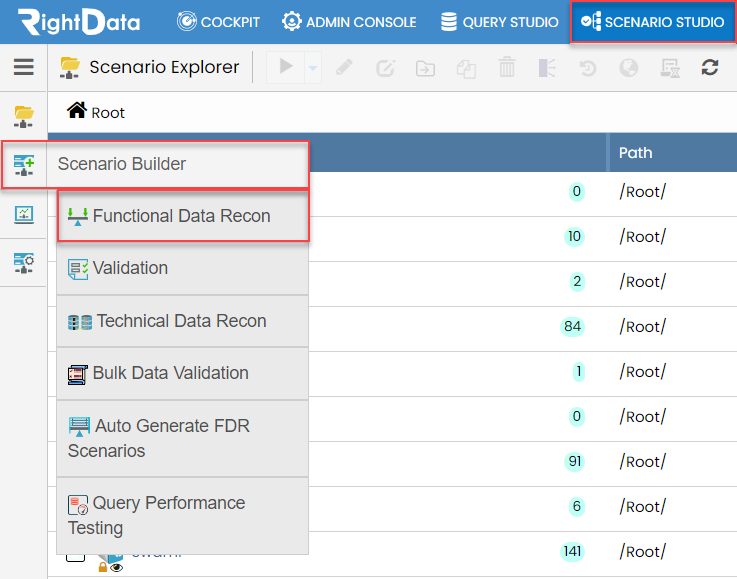

  • Click the SCENARIO STUDIO
  • Hover on the Scenario Builder snippet from the left pane options.
  • Click theFunctional Data Recon.

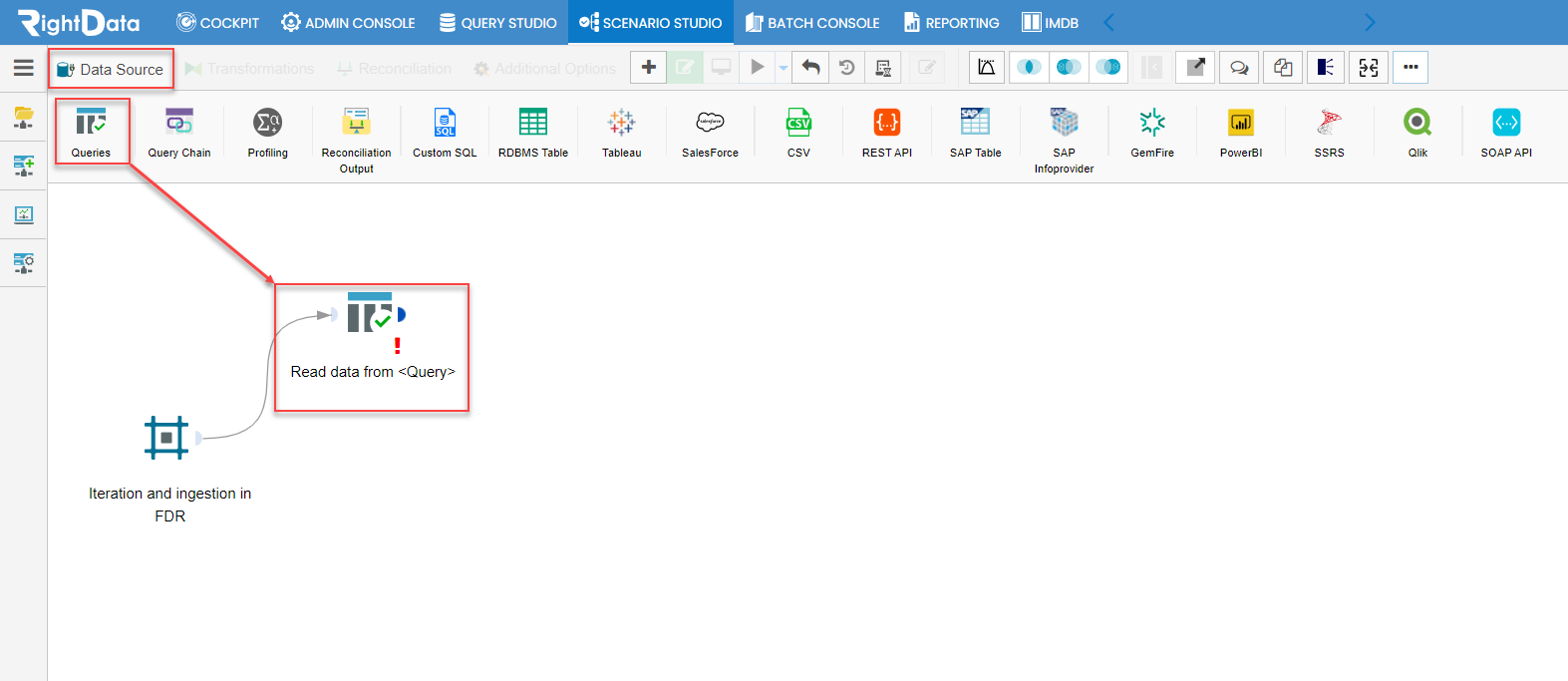

  • From the Data Source tab, let’s drag and drop Queries.
  • Double tap on the Read data from <Query>

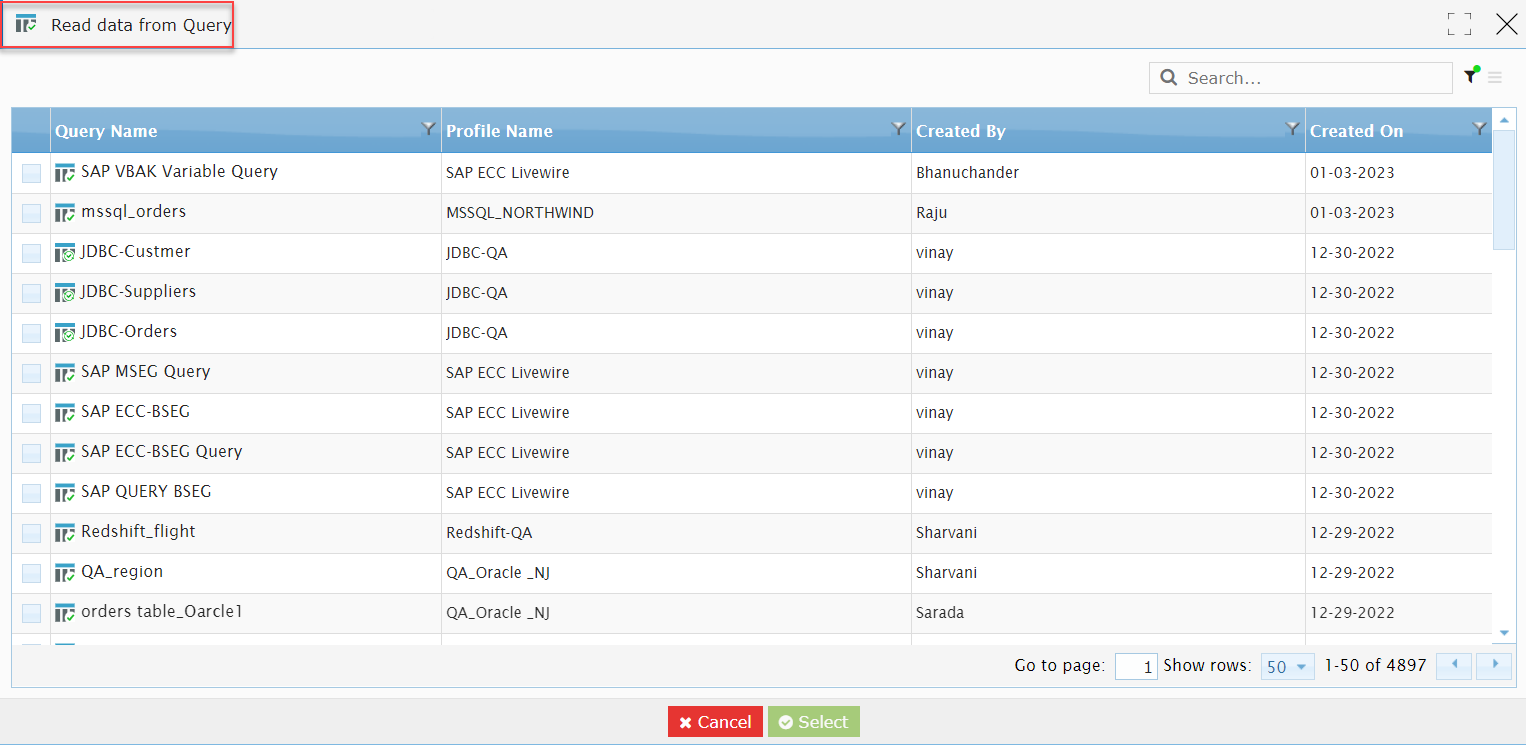

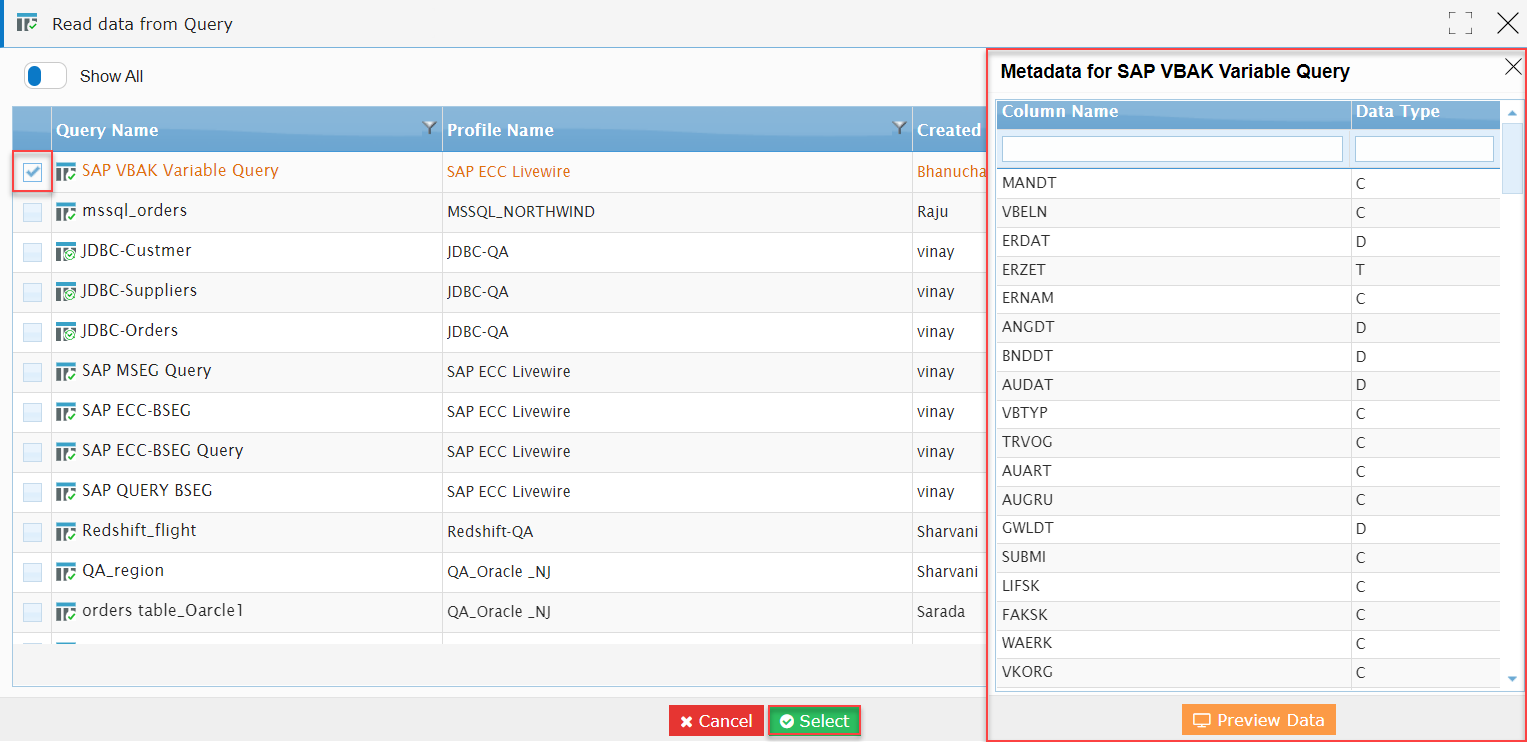

  • A Read data from Query pop-up window is displayed.
  • Let’s checkbox SAP VBAK Variable Query to display the Metadata for SAP VBAK Variable Query.
  • Click the Select button to save the Query widget.

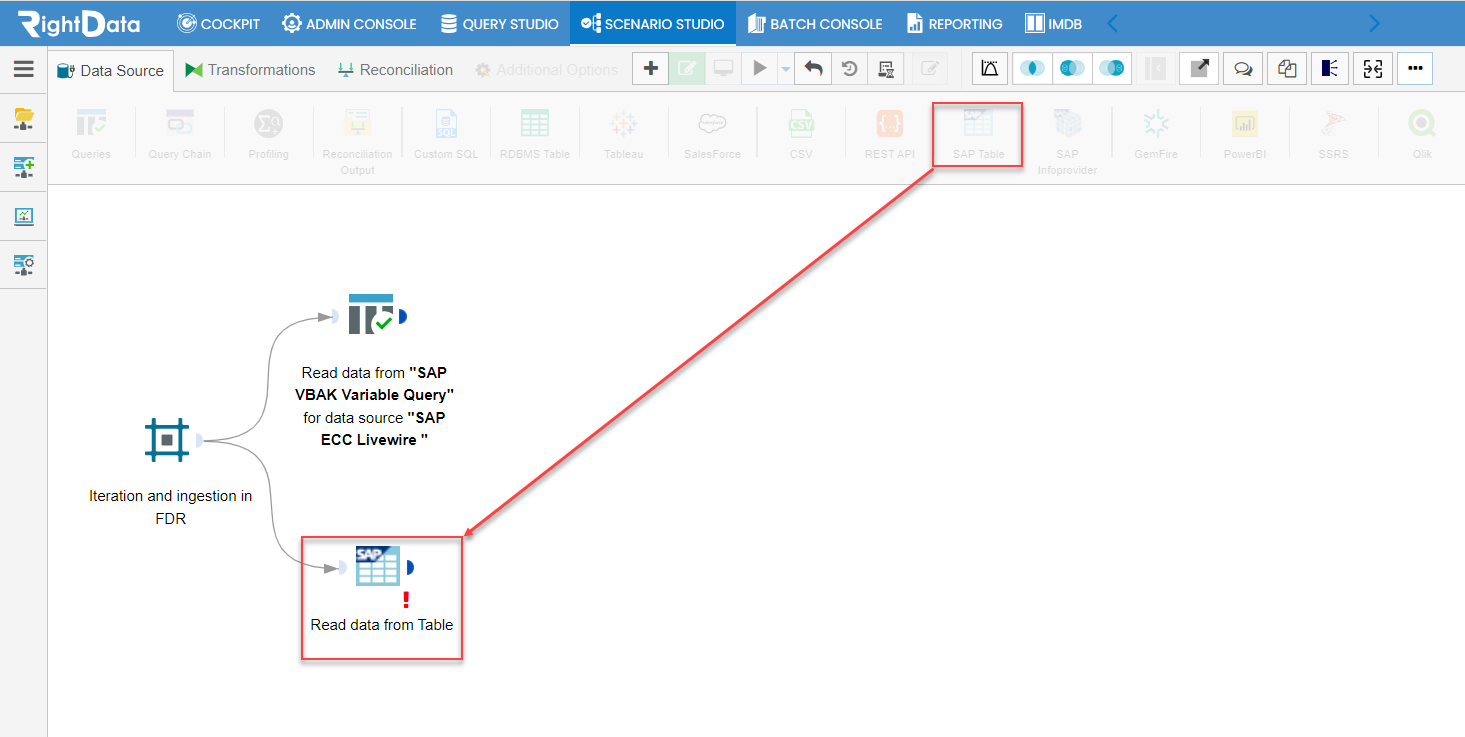

  • Drag and drop SAP Table icon onto the FDR page.
  • Double tap on Read data from Table.

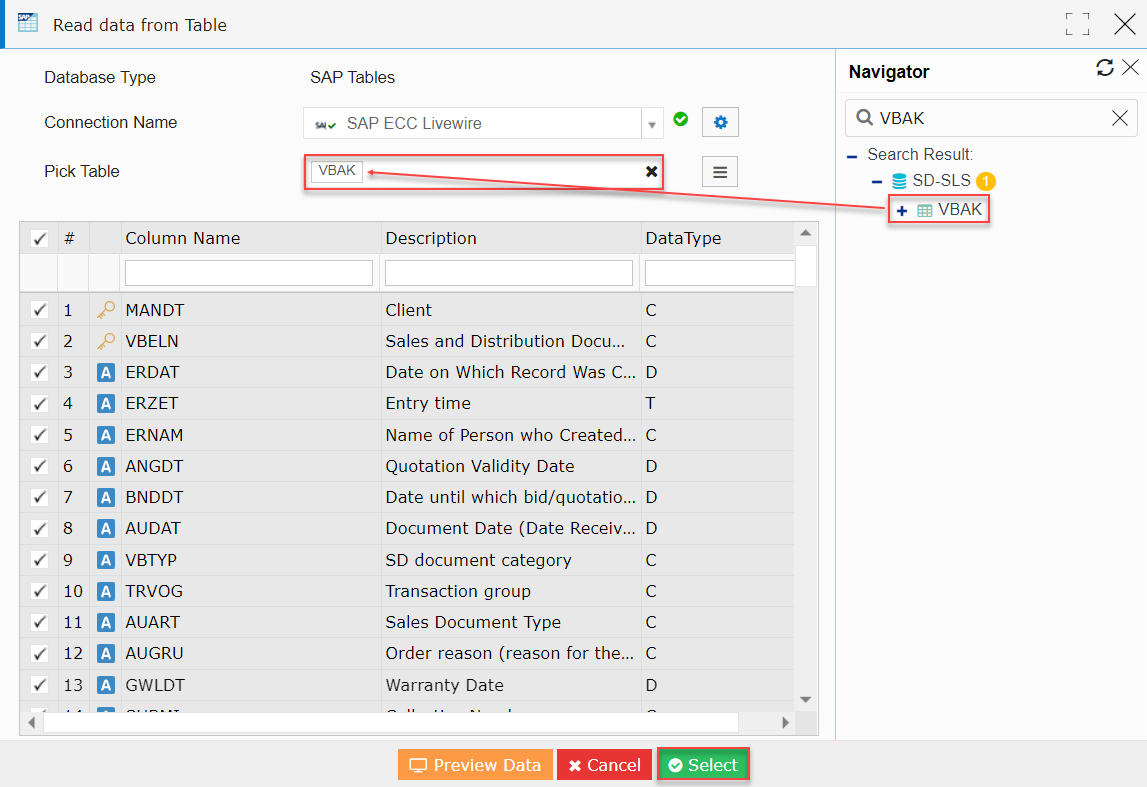

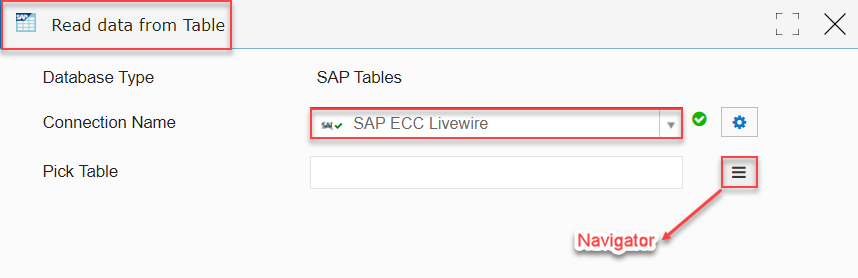

  • A Read data from Table pop-up window is displayed.

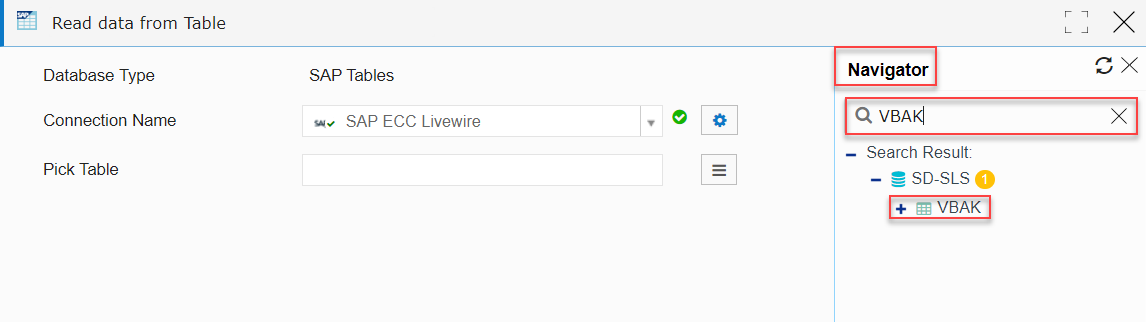

  • Select Connection Name as SAP ECC Livewire from the drop-down list.
  • Click the Navigator.
  • A Navigator slide screen is displayed.
  • Search for VBAK and click on it.
  • The VBAK table is loaded.
  • Click the Select button to save the SAP Table widget.

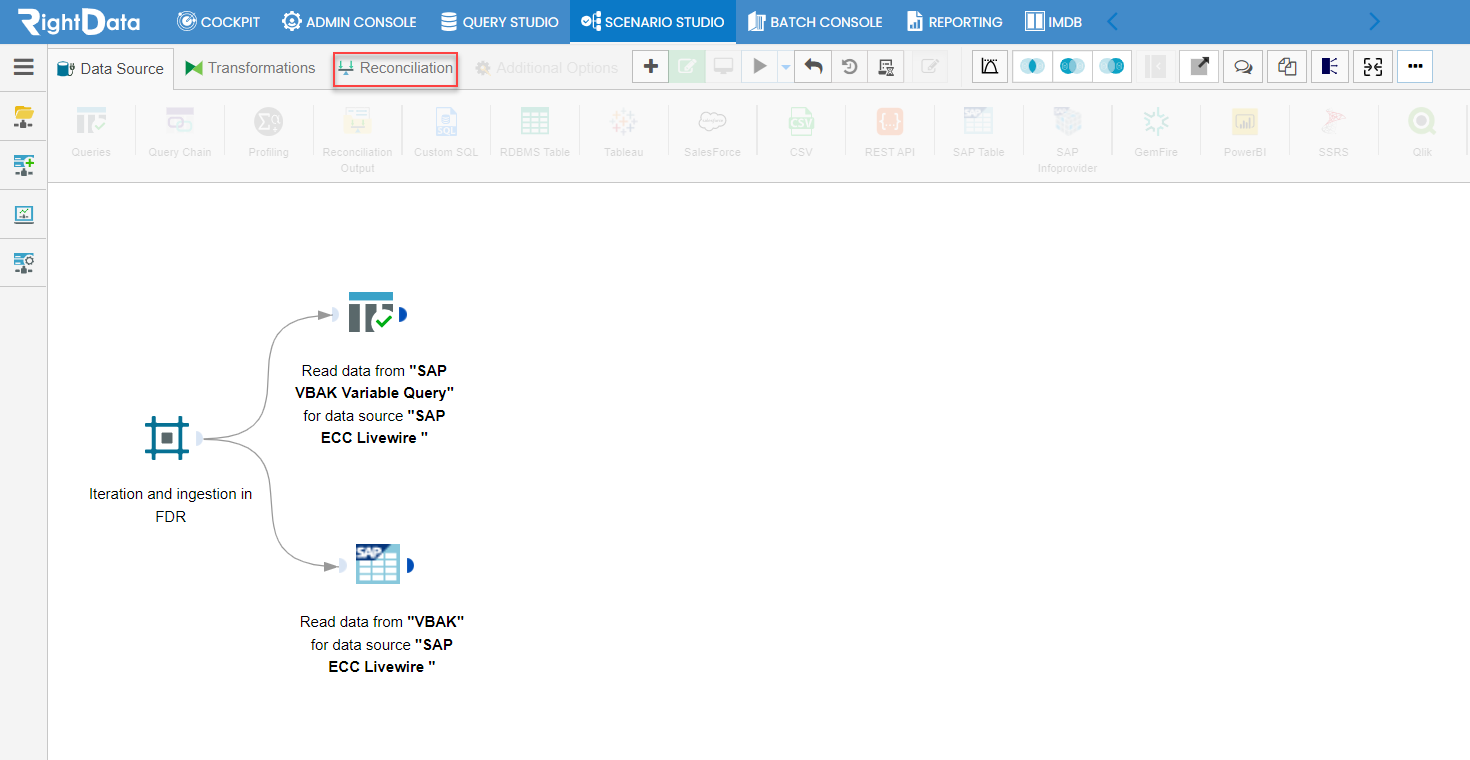

  • Click the Reconciliation tab.

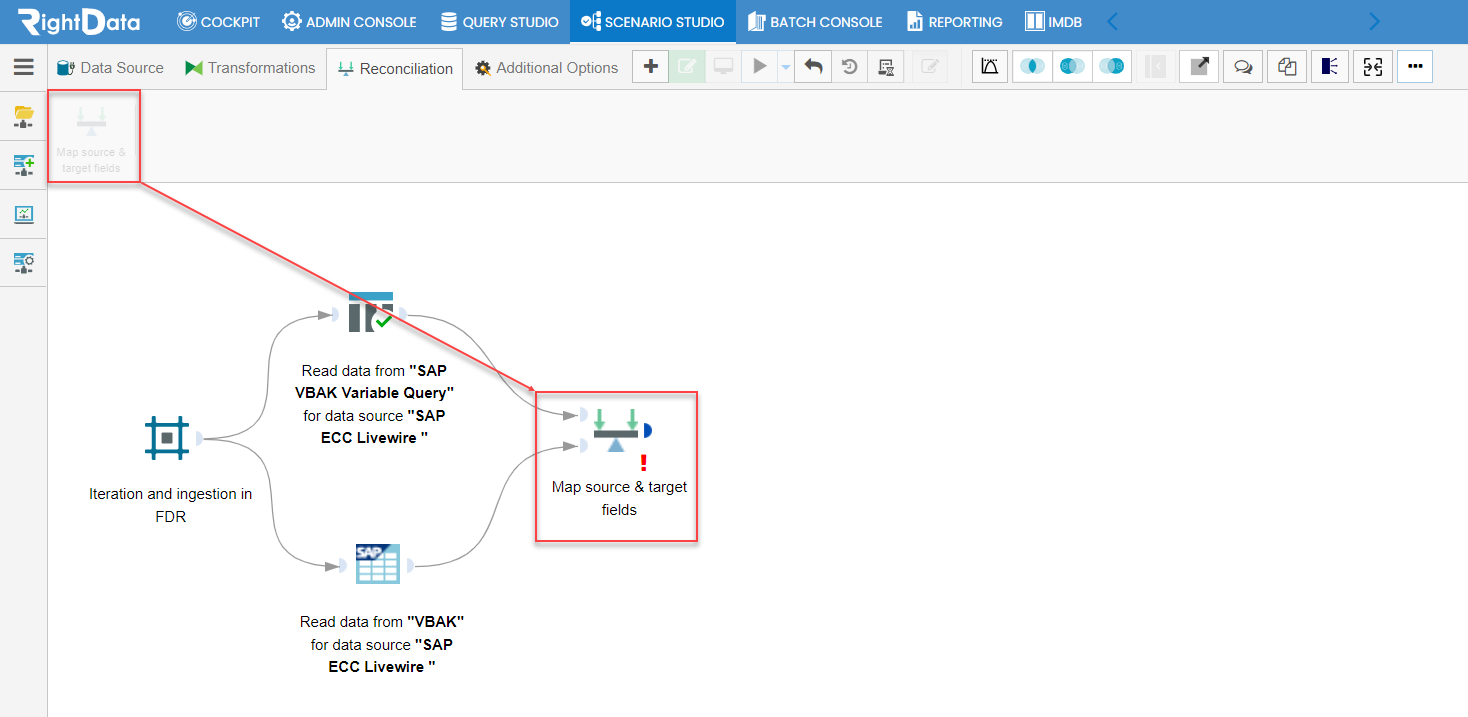

  • Drag and drop the Map source & target fields icon onto the FDR session page.
  • Double tap the Map source & target fields widgets.

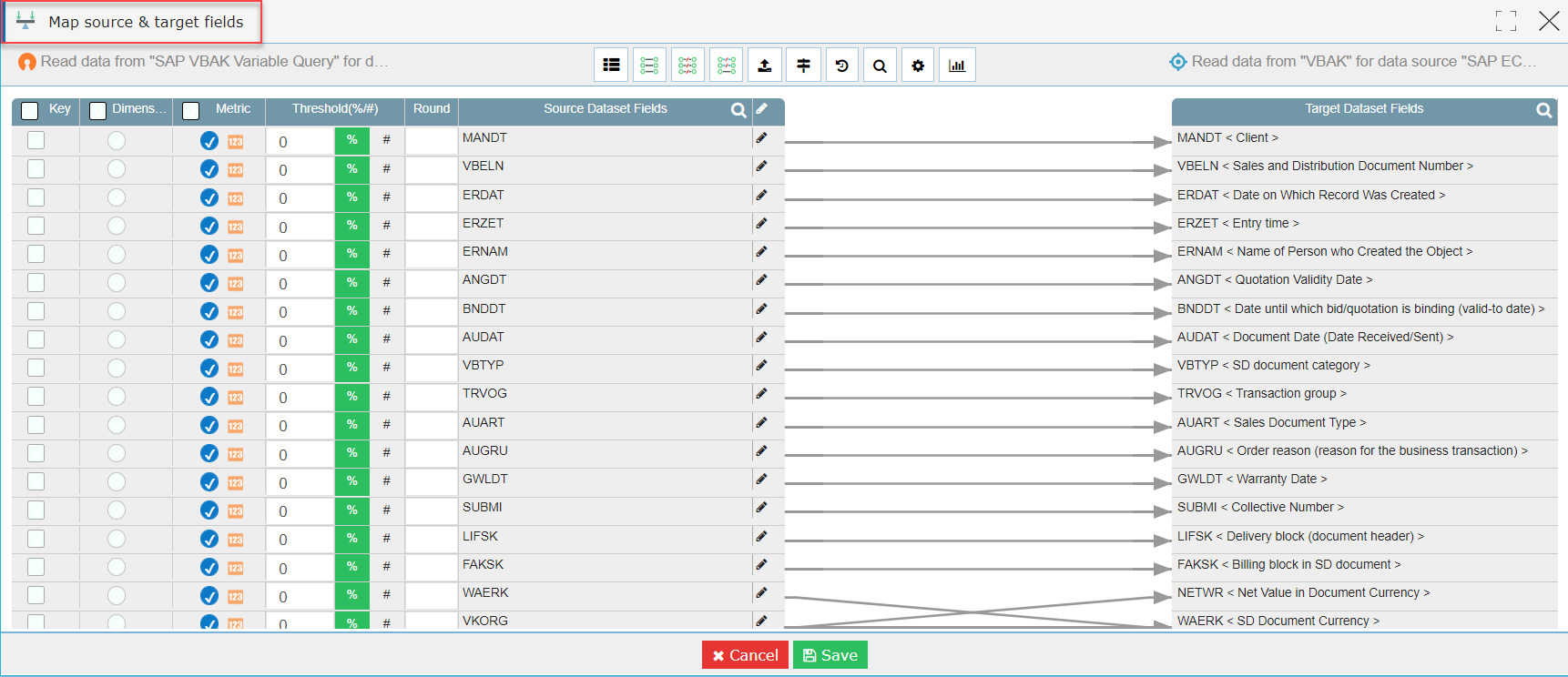

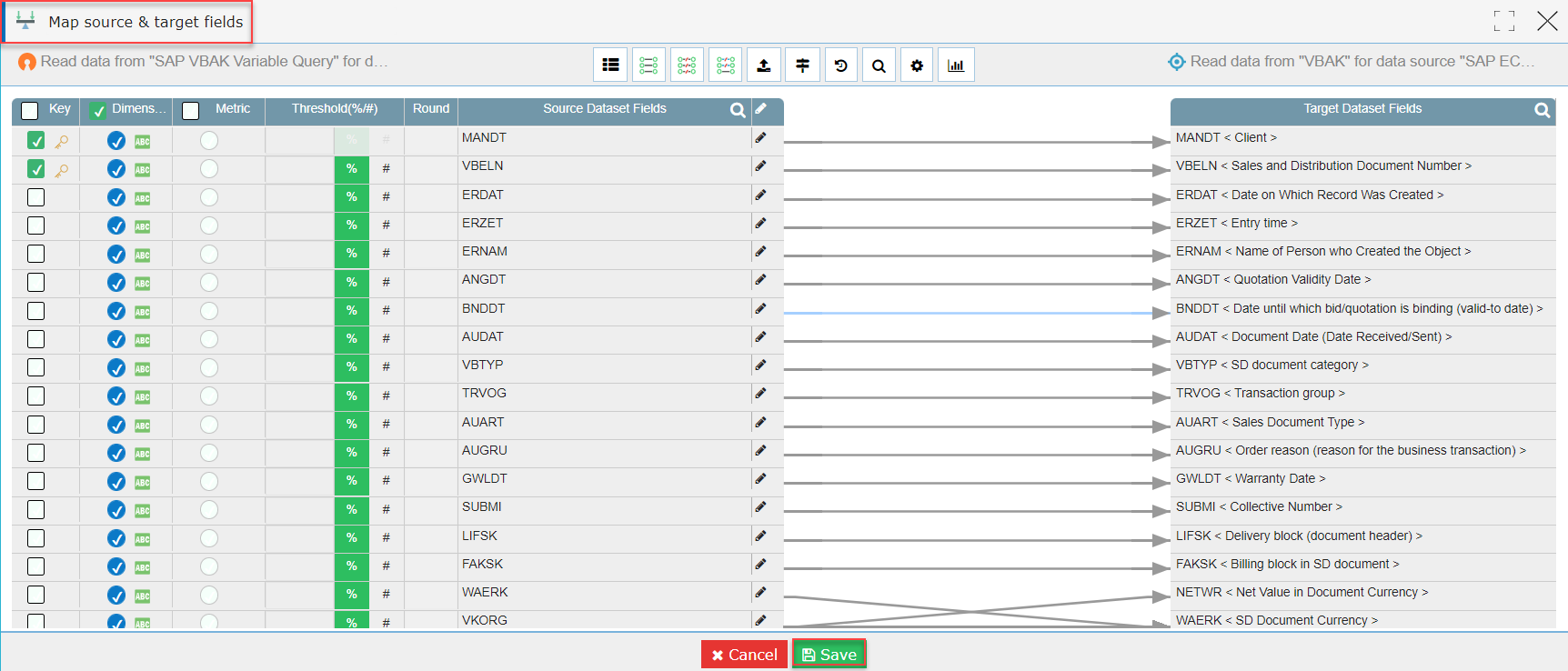

  • A Map source & target fields pop-up window is displayed.
  • Select the required keys and click on Save.
  • A Confirm action pop-up window is displayed.
  • Click the Verified button to save the Map source & target fields widget.

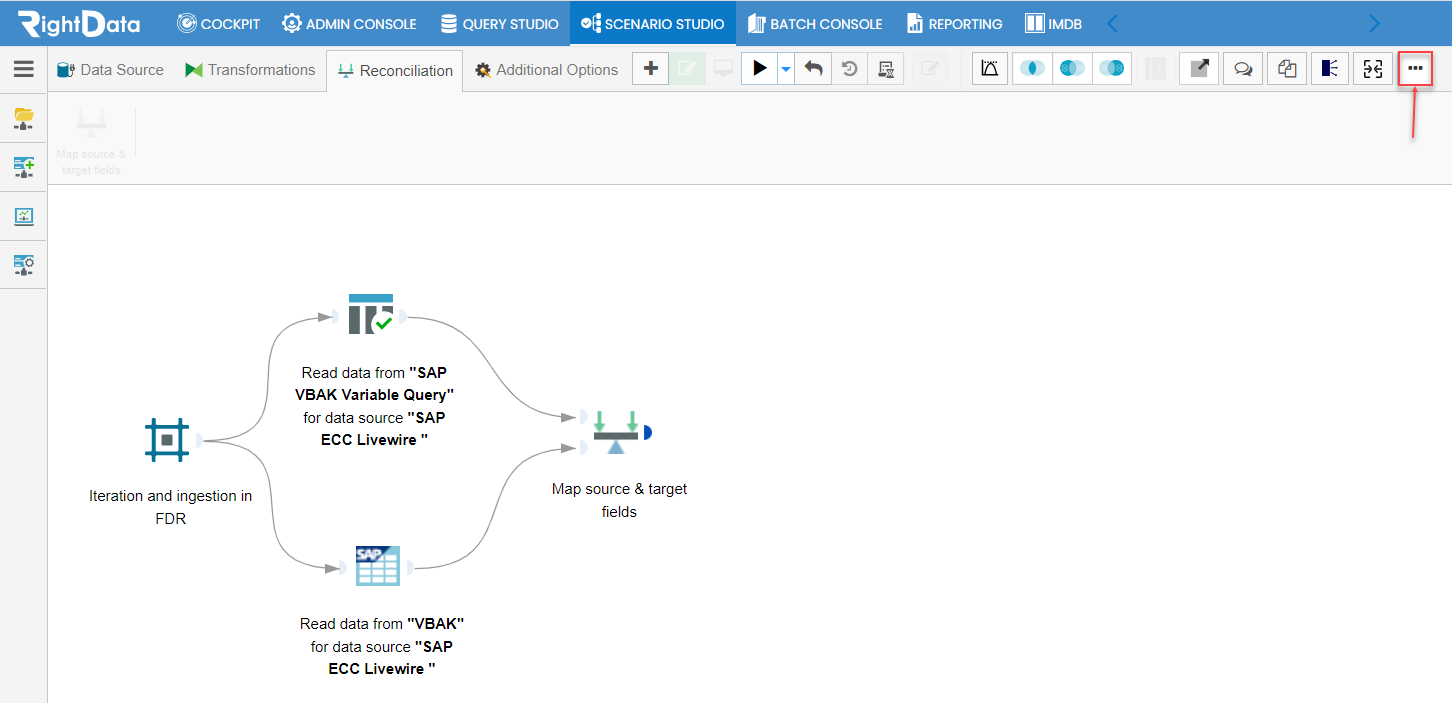

  • Click on horizontal ellipses icon.

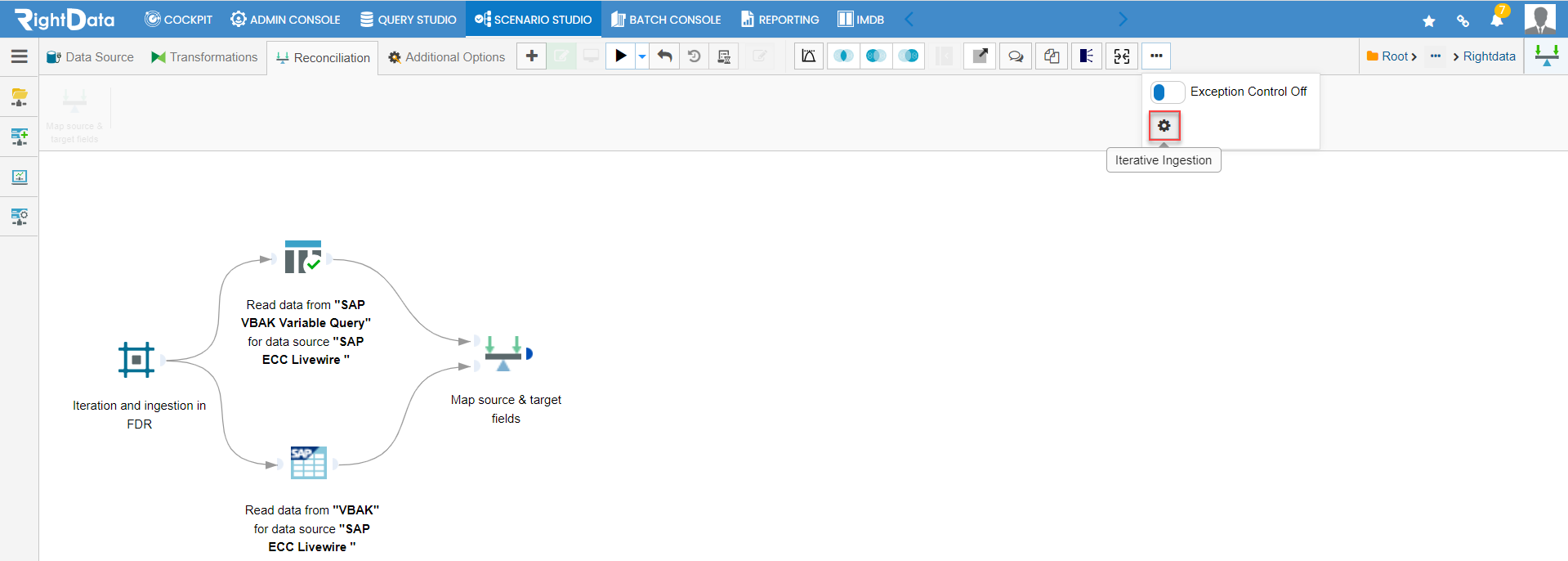

  • Click on Iterative Ingestion icon.

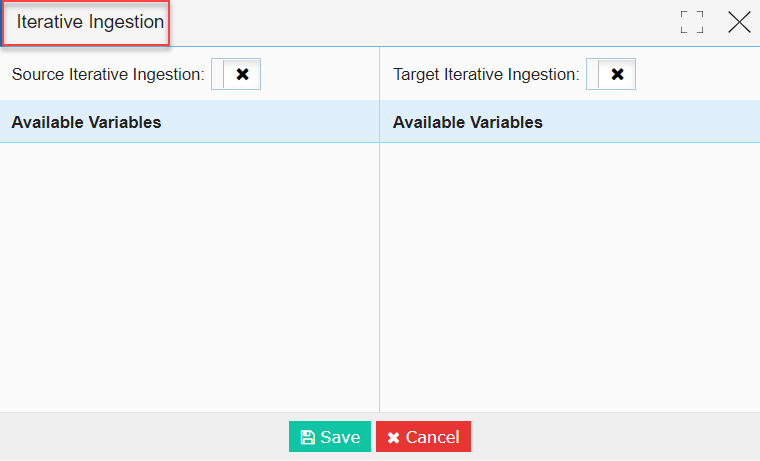

  • An Iterative Ingestion pop-up window is displayed.

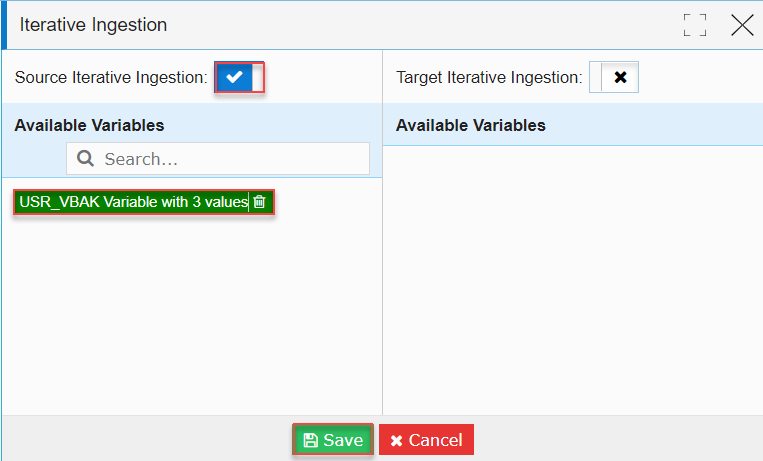

  • Enable Source Iterative Ingestion toggle to display the Available Variables.
  • Select USR_VBAK VARIABLE with 3 values.
  • Click on Save to save the iterative ingestion.

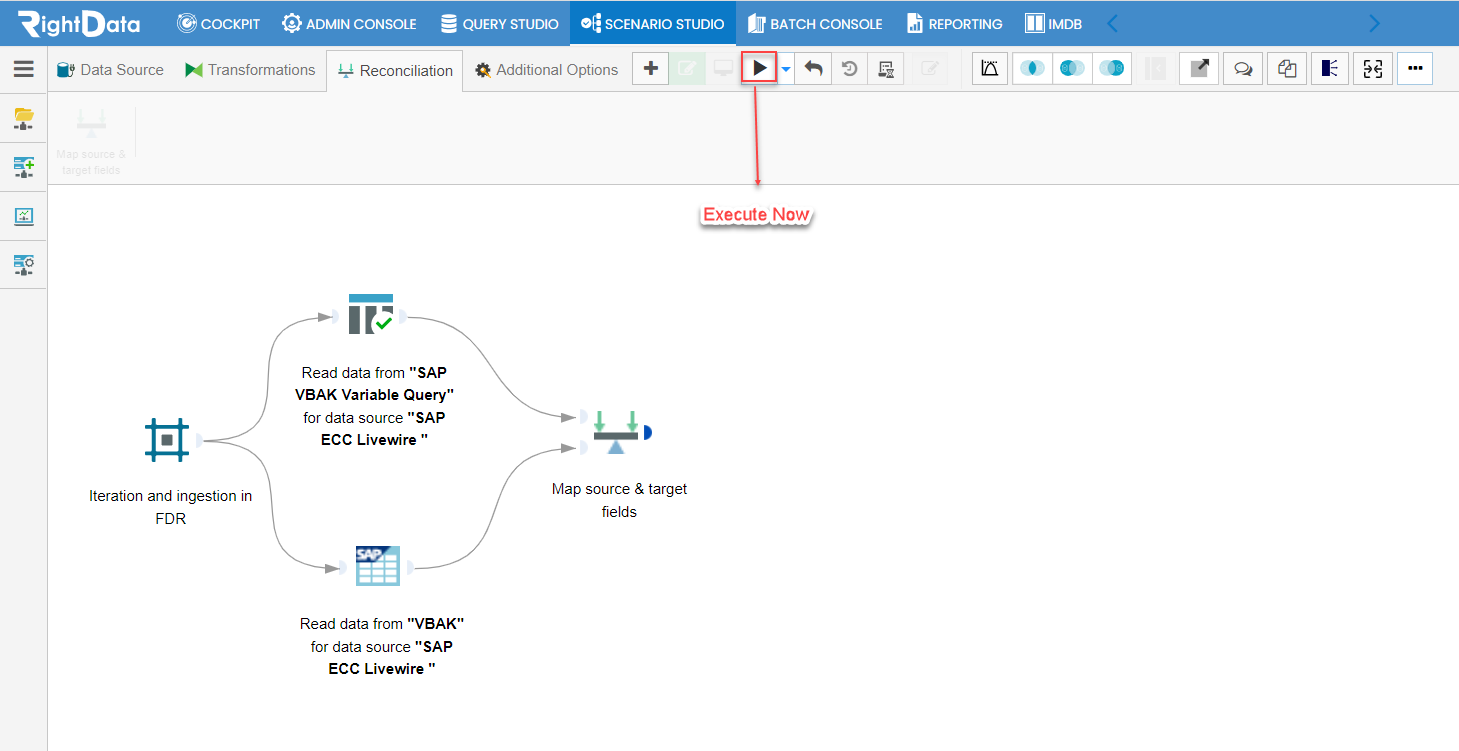

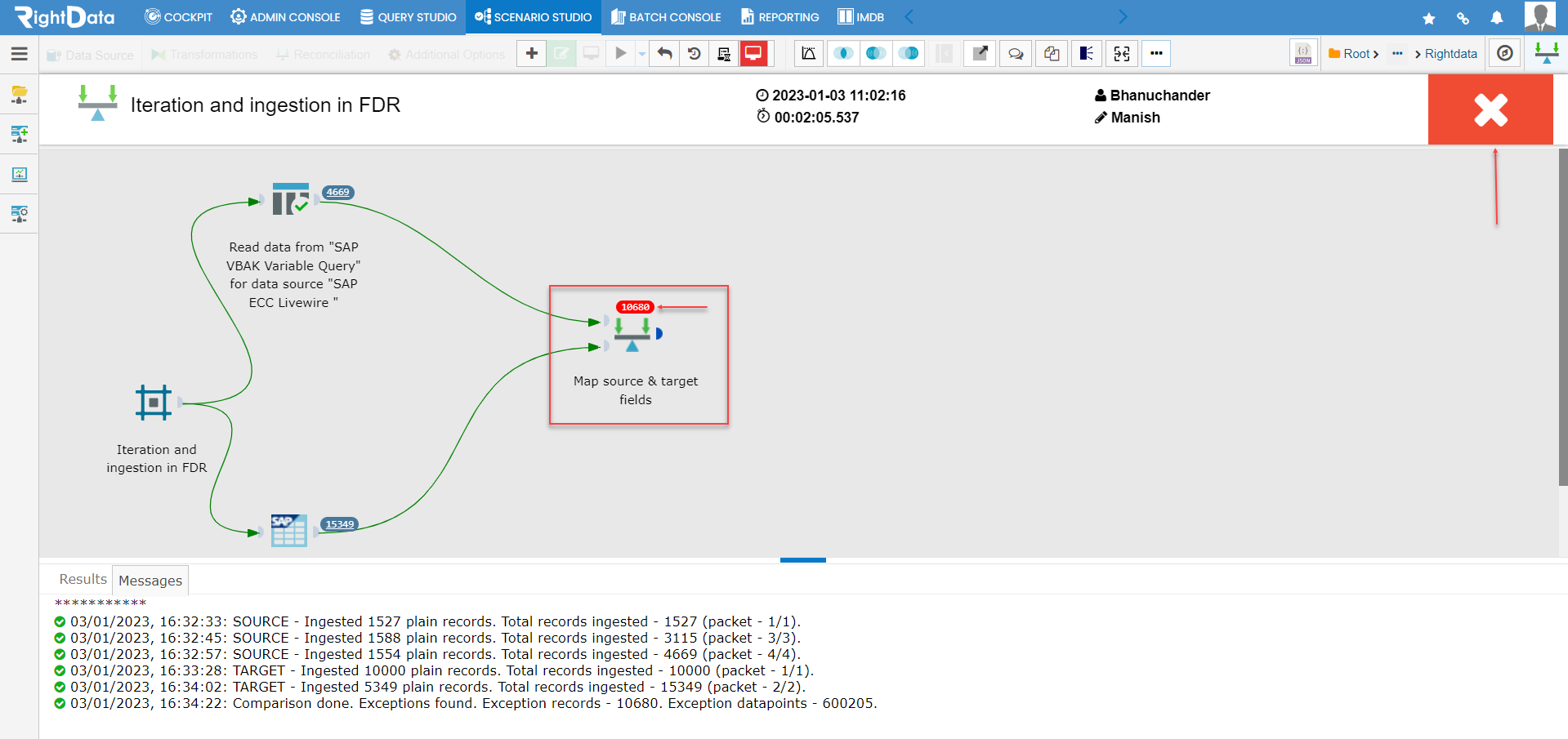

  • Click the Execute Now icon to run the FDR scenario.
  • Here the FDR is failed and it loads exceptions.

Note: Here the iteration and ingestion process take place in the background.
